SCHNEIDER ELECTRIC LC1D09B7 Contactor IEC 24VAC 3P 9A | AG6PMU 3DY19

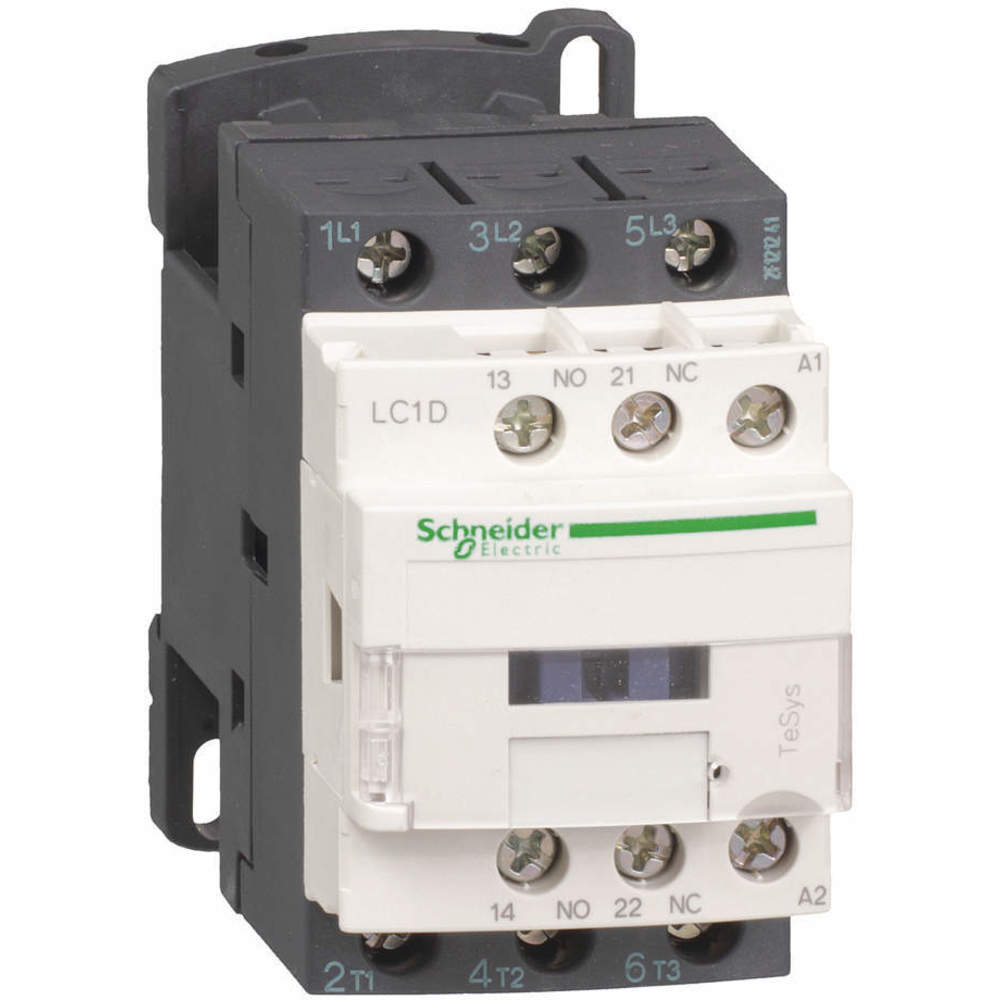

SCHNEIDER ELECTRIC LC1D09B7 Contactor IEC 24VAC 3P 9A

Item: AG6PMUModel: LC1D09B7Cross Ref: 3DY19
7 In Stock

Ships within 2 days via

€78.85
10.00% off
€70.97 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Contactor
Action Type Non Reversing
Application Motor Control, Resistive Load
Auxiliary Contacts Included 1NO/1NC
Coil Volts 24V AC
Contactor Style IEC
Contactor Type IEC
Depth 3.38" , 3.39"
Electrical Operating Durability 2000000, 600000
Embedded Surge Suppressor No
Enclosure Nema Rating No Enclosure
Enclosure Type Open
Features Without Built-In Suppressor Module
Frequency 50/60 Hz
Full Load Amps-inductive 9A
Full Load Amps-resistive 20A
Full Load Current - Resistive 20A
Height 3.03"
Horsepower @ Single Phase - 240v Ac 1 hp
Horsepower @ Three Phase (600 Vac) 7 1/2 hp
Horsepower @ Three Phase - 208v Ac 2 hp
Horsepower @ Three Phase - 480v Ac 5 hp
Hp @ 1 Phase - 230v 1 hp
Hp @ 1 Phase - 240v 1 hp
Hp @ 3 Phase - 208v 2 hp
Hp @ 3 Phase - 230v 2 hp
Hp @ 3 Phase - 240v 2 hp
Hp @ 3 Phase - 480v 5 hp
Hp @ 3 Phase - 575v 7 1/2 hp
Impulse Withstand Voltage 6 kV
Includes Auxiliary Contacts Yes
Includes Protective Cover Yes
Inrush Va 70 VA
Integrated Surge Suppression No
Ip Rating IP20
Main Power Pole Contact Form 3NO
Maximum Operating Temperature 140°F
Maximum Voltage Rating 690V AC
Mechanical Operating Durability 15000000
Minimum Operating Temperature -40°F
Mounts On Plate, Rail
Nominal Coil Voltage @ 60hz 24V AC
Non-overlap Time 1.5 ms
Number Of Auxillary Contacts 2
Number Of Normally Open Main Contacts 3
Number Of Poles 3
Overall Depth 3.39"
Overall Height 3.03"
Overall Width 1.77"
Phase Three
Product Datasheet schneider-electric-lc1d09b7.pdf
Product Or Component Type Contactor
Protective Cover With
Resistance Properties Fire Resistant, Insulation Resistant
Reversible No
Reversing Capability Non-reversing
Series Tesys Deca
Terminal Connection Type Screw Clamp Terminals
Tightening Torque 1.7 N-m
Width 1.77"
Wire Termination Type Screw Clamp

Shipping Info:

Ship weight (kg) 0.36
Ship height (cm)7.7
Ship length (cm)8.61
Ship width (cm)4.5
HS code8536490065
Country of OriginID

Documentation:

Datasheet

Product Variants

ProductModelNominal Coil Voltage @ 60hzIntegrated Surge SuppressionHeightHp @ 3 Phase - 240vHp @ 3 Phase - 480vHp @ 3 Phase - 575vHp @ 3 Phase - 208vCoil VoltsPrice
SCHNEIDER ELECTRIC LC1D80B7 Contactor IEC 24VAC 3P 80A | AG6PLH 3DB24 LC1D80B724V ACNo5"30 hp60 hp60 hp30 hp24V AC€770.47
SCHNEIDER ELECTRIC LC1D80G7 Contactor IEC 120VAC 3P 80A | AG6PLJ 3DB25 LC1D80G7120V ACNo5"30 hp60 hp60 hp30 hp120V AC€459.34
SCHNEIDER ELECTRIC LC1D80L6 Contactor IEC 208VAC 3P 80A | AG6PLK 3DB26 LC1D80L6200V ACNo5"30 hp60 hp60 hp30 hp208V AC€770.47
SCHNEIDER ELECTRIC LC1D80U7 Contactor IEC 240VAC 3P 80A | AG6PLL 3DB27 LC1D80U7240V ACNo5"30 hp60 hp60 hp30 hp240V AC€770.47
SCHNEIDER ELECTRIC LC1D09G7 Contactor IEC 120VAC 3P 9A | AG6PMV 3DY20 LC1D09G7120V ACNo3.03"2 hp5 hp7 1/2 hp2 hp120V AC€78.85
SCHNEIDER ELECTRIC LC1D09LE7 Contactor IEC 208VAC 3P 9A | AG6PMW 3DY21 LC1D09LE7208V ACNo3.03"2 hp5 hp7 1/2 hp2 hp208V AC€94.20
SCHNEIDER ELECTRIC LC1D09U7 Contactor IEC 240VAC 3P 9A | AG6PMX 3DY22 LC1D09U7240V ACNo3.03"2 hp5 hp7 1/2 hp2 hp240V AC€94.20
