SCHNEIDER ELECTRIC GV2P14 Manual Motor Starter Knob 6 to 10A 3P
Item: AH2PQTModel: GV2P14Cross Ref: 2MNJ8
7 In Stock
Ships within 2 days via
10.00% off
€182.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Manual Motor Starter |
| Depth | 3.83" |
| Electrical Operating Durability | 100000 |
| Features | Phase Loss Sensitivity |
| Frequency | 50/60 Hz |
| Height | 3 1/2" |
| Horsepower @ Three Phase - 208v Ac | 2 hp |
| Horsepower @ Three Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 480v Ac | 5 hp |
| Hp @ 1 Phase - 120v | 1/2 hp |
| Hp @ 1 Phase - 230v | 1 1/2 hp |
| Hp @ 3 Phase - 208v | 2 hp |
| Hp @ 3 Phase - 460-575v | 5/7.5 |
| Hp @ 3 Phase - 575v | 7 1/2 hp |
| Hp @ Single Phase - 240v Ac | 1 1/2 hp |
| Hp @ Three Phase - 600v Ac | 7 1/2 hp |
| Includes Pilot Light | No |
| Ip Rating | IP20 |
| Max Current (ac) | 10A |
| Max. Overload Relay Current Setting | 10A |
| Max. Voltage | 600V AC |
| Maximum Operating Temperature | 140°F |
| Mechanical Operating Durability | 100000 |
| Minimum Operating Temperature | -4°F |
| Minimum Overload Relay Current Setting | 6A |
| Nema Enclosure Rating | No Enclosure |
| Number Of Poles | 3 |
| Operator | Rotary Knob |
| Operator | Selector Switch |
| Overall Depth | 3.82" |
| Overall Height | 3 1/2" |
| Overall Width | 1.77" |
| Overload Protection Type | Thermal |
| Overload Relay Amp Setting | 6-10A |
| Phase | Three |
| Phase Loss Sensitivity | Yes |
| Pilot Light | Yes |
| Product Datasheet | schneider-electric-gv2p14.pdf |
| Resistance Properties | Fire Resistant |
| Reversing Capability | Non-reversing |
| Series | Tesys Deca |
| Starter Style | IEC |
| Status Indicator | LED Indicator |
| Thermal Units Required | None (Starter Includes Integrated Thermal Units) |
| Trip Class | Class 10 |
| Width | 1 3/4" |
| Wire Termination Type | Screw Clamps |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 9.7 |
| Ship width (cm) | 4.5 |
| Country of Origin | TH |
Product Details:
- Enclosure NEMA Rating : No Enclosure
- HP @ 3 Phase - 240V : 3
- Phase Loss Sensitivity : No
- Special Features: Reliable Overload Protection
Documentation:
Product Variants
| Model | Amps Rating | Height | Depth | Pilot Light | Overload Relay Amp Setting | Operator | Overall Depth | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

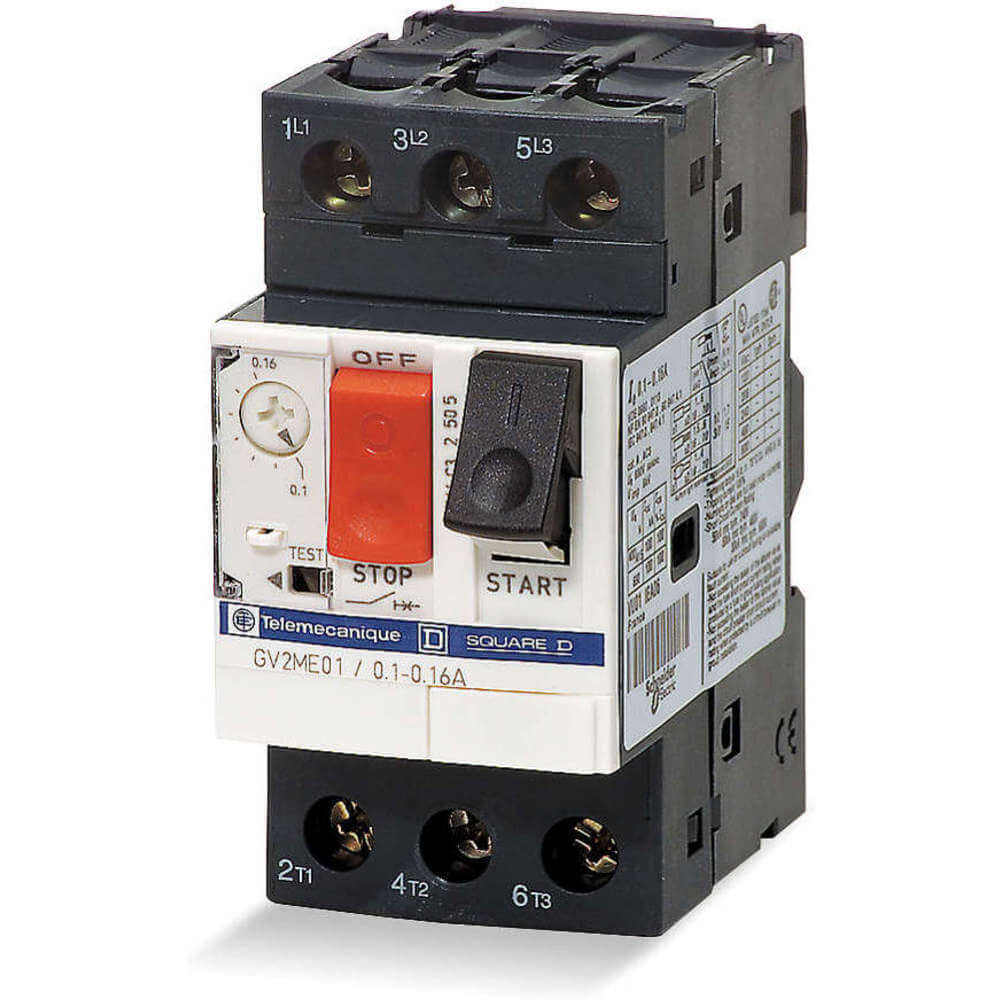

| GV2ME01 | 48-65A | 3 1/2" | 3.03" | Yes | 0.1-0.16A | Push Button | 3.09" | 3 1/2" | €115.65 | |
| GV2ME02 | 60-100A | 3 1/2" | 3.03" | No | 0.16-0.25A | Push Button | 3.09" | 3 1/2" | €122.58 | |
| GV2ME03 | 0.4A | 3 1/2" | 2 3/5" | Yes | 0.25-0.4A | Push Button | 3.09" | 3 1/2" | €130.17 | |
| GV2ME04 | 0.63A | 3 1/2" | 2 3/5" | No | 0.4-0.63A | Push Button | 3.09" | 3 1/2" | €115.65 | |
| GV2ME05 | 1A | 3 1/2" | 2 3/5" | Yes | 0.63-1A | Push Button | 3.09" | 3 1/2" | €125.46 | |
| GV2ME06 | 1.6A | 3 1/2" | 2 3/5" | No | 1-1.6A | Push Button | 3.09" | 3 1/2" | €125.46 | |
| GV2ME07 | 2.5A | 3 1/2" | 2 3/5" | Yes | 1.6-2.5A | Push Button | 3.09" | 3 1/2" | €125.46 |
