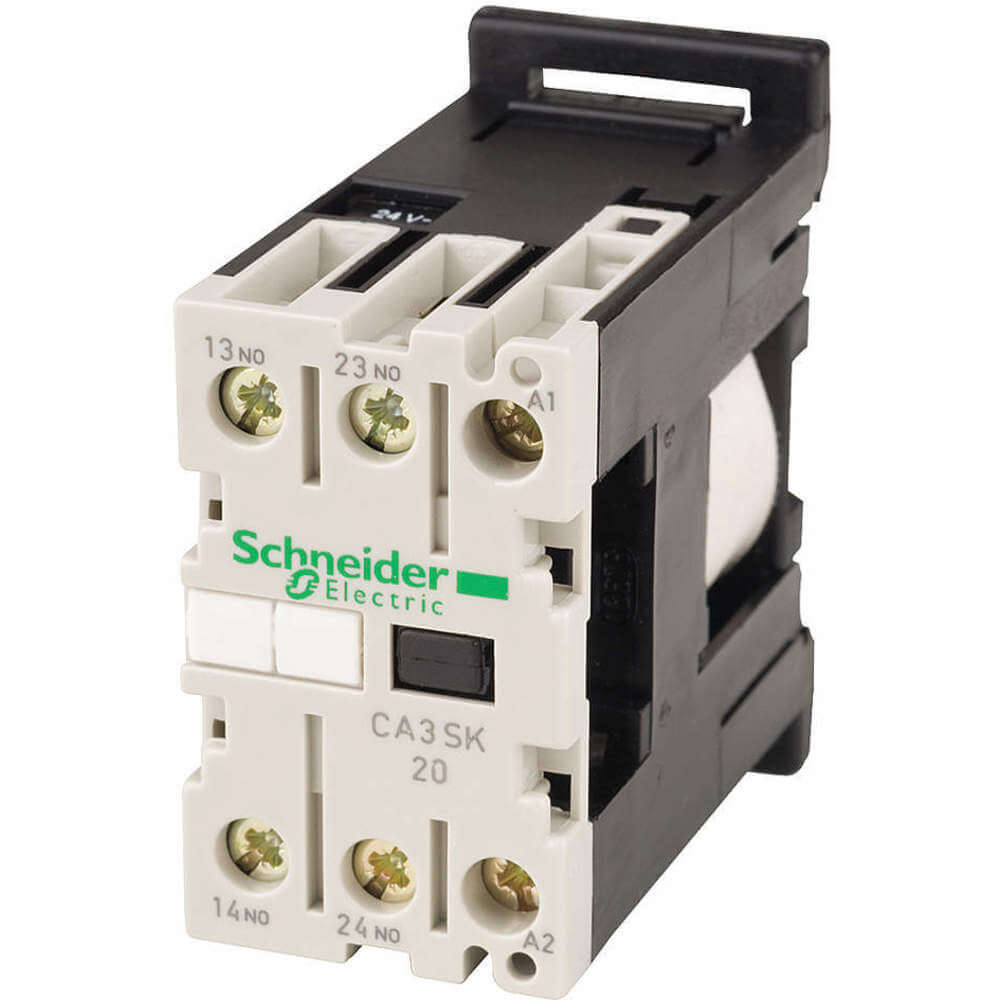

SCHNEIDER ELECTRIC CA3SK20BD IEC Control Relay 2NO 24VDC 10A
Item: AH2QLQModel: CA3SK20BDCross Ref: 2VLK8
7 In Stock
Ships within 2 days via
13.00% off
€91.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Control Relay |
| Amps | 10A |
| Body Depth | 2.19" |
| Body Depth-relay | 2 6/25" |
| Body Height | 2.2" |
| Body Width | 1.06" |
| Body Width-relay | 1.77" |
| Coil Rating | 3VA Inrush, 3VA Sealed |
| Coil Voltage | 24V DC |
| Contact Form | 2NO |
| Contact Material | Silver Nickel |
| Contact Rating (ac) | 10A @ 120/240/480/600V |
| Contact Rating (dc) | 2A @ 125/250/600V |
| Contactor Application | Control Circuit |
| Dc Contact Rating | 2A @ 125/250/600V |
| Depth | 55.5 mm |
| Electrical Connection | Screw Clamp |
| Electrical Connection Type | Screw |
| Features | Finger Safe |
| Frequency | Not Applicable |
| Height | 56 mm |
| Input Voltage | 24V DC |
| Ip Rating | IP2X |
| Max. Operating Temp. | 122°F |
| Min. Operating Temp. | -4°F |
| Mounting | DIN Rail, Panel |
| No. Of Pins | 6 |
| No. Of Pins-relay | 6 |
| No. Of Terminals | 6 |
| Overall Height | 2 1/5" |
| Overall Height-relay | 2 7/25" |
| Power Consumption | 2.2 W |
| Power Consumption-relay | 3 VA |
| Product Datasheet | schneider-electric-ca3sk20bd.pdf |
| Relay Frame Size | Standard |
| Relay Mounting Style | DIN Rail |
| Relay Style | IEC |
| Resistive Contact Amp Rating | 10A |
| Response Time | 4 ms to 6 ms (Coil De-Energisation And No Opening), 8 ms to 12 ms (Coil Energisation And No Closing) |
| Series | TESYS SK MINI CONTROL RELAYS Series |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 5.56 |
| Ship width (cm) | 2.69 |
| Country of Origin | CZ |
Documentation:
Product Variants
| Model | Coil Voltage | Frequency | Height | Overall Height | Body Width | Body Depth | Body Height | Body Width-relay | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CA2KN22B7 | 24V AC | 50/60 Hz | 58 mm | 2 7/25" | 1.77" | 2 6/25" | 2 7/25" | 1.77" | €71.17 | |
| CA2KN22G7 | 120V AC | 50/60 Hz | 58 mm | 2 7/25" | 1.77" | 2 6/25" | 2 7/25" | 1.77" | €69.85 | |
| CA2KN22T7 | 480V AC | 50/60 Hz | 58 mm | 2 7/25" | 1.77" | 2 6/25" | 2 7/25" | 1.77" | €69.85 | |
| CA2KN22U7 | 240V AC | 50/60 Hz | 58 mm | 2 7/25" | 1.77" | 2 6/25" | 2 7/25" | 1.77" | €72.39 | |
| CA2KN31B7 | 24V AC | 50/60 Hz | 58 mm | 2 7/25" | 1.77" | 2 6/25" | 2 7/25" | 1.77" | €72.65 | |
| CA2KN31G7 | 120V AC | 50/60 Hz | 58 mm | 2 7/25" | 1.77" | 2 6/25" | 2 7/25" | 1.77" | €72.65 | |
| CA2KN31U7 | 240V AC | 50/60 Hz | 58 mm | 2 7/25" | 1.77" | 2 6/25" | 2 7/25" | 1.77" | €72.65 |
