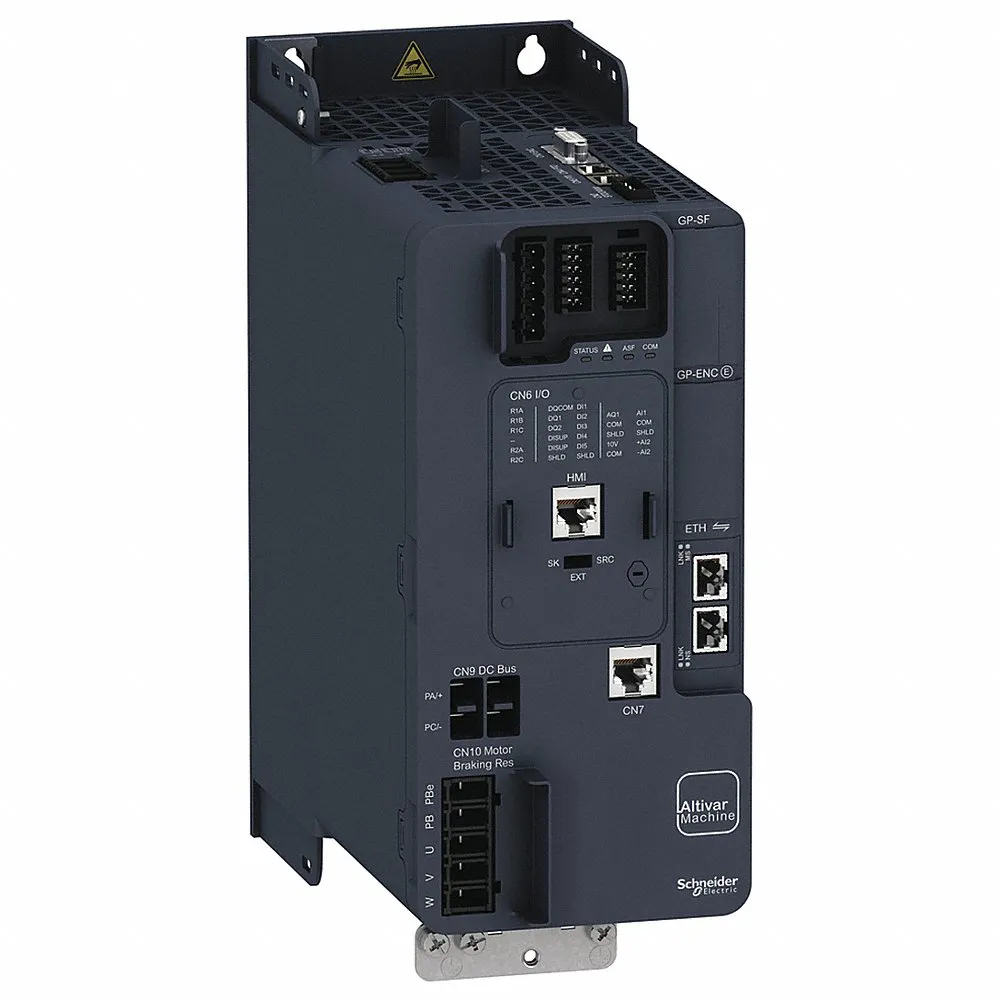

SCHNEIDER ELECTRIC ATV340U75N4E Variable Frequency Drive, 480VAC, 15 hp Max Output Power, NEMA 1, No Bypass
Item: CU2EURModel: ATV340U75N4ECross Ref: 55WR98
7 In Stock
Ships within 2 days via
13.00% off
€2,211.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Variable Frequency Drive |
| Adjustable Acceleration Time | 0.01 sec. to 9999 sec. |
| Adjustable Deceleration Time | 0.01 sec. to 9999 sec. |
| Application | Industrial Process And Utilities |
| Brake Chopper Included | Yes |
| Bypass Included | No |
| Color | Black |
| Control Method | Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard |
| Depth | 9.21" |
| Digital Readout | No |
| Display Type | None |
| Displays | None |
| Dynamic Braking | No |
| Enclosure | Open |
| Enclosure Rating | NEMA 1 |
| Enclosure Type | Open |
| Ethernet Port Included | Yes |
| Height | 10.63" |
| Input Frequency | 50/60 Hz |
| Input Phase | 3 |
| Input Phase Ac | 3 |
| Input Type | Analog, Discrete |
| Input Voltage | 380-480V AC , 480V AC |
| Key Pad Lockout | None |
| Max. Output Amps | 24A |
| Max. Output Power | 15 hp |
| No. Of Inputs | 2 Analog, 1 Discrete, 3 Relay , 6 |
| No. Of Outputs | (3) Analog, (8) Discrete |
| Output Frequency | 0.1-599 Hz |
| Output Frequency Range | 0.1-599 Hz |
| Output Phase | 3 |
| Output Power | 15 hp |
| Output Type | Analog, Discrete |
| Output Voltage | 323-528V AC , 480V AC |
| Overall Depth | 9 1/4" |
| Overall Height | 10 5/8" |
| Overall Width | 4 3/8" |
| Product Datasheet | schneider-electric-atv340u75n4e.pdf |
| Protection | Break On The Control Circuit, Dc Bus Overvoltage, Exceeding Limit Speed, Input Supply Loss, Line Supply Overvoltage, Line Supply Undervoltage, Motor Phase Loss, Output Overcurrent Between Motor Phase And Earth, Output Overcurrent Between Motor Phases, Overcurrent, Overheating, Safe Torque Off, Short Circuit Between Motor Phase And Earth, Short Circuit Between Motor Phases, Thermal Protection |
| Series | Altivar Machine ATV340 Series |
| Start/stop Control | Programmable |
| Style | Ethernet |
| Torque Application | Constant Torque, Variable Torque |
| Width | 4.33" |
| With Bypass/no Bypass | No Bypass |
| With Line Contactor/no Line Contactor | With Line Contactor |
Shipping Info:
| Ship weight (kg) | 3.77 |
| Ship height (cm) | 26.99 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 11.11 |
| Country of Origin | ID |
Documentation:
Product Variants
| Model | Input Voltage | Height | Depth | Max. Output Amps | Input Phase | Output Frequency | Output Voltage | Input Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN015G1S-4U | 460V AC | 10 6/25" | 7 17/25" | 23A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €1,987.19 | |
| FRN020G1S-4U | 480V AC | 10 6/25" | 7 17/25" | 24.5A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €2,029.51 | |
| FRN025G1S-4U | 460V AC | 15 3/4" | 7 17/25" | 32A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €2,701.48 | |
| FRN030G1S-4U | 460V AC | 15 3/4" | 7 17/25" | 45A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €3,074.13 | |
| FRN040G1S-4U | - | 15 3/4" | 7 17/25" | 49A | 1, 3 | 0-500 Hz | 380-480V AC | 120 Hz | €3,742.54 | |
| FRN050F1S-2U | - | 21.85" | 10 1/25" | 143A | 3 | 0-120 Hz | 200-240V AC | 120 Hz | €6,675.75 | |
| FRN050G1S-4U | 480V AC | 21.85" | 10 1/25" | 75A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €4,064.45 |
