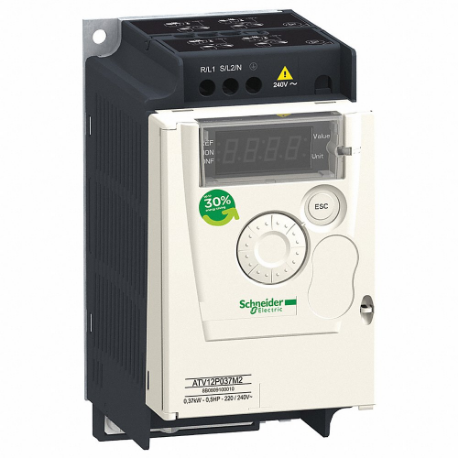

SCHNEIDER ELECTRIC ATV12P037M2 Variable Frequency Drive, 200 to 240VAC, 11/20 hp Max Output Power, NEMA 1
Item: CU2ENLModel: ATV12P037M2Cross Ref: 55WP16
7 In Stock
Ships within 2 days via
13.00% off
€316.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Variable Frequency Drive |
| Adjustable Acceleration Time | 0 sec. to 999.9 sec. |
| Adjustable Deceleration Time | 0 sec. to 999.9 sec. |
| Application | Commercial Equipment Mixer, Commercial Equipment Other Application, Textile Ironing |
| Brake Chopper Included | No |
| Bypass Included | No |
| Color | Black |
| Depth | 4.02" |
| Digital Readout | Yes |
| Display Type | LED |
| Displays | 4-Digit Led Display |
| Dynamic Braking | No |
| Enclosure | Open |
| Enclosure Rating | NEMA 1 |
| Enclosure Type | Open |
| Ethernet Port Included | No |
| For Use With | Motor, Single-Phase Supply Voltage 200¿240 V 50/60 Hz |
| Height | 5.63" |
| Input Frequency | 50/60 Hz |
| Input Phase | 1 |
| Input Phase Ac | 1 |
| Input Type | Analog, Discrete |
| Input Voltage | 170-264V AC , 200-240V AC |
| Max. Hp | 1/2 hp |
| Max. Output Amps | 2.4A , 3.6A |
| Max. Output Power | 11/20 hp |
| No. Of Digits | 4 |
| No. Of Inputs | 2 Analog, 4 Discrete , 6 |
| No. Of Outputs | (1) Analog, (2) Discrete |
| Output Frequency | 0.5-400 Hz |
| Output Frequency Range | 0.5-400 Hz |
| Output Phase | 3 |
| Output Power | 11/20 hp |
| Output Type | Analog, Discrete |
| Output Voltage | 200-240V AC |
| Overall Depth | 4 1/8" |
| Overall Height | 5 5/8" |
| Overall Width | 2 7/8" |
| Product Datasheet | schneider-electric-atv12p037m2.pdf |
| Protection | Against Input Phase Loss In Three-Phase, Line Supply Overvoltage, Line Supply Undervoltage, Overcurrent Between Output Phases And Earth, Overheating Protection, Short-Circuit Between Motor Phases, Thermal Motor Protection Via The Drive By Continuous Calculation Of I2T |
| Series | Altivar 12 Series |
| Start/stop Control | Programmable |
| Starting Torque | 150% to 170% |
| Style | Base Plate |
| Torque Application | Constant Torque, Variable Torque |
| With Bypass/no Bypass | No Bypass |
| With Line Contactor/no Line Contactor | No Line Contactor |
Shipping Info:
| Ship weight (kg) | 0.93 |
| Ship height (cm) | 14.29 |
| Ship length (cm) | 10.48 |
| Ship width (cm) | 7.3 |
| Country of Origin | ID |
Documentation:
Product Variants
| Model | Input Voltage | Height | Depth | Max. Output Amps | Input Phase | Output Frequency | Output Voltage | Input Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN015G1S-4U | 460V AC | 10 6/25" | 7 17/25" | 23A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €1,987.19 | |
| FRN020G1S-4U | 480V AC | 10 6/25" | 7 17/25" | 24.5A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €2,029.51 | |
| FRN025G1S-4U | 460V AC | 15 3/4" | 7 17/25" | 32A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €2,701.48 | |
| FRN030G1S-4U | 460V AC | 15 3/4" | 7 17/25" | 45A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €3,074.13 | |
| FRN040G1S-4U | - | 15 3/4" | 7 17/25" | 49A | 1, 3 | 0-500 Hz | 380-480V AC | 120 Hz | €3,742.54 | |
| FRN050F1S-2U | - | 21.85" | 10 1/25" | 143A | 3 | 0-120 Hz | 200-240V AC | 120 Hz | €6,675.75 | |
| FRN050G1S-4U | 480V AC | 21.85" | 10 1/25" | 75A | 1, 3 | 0-500 Hz | 480V AC | 50/60 Hz | €4,064.45 |
