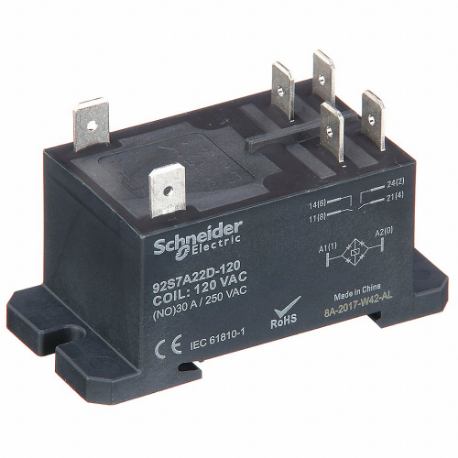

SCHNEIDER ELECTRIC 92S7A22D-120A Enclosed Power Relay, Din-Rail & Surface Mounted, 30 A Current Rating, 120VAC, Dpst-No
Get it by Thursday, Jul 2
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosed Power Relay |
| Ac Contact Rating | 3A @ 250/277V6A @ 250V10A @ 120V30A @ 250/277V96A @ 240V |
| Amps | 30A |
| Base Shape | Square |
| Body Depth | 1.18" , 2.7" |
| Body Height | 1.54" , 2.7" |
| Body Width | 1.33" |
| Coil Resistance | 4250 ohms |
| Coil Voltage | 120V AC |
| Contact Form | DPST, NO |
| Contact Rating (ac) | 3A @ 250/277V, 6A @ 250V, 10A @ 120V, 30A @ 250/277V, 96A @ 240V |
| Contact Rating (dc) | 3A @ 28V, 20A @ 28V, 25A @ 28V |
| Dc Contact Rating | 3A @ 28V, 20A @ 28V, 25A @ 28V |
| Dielectric Strength | 1500V AC Between Contacts, 2000V AC Between Poles, 4000V AC Between Coil And Contact |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Environmental Protection | Sealed |
| Features | Class F Coil Insulation, Sealed Construction |
| Flat Pin Width | 1/4" |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 3 hp |
| Mechanical Operating Durability | 5000000 |
| Mfr. Series | 92 Power Series |
| Motor Rating | Yes |
| No. Of Pins | 6 |
| No. Of Pins-relay | 6 |
| No. Of Pins/terminals | 6 |
| No. Of Poles | 2 |
| Operating Amps | 30A |
| Overall Depth | 1.54" |
| Overall Height | 1.49" |
| Power Consumption | 4.4 VA |
| Power Consumption-relay | 4 VA |
| Product Datasheet | schneider-electric-92s7a22d-120a.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | DIN Rail, Surface |
| Response Time | 25 ms |
| Sealing | Sealed |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 3 |
| Ship width (cm) | 3.38 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Electrical Connection Type | Coil Voltage | Socket Code | Electrical Operating Durability | Mechanical Operating Durability | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DPST, NO | No Test Button | DIN Rail, Surface | Tab | 24V AC | - | 100000 | 5000000 | €19.88 | |
| RPF2AF7 | - | - | - | - | 120V AC | - | - | - | €19.88 | |
| RPF2AP7 | DPST, NO | No Test Button | DIN Rail, Surface | Tab | 230V AC | - | 100000 | 5000000 | €19.88 | |
| RPF2BJD | DPDT | No Test Button | DIN Rail, Surface | Tab | 12V DC | - | 100000 | 5000000 | €19.59 | |
| RPF2BBD | DPDT | No Test Button | DIN Rail, Surface | Tab | 24V DC | - | 100000 | 5000000 | €19.59 | |
| RPF2BB7 | DPDT | No Test Button | DIN Rail, Surface | Tab | 24V AC | - | 100000 | 5000000 | €19.59 | |
| RPF2BF7 | DPDT | No Test Button | DIN Rail, Surface | Tab | 120V AC | - | 100000 | 5000000 | €19.59 |
