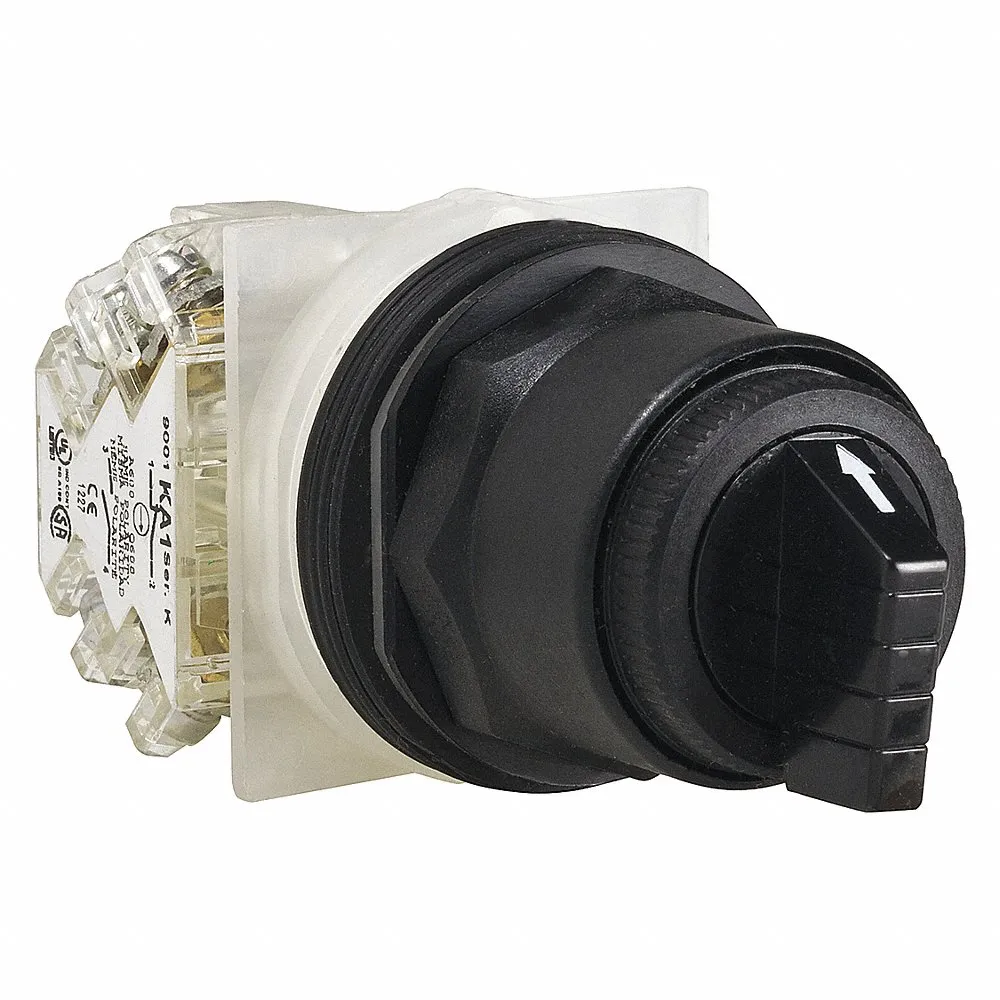

SCHNEIDER ELECTRIC 9001SKS49BH2 Non-Illuminated Selector Switch 30mm 3 Position Lever
Item: AH9WHAModel: 9001SKS49BH2Cross Ref: 45J175
7 In Stock
Ships within 2 days via
10.00% off
€255.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Select Switch |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Maintained/Maintained/Maintained |
| Action Type | Maintained/Maintained/Maintained |
| Basic Material | Plastic |
| Bezel Color | Chrome |
| Bezel Material | Plastic |
| Cam | J |
| Color | Black |
| Contact Block Material | Plastic |
| Contact Form | 2NO/2NC |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @125V |
| Device Presentation | Complete Product |
| Hazardous Location Specification | Not Rated |
| Ip Rating | IP66 |
| Key Removal | No Key |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 30 mm |
| Nema Contact Rating Designation | A600/Q600 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Positions | 3 |
| Operator Head Color | Black |
| Operator Head Material | Polycarbonate |
| Operator Illumination | Non Illuminated |
| Panel Mounting Hole Diameter | 30 mm |
| Series | 9001K Series |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Short Lever |
| Switch Operation @ Position A | OXOX |
| Switch Operation @ Position B | XOXO |
| Switch Operation @ Position C | OXXO |
| Switch Operation @ Position D | No Fourth Position |
| Type Of Operator | Lever |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 5.38 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 4.57 |
| Country of Origin | MX |
Product Details:
- Bezel Color : Chrome
Product Variants
| Product | Model | Number Of Positions | Contact Form | Ip Rating | Cam | Color | Basic Material | Bezel Material | Bezel Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9001KS11BH1 | 2 | SPDT | IP65 | E | Black | Metal | - | Black | €196.09 | |
|
9001KS11BH13 | 2 | 1NO, 1NC | IP66 | E | Black | Metal | Metal | Black | €206.50 | |
|
9001KS11BH2 | 2 | DPDT | IP65 | E | Black | Metal | Metal | Chrome | €274.32 | |
 |
9001KS43BH13 | 3 | 1NO, 1NC | IP66 | C | Black | Metal | Metal | Chrome | €216.54 | |
 |
9001KS11K3H2 | 2 | DPDT | - | E | Black | - | Die Cast Zinc | Chrome | €441.57 | |
|
9001KS42BH13 | 3 | SPDT | IP65 | - | Black | Metal | Metal | Chrome | €206.98 | |
 |
9001KS42BH2 | - | - | - | B | Black | Metal | Die Cast Zinc | Chrome | €264.53 |
