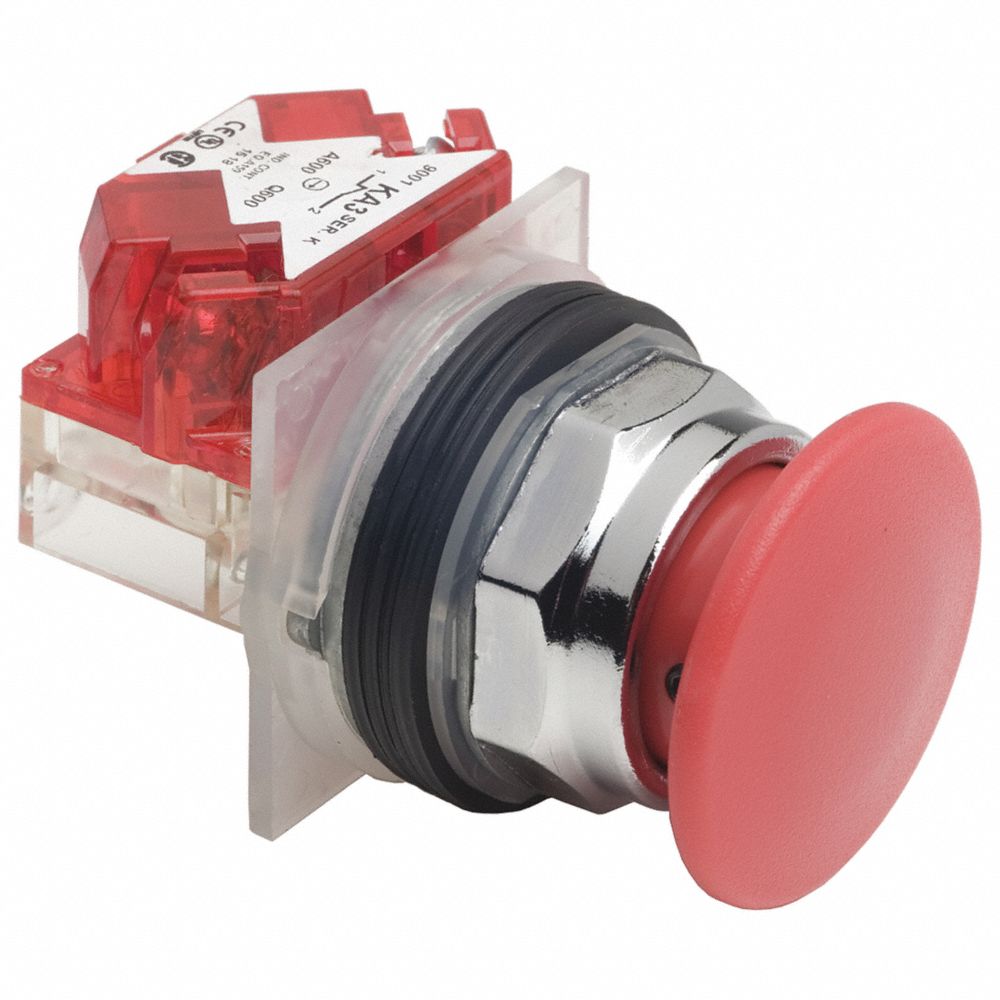

SCHNEIDER ELECTRIC 9001KR9R94H6 Push Button, 30mm Size
Get it by Tuesday, Sep 1
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€172.55 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Maintained |
| Bezel Finish | Chrome Plated |
| Bezel Material | Chrome |
| Contact Form | 1NC |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Display Qty | 1 |
| Features | Mercury Free |
| Head Material | Metal |
| Head/lens Color | Red |
| Ip Rating | IP20, IP65 |
| Legend | No Legend |
| Legend/background Color | No Legend |
| Maintained Action Release | Push/Pull |
| Max. Operating Temp. | 140°F |
| Max. Operator Voltage Rating | 600V AC |
| Min. Operating Temp. | -22°F |
| Mushroom Head Dia. | 41 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Panel Mounting Hole Dia. | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Series | 9001K Series |
| Terminal Connection | Screw Clamp |
| Type Of Operator | Push Pull |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Country of Origin | MX |
Product Variants
| Product | Model | Terminal Connection | Bezel Material | Head Material | Panel Mounting Hole Dia. | Color | Operator Material | Product Type | No. Of Operators | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB5AA61 | Screw Clamp | Plastic | Plastic | 22 mm | Green | Plastic | Push Button Operators | 1 | €46.74 | |
 |
9001KR1BH13 | Screw Clamp | Metal | Metal | 30 mm | Black | Metal | Push Button Operators | 1 | €134.65 | |
 |
XB5AT845 | Screw Clamp | Plastic | Plastic | 22 mm | Red | Plastic | Emergency Stop Push Buttons | 1 | €116.00 | |
 |
XB5AS9445 | Screw Clamp | Plastic | Plastic | 22 mm | Red | Plastic | Emergency Stop Push Buttons | 1 | €183.97 | |
 |
XB4BS8442 | Screw Clamp | Chrome | Metal | 22 mm | Red | Metal | Emergency Stop Push Buttons | 1 | €135.97 | |
 |
XB4BS8444 | Screw Clamp | Chrome | Metal | 22 mm | Red | Metal | Emergency Stop Push Buttons | 1 | €126.38 | |
 |
XB4BS9442 | Screw Clamp | Chrome | Metal | 22 mm | Red | Metal | Emergency Stop Push Buttons | 1 | €210.47 |
