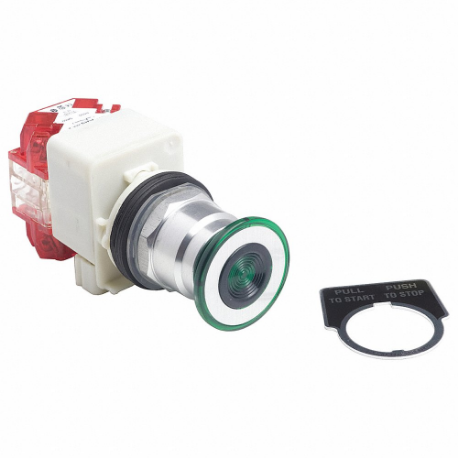

SCHNEIDER ELECTRIC 9001KR8P1GH25 Push Button, 30 mm Size, Green, 1Nc/1No/6, Guarded Button
Item: CU2CXHModel: 9001KR8P1GH25Cross Ref: 55WR18
7 In Stock
Ships within 2 days via
10.00% off
€434.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button |
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
| Action | Momentary |
| Bezel Material | Metal |
| Cap/operator Or Lens Colour | Green |
| Color | Green |
| Dc Contact Rating | 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V |
| Device Presentation | Complete Product |
| Display Qty | 1 |
| Features | Finger-Safe Terminals, Self-Grounding |
| Head Material | Plastic |
| Head/lens Color | Green |
| Ip Rating | IP20, IP65 |
| Lamp Bulb Type | Incandescent |
| Lamp Module Type | Transformer |
| Lamp Voltage - Maximum | 120V AC |
| Legend | Pull To Start, Push To Stop |
| Legend Background Color | Black |
| Legend Color | Gray |
| Legend/background Color | Black, Gray |
| Manufacturer Warranty Length | 18 Months |
| Mounting Diameter | 30 mm |
| Mushroom Head Diameter | 41 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6 |
| No. Of Contact Form | 2 , NC/NC |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | -22°F |
| Operator Illumination | Illuminated |
| Operator Material | Plastic |
| Operator Voltage Rating - Maximum | 600V AC |
| Panel Mounting Hole Diameter | 30 mm |
| Product Datasheet | schneider-electric-9001kr8p1gh25.pdf |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Series | 9001K Series |
| Terminal Connection | Screw Clamp |
| Type Of Operator | Guarded Button |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Ip Rating | Legend | Contact Form | Type Of Operator | Terminal Connection | Number Of Operators | Bezel Material | Legend/background Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XB5AA61 | IP66, IP67, IP69, IP69K | No Legend | 1NO | Booted Button | Screw Clamp | 1 | Plastic | - | €70.70 | |
 |
XB5AT845 | IP66, IP67, IP69, IP69K | No Legend | 1NO/1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €171.77 | |
 |
XB5AS9445 | IP66, IP67, IP69, IP69K | No Legend | 1NO/1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €272.41 | |
 |
XB4BS8442 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Chrome | - | €201.31 | |
 |
XB4BS8444 | IP66, IP67, IP69, IP69K | No Legend | 2NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Chrome | - | €187.11 | |
 |
XB5AS8442 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 40 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €218.29 | |
 |
XB5AT842 | IP66, IP67, IP69, IP69K | No Legend | 1NC | 22 mm Dia. Mushroom | Screw Clamp | 1 | Plastic | - | €134.81 |
