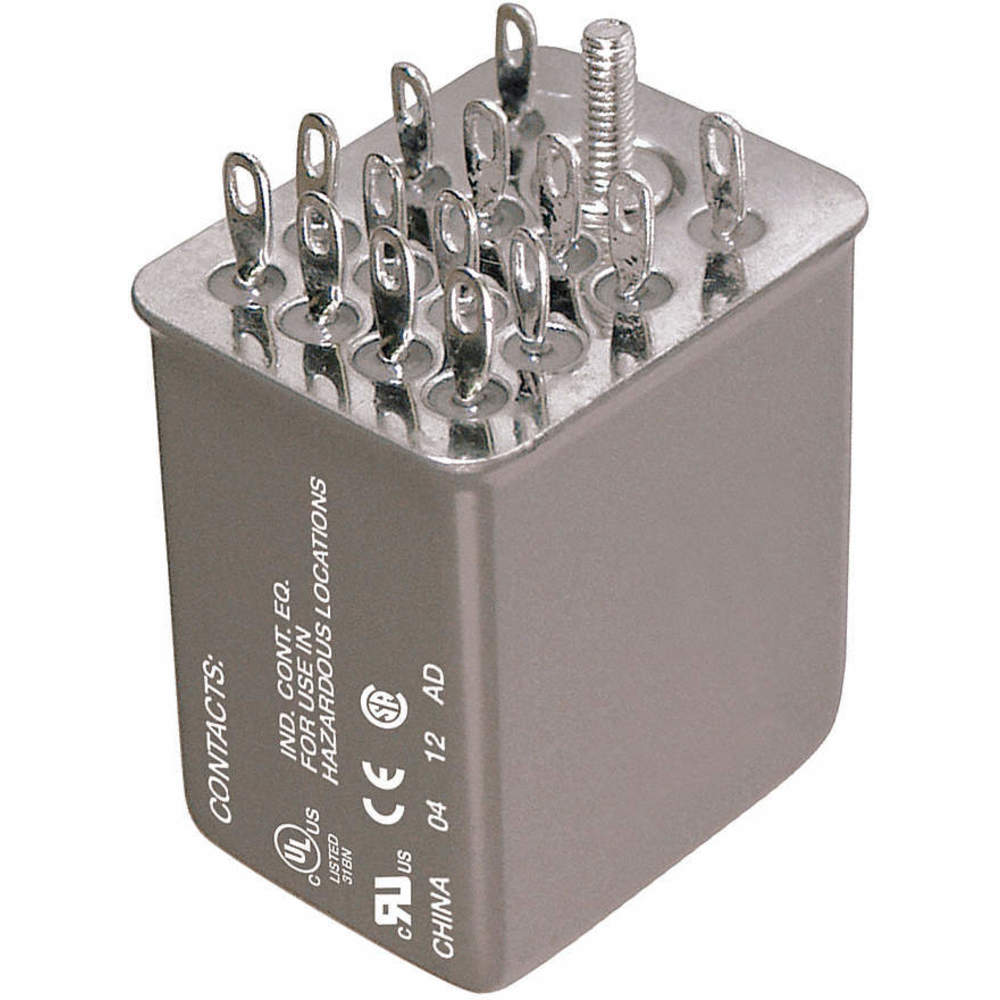

SCHNEIDER ELECTRIC 782XDXH10-24D Plug-In Relay, Hermetically Sealed, Square Base, 14 Pin, 24VDC
Item: AX3NGTModel: 782XDXH10-24DCross Ref: 6CWG3
7 In Stock
24V DC
3A @ 120/240V
3A @ 30V
Ships within 2 days via
5.00% off
€183.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug-In Relay |
| Ac Contact Rating | 3A @ 240V |
| Base Type | Square |
| Coil Va Rating | 1.2 VA |
| Coil Voltage | 24V DC |
| Contact Form | 4PDT |
| Contact Material | Silver Alloy |
| Dc Contact Rating | 3A @ 28V |
| Number Of Pins | 14 |
| Number Of Poles | 4 |
| Product Datasheet | schneider-electric-782xdxh10-24d.pdf |
| Push-to-test Button | No |
| Socket Code | K |
| Socket Code | G |
| Status Indicator | No |
| Type | Hermetically Sealed |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.95 |
| Ship length (cm) | 3.25 |
| Ship width (cm) | 2.31 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Number Of Pins/terminals | Electrical Connection Type | Coil Voltage | Current Rating | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 24V AC | 30A | - | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | - | €31.48 | |
| RPF2AP7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 230V AC | 30A | - | €31.48 | |
| RPF2BJD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 12V DC | 30A | - | €33.73 | |
| RPF2BBD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V DC | 30A | - | €33.73 | |
| RPF2BB7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V AC | 30A | - | €33.73 | |
| RPF2BF7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 120V AC | 30A | - | €33.73 |
