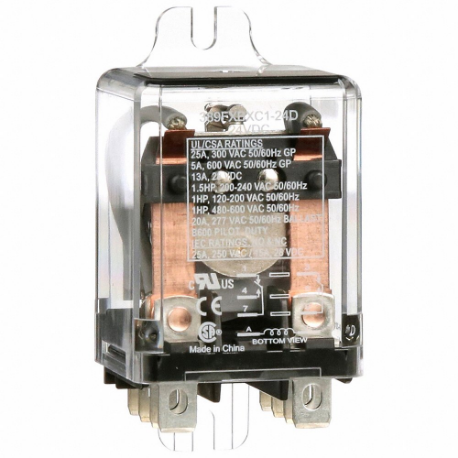

SCHNEIDER ELECTRIC 389FXBXC1-24D Enclosed Power Relay, Surface Mounted, 25 A Current Rating, 24VDC, Dpdt
Item: CU2BFDModel: 389FXBXC1-24DCross Ref: 6CUZ6
7 In Stock
Ships within 2 days via
10.00% off
€50.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Enclosed Power Relay |
| Ac Contact Rating | 5A @ 600V20A @ 277V22A @ 120V25A @ 250/300V |
| Base Shape | Octal |
| Base Type | Flange |
| Body Depth | 1 2/5" |
| Body Height | 2.9" |
| Body Width | 1.53" |
| Cad Available | Yes |
| Coil Resistance | 400 ohms |
| Coil Voltage | 24V DC |
| Connections Terminals | Quick |
| Contact Form | DPDT |
| Contact Rating (ac) | 5A @ 600V, 20A @ 277V, 22A @ 120V, 25A @ 250/300V |
| Contacts Material | Silver Alloy Contacts |
| Dc Contact Rating | 13A @ 28V, 15A @ 28V |
| Dielectric Strength | 1600V AC Between Contacts, 2200V AC Between Coil And Contact, 2200V AC Between Poles |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Features | 1Hp @ 480-600V, Flag Indicator |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 1 1/2 hp |
| Mechanical Operating Durability | 5000000 |
| Mfr. Series | 389F Power Series |
| Min. Switching Amps | 100 mA |
| Motor Rating | Yes |
| Mounting | Flange, Side |
| Number Of Pins | 8 |
| Number Of Pins - Relay | 8 |
| Number Of Pins/terminals | 8 |
| Number Of Poles | 2 |
| Overall Depth | 2.9" |
| Overall Height | 2.9" |
| Power Consumption - Relay | 3.5 W |
| Push-to-test Button | No Test Button |
| Relay Mounting | Side Flange |
| Relay Mounting Style | Surface Side Flange |
| Response Time | 20 ms |
| Status Indicator | Mechanical Flag |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 7.37 |
| Ship length (cm) | 3.56 |
| Ship width (cm) | 3.89 |
| Country of Origin | CN |
Product Variants
| Model | Relay Mounting Style | Contact Form | Push-to-test Button | Electrical Connection Type | Number Of Pins/terminals | Coil Voltage | Current Rating | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Din-Rail, Surface | Dpst-No | No Test Button | Tab | 6 | 24V AC | 30A | Tab | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | Tab | €31.48 | |
| RPF2AP7 | Din-Rail, Surface | Dpst-No | No Test Button | Tab | 6 | 230V AC | 30A | Tab | €31.48 | |
| RPF2BJD | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 12V DC | 30A | Tab | €33.73 | |
| RPF2BBD | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 24V DC | 30A | Tab | €33.73 | |
| RPF2BB7 | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 24V AC | 30A | Tab | €33.73 | |
| RPF2BF7 | Din-Rail, Surface | DPDT | No Test Button | Tab | 8 | 120V AC | 30A | Tab | €33.73 |
