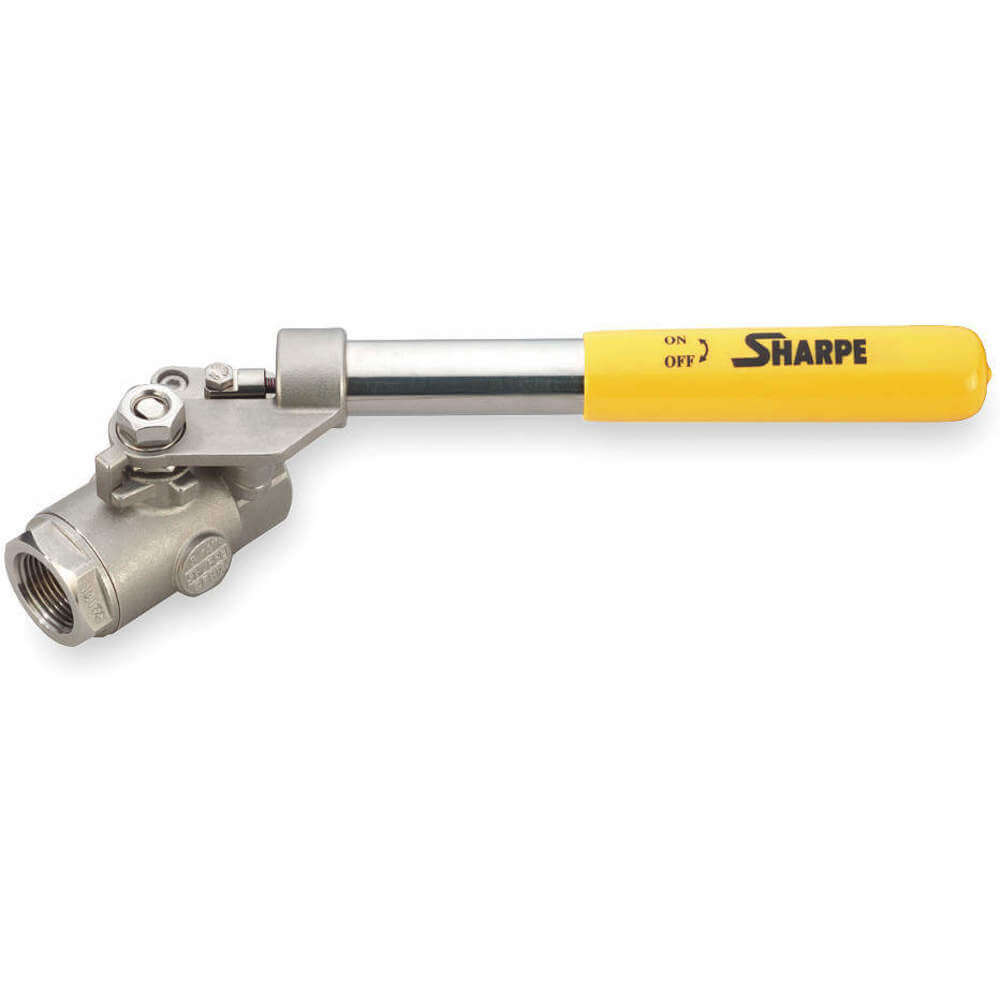

SHARPE VALVES 316 Stainless Steel Inline Ball Valve, FNPT x FNPT

Item: AB2XYX

Model: SV54576DMH004

Cross Ref: 1PPR6

Check Availability

In Stock

Get it by Dec 17, Wednesday

~~€238.56~~

10% off

€214.70 /unit (ex. VAT)

Add To Cart

Request Quote

Payment

Delivery

Item	Ball Valve
3-a Compliance	Not Rated
Ball Material	Stainless Steel
Ball Port Style	Standard Port
Ball Valve Product Group	Manual
Body Material	316 Stainless Steel
Body Style	Inline
Coefficient Of Volume (cv)	9
Connection Gender - Side 1	Female
Connection Gender - Side 2	Female
Connection Size - Side 1	1/2"
Connection Size - Side 2	1/2"
Connection Type	FNPT x FNPT
Connection Type - Side 1	NPT
Connection Type - Side 2	NPT
For Media	Air, Corrosive Chemicals, Non-Potable Water
Grade	Grade 316
Handle	Locking Lever
Handle - Locking	Locking
Handle Color	Yellow
Handle Finish	Zinc Plated
Handle Length	3.94"
Handle Material Grade	Grade 304 , Stainless Steel, PVC
Handle Type	Lever
Included Mounting	Actuator Mounting Pad

Max. Media Temperature	400°F
Max. Pressure	2000 psi WOG
Max. Pressure (combustible Gas)	Not Rated
Max. Pressure (cwp)	2000 psi
Max. Pressure (steam)	150 psi
Max. Steam Pressure	150 psi WSP
Media Temp. Range	0°F to 400°F
Min. Media Temperature	0°F
Nominal Valve Size	1/2"
Number Of Pieces	2
Overall Length	2.32"
Pipe Size	1/2"
Port	Standard
Pressure For Water	2000 psi WOG
Seal Material	PTFE
Seat Material	Polymer
Standards	Mss Sp-110
Stem Grade	Grade 316
Stem Material	Stainless Steel
Stem Type	Blowout Resistant
Temp. Range	0°F to +450°F
Vacuum Service Rating	29 in. hg
Valve Body Style	Straight
Valve Construction	Two-Piece
Valve Series	5457 Series
