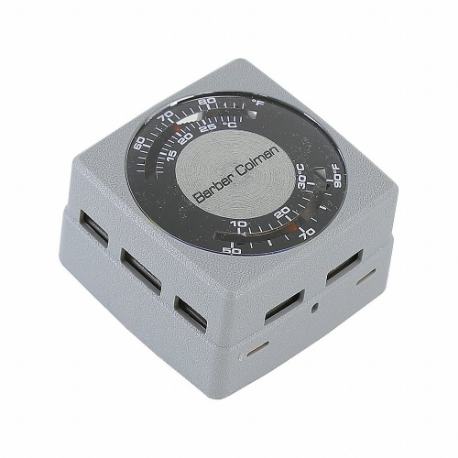

SCHNEIDER ELECTRIC 2218-132 Pneumatic Thermostat, Su mmer/Winter
Item: CU2CQLModel: 2218-132Cross Ref: 161W17
7 In Stock
Ships within 2 days via
13.00% off
€715.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pneumatic Thermostat |
| Action | Direct And Reverse |
| Action Type | Direct And Reverse |
| Air Connection Outside Dia. | 1/4" |
| Air Consumption | 31.1 SCIM (16 psig), 43.2 SCIM (25 psig) |
| Air Flow Output | High Volume |
| Application | Heat And Cool |
| Compatible System Type | Pneumatic Valves And Damper Actuators |
| Control Air Pressure Settings | 16 psig, 25 psig |
| Control Type | Concealed Dial |
| Cover Color | Gray |
| Differential Type | Adjustable |
| Fits Brand | Schneider Electric |
| Fitting Connection | Barbed 3/16" |
| Fitting Connection Size | 0.188" |
| Fitting Connection Type | Barbed |
| For Use With Mfr. Model Number | 2218-142 |
| Included | 20-693 Tubing, 20-711 Mounting Plate, 20-714 Wall Plate, Mounting Hardware |
| Included Cover | Yes |
| Key Features | Leakproof, O-Ring Sealed, Spring-Loaded Self-Closing Branch Gauge Tap |
| Manual Indexing Switch | No |
| Max. Air Pressure | 30 psig |
| Max. Control Temp. | 85°F |
| Min. Control Temp. | 55°F |
| Mounting Direction | Horizontal, Vertical |
| Mounting Location | Wall |
| No. Of Dials | 2 , Dual |
| No. Of Pipes | 2 |
| Overall Depth | 1 3/8" |
| Overall Height | 2 1/16" |
| Overall Width | 2 1/16" |
| Pneumatic Thermostat Type | Summer, Winter |
| Sensor Type | Bi Metallic Spring |
| Temp. Scale | Celsius, Fahrenheit |
| Temp. Settings | Single Temperature |
| Thermostat Action | Direct - 25 Psig, Reverse - 16 Psig |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 5.24 |
| Ship length (cm) | 3.49 |
| Ship width (cm) | 5.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Overall Depth | Overall Width | Mounting Direction | Air Connection Outside Dia. | Air Flow Output | No. Of Dials | Fitting Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TK-1711 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal, Vertical | 1/8" | High Volume | Dual | 5/32" | €1,052.70 | |
 |
2214-121 | 2 1/16" | 1 3/8" | 2 1/16" | Horizontal, Vertical | 1/4" | High Volume | Dual | Barbed 3/16" | €826.42 | |
 |
TK-1721 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal, Vertical | 1/8" | High Volume | Dual | 5/32" | €2,083.91 | |
 |
TK-1301 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal, Vertical | 1/8" | High Volume | Dual | 5/32" | €1,112.96 | |
 |
TK-1741 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal, Vertical | 1/8" | High Volume | Dual | 5/32" | €1,425.04 | |
 |
TK-1281 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal/Vertical | 1/8" | High Volume | 2 | 5/32" | €1,216.78 | |
 |
TK-1201 | 4 3/8" | 1 5/8" | 2 3/4" | Horizontal, Vertical | 1/8" | High Volume | Dual | 5/32" | €1,097.51 |
