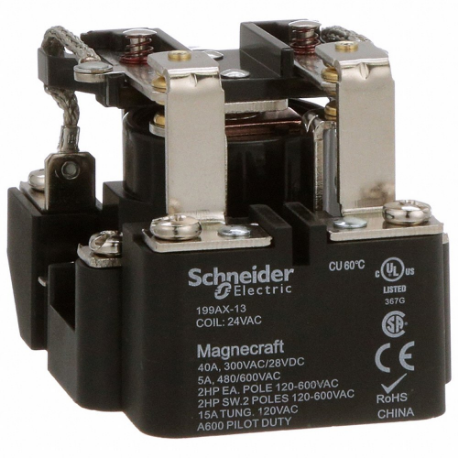

SCHNEIDER ELECTRIC 199AX-13 Open Power Relay, Surface Mounted, 40 A Current Rating, 24VAC, 8 Pins/Terminals, DPDT
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€80.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Open Power Relay |
| Ac Contact Rating | 5A @ 480/600V15A @ 120V40A @ 300V |
| Coil Voltage | 24V AC |
| Contact Form | DPDT |
| Contact Rating (ac) | 5A @ 480/600V, 15A @ 120V, 40A @ 300V |
| Current Rating | 40A |
| Dc Contact Rating | 40A @ 28V |
| Dielectric Strength | 1500V AC Between Open Contacts, 2200V AC Between Coil And Contact, 2200V AC Between Poles |
| Electrical Connection | Screw |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 50000 |
| Hp @ 120v | 2 hp |
| Hp @ 240v | 2 hp |
| Mfr. Series | 199 Power Series |
| Motor Rating | Yes |
| Number Of Pins/terminals | 8 |
| Product Datasheet | schneider-electric-199ax-13.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Surface |
| Sealing | Open |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 7.95 |
| Ship length (cm) | 3.53 |
| Ship width (cm) | 6.35 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Contact Form | Push-to-test Button | Relay Mounting Style | Number Of Pins/terminals | Electrical Connection Type | Coil Voltage | Current Rating | Socket Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 24V AC | 30A | - | €31.48 | |
| RPF2AF7 | - | - | - | - | - | 120V AC | 30A | - | €31.48 | |
| RPF2AP7 | Dpst-No | No Test Button | Din-Rail, Surface | 6 | Tab | 230V AC | 30A | - | €31.48 | |
| RPF2BJD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 12V DC | 30A | - | €33.73 | |
| RPF2BBD | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V DC | 30A | - | €33.73 | |
| RPF2BB7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 24V AC | 30A | - | €33.73 | |
| RPF2BF7 | DPDT | No Test Button | Din-Rail, Surface | 8 | Tab | 120V AC | 30A | - | €33.73 |
