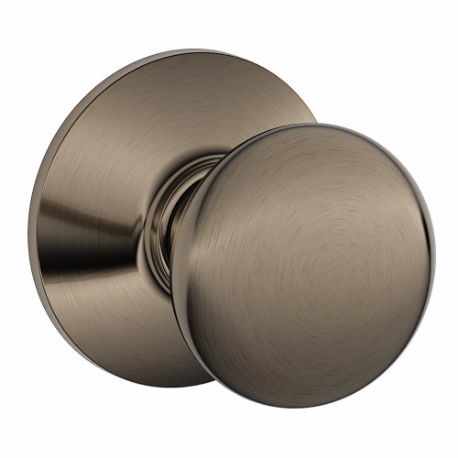

SCHLAGE F10 PLY 620 Knob Lockset, 2, Plymouth, Antique Pewter, Not Keyed
Item: CT9ZVEModel: F10 PLY 620Cross Ref: 49ZD51
7 In Stock
Ships within 2 days via
10.00% off
€44.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Knob Lockset |
| Ada Compliant | No |
| Ansi Grade | Grade 2 |
| Ansi Lockset Function | Passage |
| Backset | 2 3/8" |
| Bolt Type | Spring Latch |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Electrical/mechanical | Mechanical |
| Features | Lifetime Finish And Mechanical Warranty |
| Finish | Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated |
| Fire Rating | 3 hrs. |
| For Use With | Residential/Light Commercial Applications |
| Function | Passage |
| General Lockset Function | Passage Knob Locksets |
| Hand Orientation | Non Handed |
| Handle Type | Knob |
| Includes | Latch, Mounting Hardware, Strike |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Keying | Unkeyed |
| Keyway Type | None |
| Knob Material | Brass |
| Knob/handle Material | Brass |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Type | Multiple Family Residential |
| Lock Assembly Type | Cylindrical |
| Lockset Function Ansi Code | F75 |
| Lockset Handle Type | Knob |
| Lockset Performance Strength | Light Duty |
| Lockset Style | Plymouth |
| Lockset Type | Mechanical |
| Mortise / Cylindrical | Cylindrical |
| Mounting Style | Screw In |
| Number Of Keys | 0 |
| Number Of Pins | 0 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 3 |
| Required Door Thickness | 1 3/8", 1 3/4" |
| Strike Dim. | 1 5/8" x 2 1/4" |
| Strike Plate Height | 2 1/4" |
| Strike Plate Width | 1 5/8" |
| Strike Type | Round Corner Full Lip |
| Style | F Plymouth |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Key Type | Strike Type | Fire Rating | Backset | Location Type | Number Of Keys | Style | Required Door Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
L9050P SK1 630 C123 | Conventional | Curved Lip | 3 hrs. | 2 3/4" | Commercial | 1 | Round | 1 3/4" to 2 1/4" | €2,623.51 | |
|
L9082P SK1 630 | Conventional | Curved Lip | 3 hrs. | 2 3/4" | Commercial | 1 | Round | 1 3/4" to 2 1/4" | €3,214.90 | |
 |
L9010 SK1 630 | Not Keyed | Curved Lip | 3 hrs. | 2 3/4" | Commercial | - | Round | 1 3/4" to 2 1/4" | €3,012.14 | |
 |
L9070BD SK1 630 | Not Keyed | Curved Lip | 3 hrs. | 2 3/4" | Commercial | - | Anti Ligature Knob | 1 3/8" to 1 3/4" | €2,950.12 | |
 |
L9080L SK1 630 | Not Keyed | Curved Lip | 3 hrs. | 2 3/4" | Commercial | - | Anti Ligature Knob | 1 3/8" to 1 3/4" | €2,879.75 | |
|
L9080BD SK1 630 | Not Keyed | Curved Lip | 3 hrs. | 2 3/4" | Commercial | - | Anti Ligature Knob | 1 3/8" to 1 3/4" | €2,947.43 | |
 |
L9080T SK1 630 | Keyed Different | Curved Lip | 3 hrs. | 2 3/4" | Commercial | 1 | Anti Ligature Knob | 1 3/8" to 1 3/4" | €3,182.69 |
