SCHAEFER GFFM485G1 Exhaust Fan Belt Drive 48 Diameter Cfm 23 391 115/230 V
Get it by Monday, Dec 22
10.00% off
€3,830.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Agricultural Exhaust Fan |
| Assembled | Assembled |
| Bearing Type | Permanent Lubricated Ball |
| Blade Dia. | 48" |
| Blade Material | Steel |
| Cfm @ 0.050-in. Sp | 22365 CFM |
| Cfm @ 0.050-in. Sp | 22365 |
| Cfm @ 0.150-in. Sp | 18,563 |
| Cone Diameter | 48" |
| Drive Type | Belt Drive |
| Fan Rpm | 365 RPM |
| Fan Style | Cylinder |
| Flange Width | 2 3/4" |
| For Cut-out Height | 56 1/4" |
| For Cut-out Width | 55 3/4" |
| Frame Finish | Polished |
| Frame Material | Fiberglass |
| Free Area | 21 sq. ft. |
| Full Load Amps | 8.6/4.3A |
| Height | 55 1/2" |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 26" |
| Max. Exhaust Airflow @ 0.100 In Sp | 20576 CFM |
| Maximum Exhaust Airflow @ 0.000 In Sp | 23391 CFM |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Horsepower | 1 hp |
| Motor Insulation | Class B |
| Motor Rpm | 1725 RPM |
| Mounting Location | Wall |
| Nameplate Voltage | 115/230V AC |
| Number Of Blades | 6 |
| Number Of Speeds | 1 |
| Opening Required H (in.) | 56-1/4 |
| Opening Required W (in.) | 55-3/4 |
| Phase | 1 |
| Type | Assembled, Belt Drive |
| Venturi Clearance Dia. | 49" |
| Venturi Depth | 13" |
| Voltage | 115/230V |
| Wattage | 746 W |
| Width | 55 1/4" |
Shipping Info:
| Ship weight (kg) | 121.5 |
| Ship height (cm) | 157.48 |
| Ship length (cm) | 157.48 |
| Ship width (cm) | 101.6 |
| HS code | 8414519060 |
| Country of Origin | US |
Product Variants
| Model | Blade Dia. | Hp | Height | Max. Depth | Motor Rpm | Frame Finish | Full Load Amps | Bearing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FFM365G12 | 36" | 1/2 hp | 43 1/8" | 25 1/4" | 1725 RPM | Polished | 4.6/2.3A | Permanent Lubricated Ball | €3,712.14 | |
| GFFM485G1-2 | 48" | - | 55 1/2" | 26" | 1725/1140 RPM | Polished Tan Fiberglass | 5.3A | Permanent Lubricated Ball | €4,408.91 | |

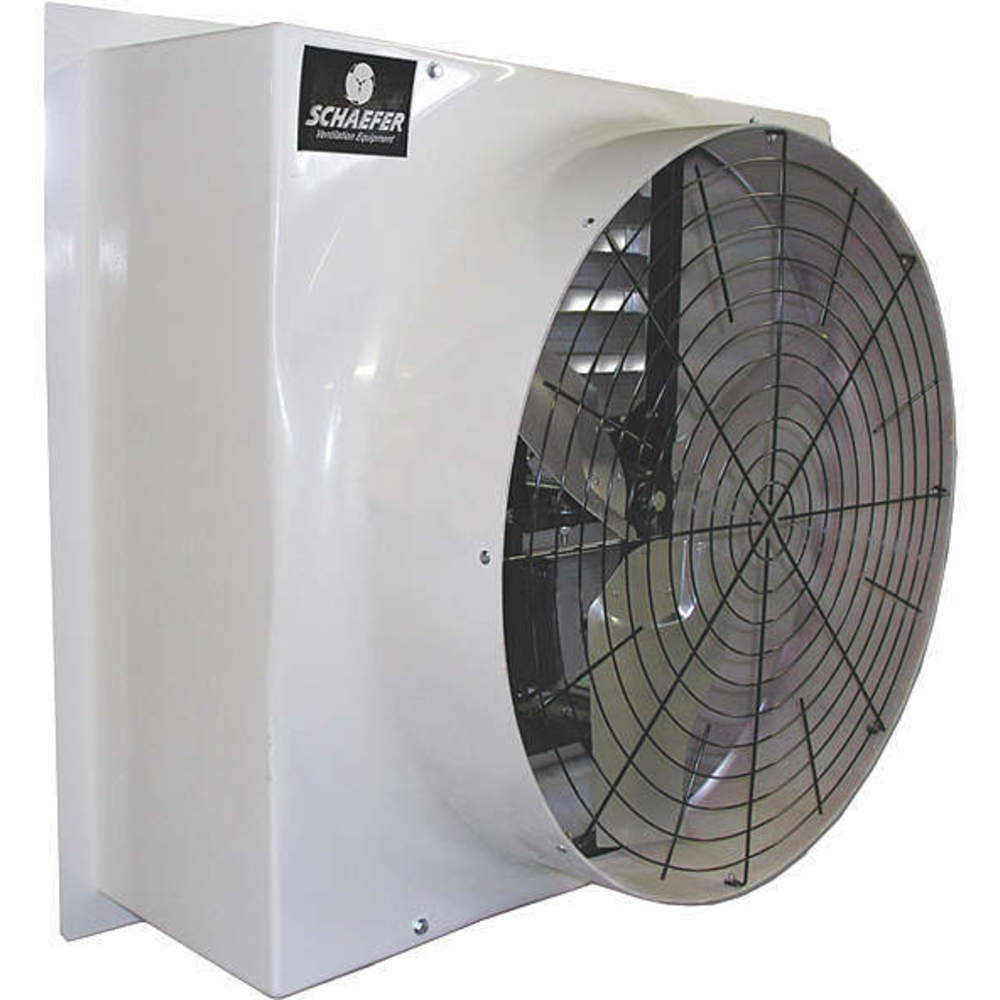

| GFFM525G1 | 52" | 1 hp | 58 1/4" | 26" | 1725 RPM | Polished | 8.6/4.3A | Permanently Lubricated Ball | - | RFQ
|
| GFFM525G1-2 | 52" | - | 58 1/4" | 26" | 1725/1140 RPM | Polished | 5.3A | Permanent Lubricated Ball | €5,283.61 |
