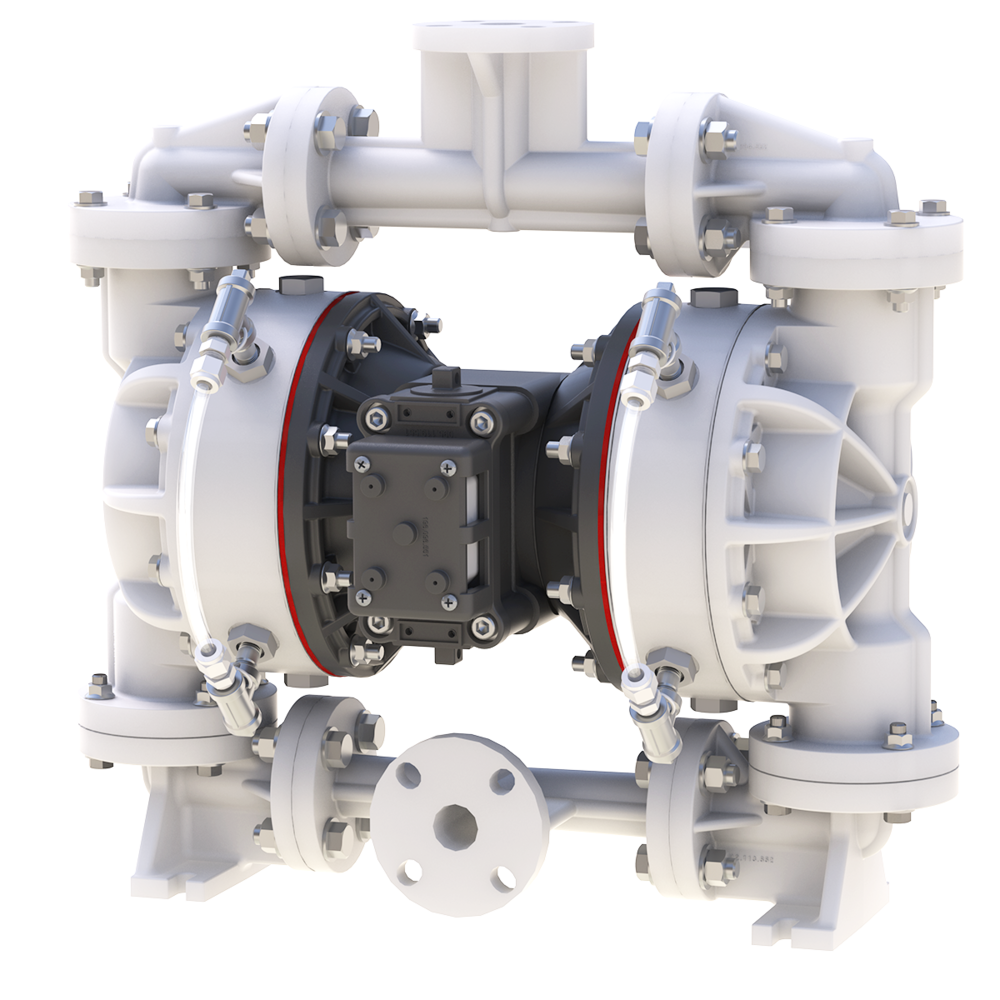

SANDPIPER S1FB3P3PPUV000. Containment Duty Pump, Non-Metallic, 0-45 Gpm, 48 Lbs., 21.75 X 20.75 X 12.06 Inch Size
Get it by Wednesday, Aug 19
€5,217.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Containment Duty Pump |
| Check Valve Seat | Ball Valve |
| Check Valve Seat Material | Polypropylene |
| Check Valve Type | Ball |
| Design Level | 3 |
| Diaphragm Material | PTFE, Santoprene |
| Displacement Per Stroke | 0.17 gal. , 0.19 gal. |
| Elastomer Material | PTFE |
| Elastomers Material | PTFE, Santoprene |
| Height | 21" |
| Inlet Connection Type | ANSI, DIN |
| Inlet Size | 1" |
| Inlet Standard | ANSI, DIN |
| Inlet Type | Flange |
| Item | 865593 |
| Length | 22" |
| Max. Air Inlet Pressure | 100 psi |
| Max. Flow Rate | 0-45 GPM , 53 GPM |
| Max. Solids Size | 0.25 |
| Non Wetted Material | Polypropylene |
| Outlet Class | ANSI, DIN |
| Outlet Connection Type | ANSI, DIN |
| Outlet Size | 1" |
| Outlet Type | Flange |
| Porting Position Type | Universal (Fits ANSI And DIN) |
| Product Datasheet | sandpiper-s1fb3c1pcus000-.pdf |
| Pump Style | Containment Duty With Visual Leak Detection |
| Pump Type | S1F Diaphragm Pump |
| Solids Handling | 25" |
| Type | Air Powered Double Diaphragm Pump |
| Wetted Material | Polypropylene |
| Width | 12" |
Shipping Info:
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 52.71 |
| Ship length (cm) | 55.25 |
| Ship width (cm) | 30.63 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Max. Flow Rate | Diaphragm Material | Outlet Size | Wetted Material | Max. Solids Size | Outlet Connection Type | Inlet Connection Type | Main Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

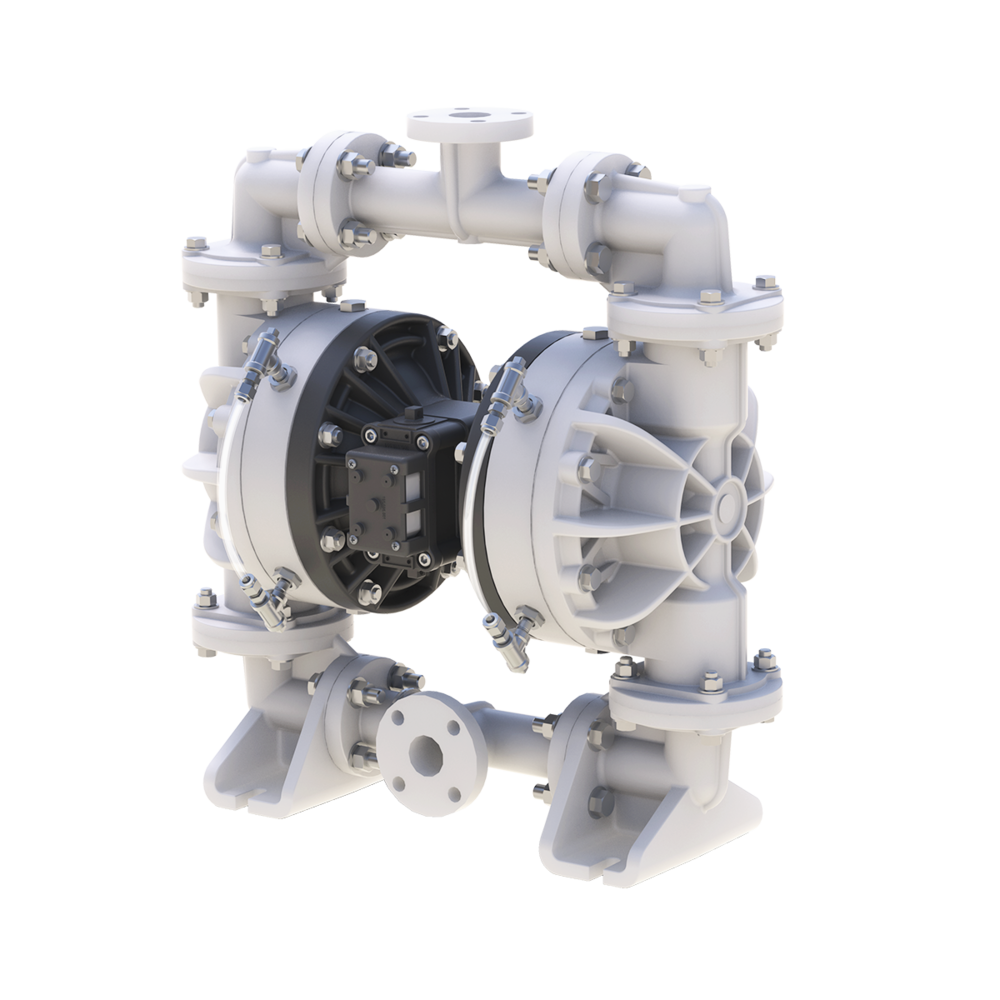

| S15B3K6KPUV000. | 100 GPM | PTFE, Neoprene | 1.5 | PVDF | 0.47 | Universal, ANSI, DIN | Universal, ANSI, DIN | PVDF | €17,102.92 | |
| S15B3P3PPUV000. | 100 GPM | PTFE, Santoprene | 1.5 | Polypropylene | 0.47 | Universal, ANSI, DIN | Universal, ANSI, DIN | Polypropylene | €7,949.94 | |
| S15B3P4PPUV000. | 100 GPM | Santoprene | 1.5 | Polypropylene | 0.47 | Universal, ANSI, DIN | Universal, ANSI, DIN | Polypropylene | €7,557.11 | |
| S1FB3K3KPUV000. | 53 GPM | PTFE, Santoprene | 1" | PVDF, Kynar | 0.25 | ANSI, DIN | ANSI, DIN | - | €10,193.99 | |
| S1FB3K4KPUV000. | 53 GPM | Santoprene | 1" | PVDF, Kynar | 0.25 | ANSI, DIN | ANSI, DIN | - | €10,193.99 | |
| S1FB3P3PPUD000. | 53 GPM | PTFE, Santoprene | 1 | Polypropylene | 0.25 | ANSI, DIN | ANSI, DIN | - | €7,280.15 | |
| S1FB3P4PPUV000. | 53 GPM | Santoprene | 1" | Polypropylene | 0.25 | ANSI, DIN | ANSI, DIN | - | €4,800.40 |
