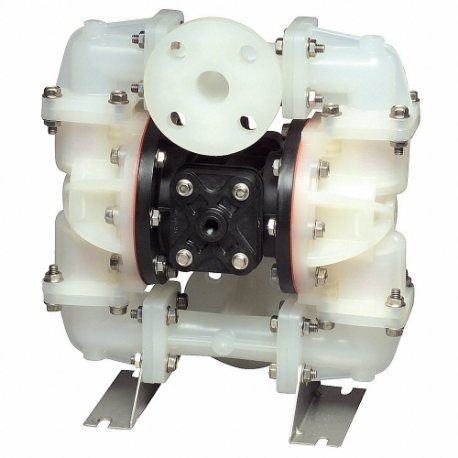

SANDPIPER S10B1K2KPAS000. Ball Valve Pump, Non-Metallic, Top Discharge, 21 Lbs., 11.81 X 13.81 X 7.56 Inch Size
Get it by Wednesday, Dec 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€4,958.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve Pump |
| Air Consumption | 20 SCFM |
| Air Consumption (maximum) | 20 SCFM |
| Air Inlet | 1/4" Flange |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | Flange |
| Air Intake Pressure (maximum) | 100 psi |
| Center Section Material | Polypropylene |
| Check Seat Material | PVDF |
| Connection Size | 1" |
| Connection Style | Flange |
| Connection Type | Flanged |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Feet Of Head (maximum) | 231 ft. |
| Flow Rate (maximum) | 23 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 23 GPM |
| Flow Rate @ 120 Psi | Not Applicable |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 11.5 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 16.3 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 19.5 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 21.6 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Intake Connection | 1" Flange |
| Fluid Outlet Connection | 1" Flange |
| For Use With Potable Systems | No |
| Housing Material | PVDF |
| Includes | Pump |
| Inlet Size | 1/4" |
| Inlet Type | Flanged |
| Inlet/outlet Size | 1" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Flange |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Dia. Solids | 0.15" |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Rate | 23 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 0.15" |
| Media Discharge Connection Size | 1" |
| Media Discharge Connection Type | Flange |
| Media Discharge Location | Center, Top |
| Media Intake Connection Size | 1" |
| Media Intake Connection Type | Flange |
| Media Intake Location | Bottom, Center |
| Min. Media Temp. | -40°F |
| Non-wetted Housing Material | Polypropylene |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Air Operated |
| Overall Height | 13 4/5" |
| Overall Length | 7 3/5" |
| Overall Width | 11 4/5" |
| Power Source | Air |
| Priming | Self Priming |
| Product Datasheet | sandpiper-s10b1k2kpas000-.pdf |
| Pump Assembly Type | Bolt |
| Pump Operation Type | Air |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Self-priming Dry | 9 ft. |
| Self-priming Wet | 9 ft. |
| Series Family | S10 |
| Solid Diameter (maximum) | 0.15" |
| Valve Material | PTFE |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 35.08 |
| Ship length (cm) | 30 |
| Ship width (cm) | 19.2 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Max. Flow Rate | Diaphragm Material | Valve Material | Max. Media Temp. | Inlet Size | Housing Material | Pump Assembly Type | Max. Outlet Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| S10B1K1KPAS000. | 23 GPM | Santoprene | Santoprene | 250°F | 1/4" | PVDF | Bolt | 100 psi | €4,892.63 | |
| S07B1P1PP3S0E1. | 23 GPM | Santoprene | - | - | 0.75 | - | - | - | €2,337.35 | |
| S07T1PBPP1S0E4. | 23 GPM | Buna | - | - | 0.75 | - | - | - | €2,960.97 |
