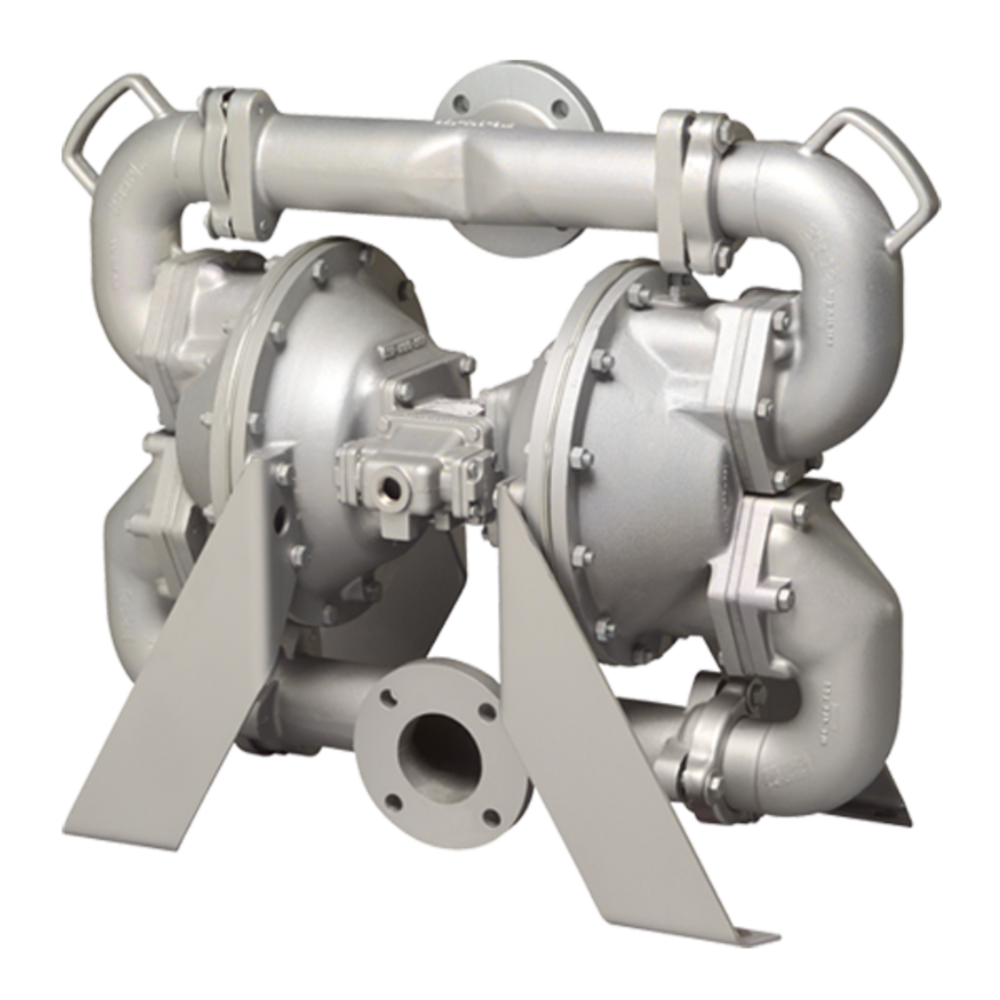

SANDPIPER HDF3,DA7. Flap Valve Pump, Bottom Discharge, 245 Lbs., 36.72 X 29.5 X 16.18 Inch Size
Get it by Tuesday, Mar 31
€5,963.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flap Valve Pump |
| Check Valve Material | Hytrel |
| Check Valve Seat | Flap Valve |
| Check Valve Type | Flap |
| Diaphragm Material | Neoprene |
| Displacement Per Stroke | 1.5 gal. , 1.6 gal. |
| Elastomer Material | Urethane |
| Elastomers Material | Neoprene |
| Height | 30" |
| Inlet Connection Type | ANSI |
| Inlet Size | 3 |
| Item | 865608 |
| Length | 37" |
| Max Solids Size | 3 |
| Max. Air Inlet Pressure | 125 psi |
| Max. Flow Rate | 260 GPM , 310 GPM |
| Non-wetted Material | Aluminum |
| Outlet Connection Type | ANSI |
| Outlet Size | 3 |
| Porting Position Class | ANSI |
| Porting Position Size | 3" |
| Porting Position Type | ANSI |
| Product Datasheet | sandpiper-hdf3-ds7-.pdf |
| Pump Type | HDF3 A, HDF4 A Pump |
| Solids Handling | 3" |
| Wetted Material | Aluminum |
| Width | 16" |
Shipping Info:
| Ship weight (kg) | 155.25 |
| Ship height (cm) | 74.93 |
| Ship length (cm) | 93.27 |
| Ship width (cm) | 41.1 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Housing Material | Valve Material | Max. Solid Dia. | Air Consumption | Max. Media Temp. | Max. Head | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HDF2 DP6A. | 140 GPM | Santoprene | Aluminum | Santoprene | 2" | 140 SCFM | 275°F | 231 ft. | €5,546.78 | |
 |
HDF3M DS2II. | 260 GPM | Santoprene | Cast Iron | Santoprene | 3" | 160 SCFM | 275°F | 231 ft. | €13,912.12 | |
 |
HDF1 DB2A. | 70 GPM | Buna N | Aluminum | Buna N | 1" | 50 SCFM | 190°F | 289 ft. | €3,609.89 | |
|
HDF2 DP6I. | 140 GPM | Santoprene | Cast Iron | Santoprene | 2" | 140 SCFM | 275°F | 231 ft. | €6,446.87 | |
 |

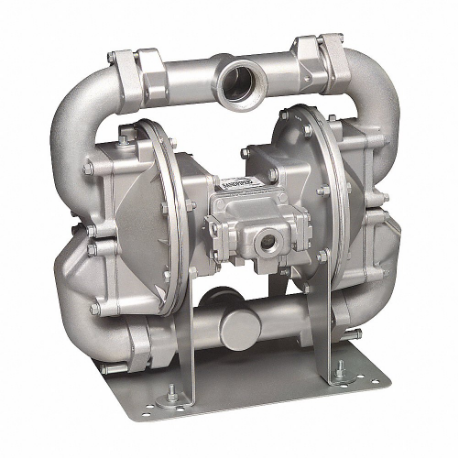

HDF2 DV6S. | 140 GPM | Viton | Stainless Steel | Viton, FKM | 2" | 140 SCFM | 350°F | 231 ft. | €16,803.96 | |
|
HDF2 DB6A. | 140 GPM | Buna N | Aluminum | Buna N | 2" | 140 SCFM | 190°F | 231 ft. | €5,680.88 | |
|
HDF2 DB6I. | 140 GPM | Buna N | Cast Iron | Buna N | 2" | 140 SCFM | 190°F | 231 ft. | €6,268.73 |
