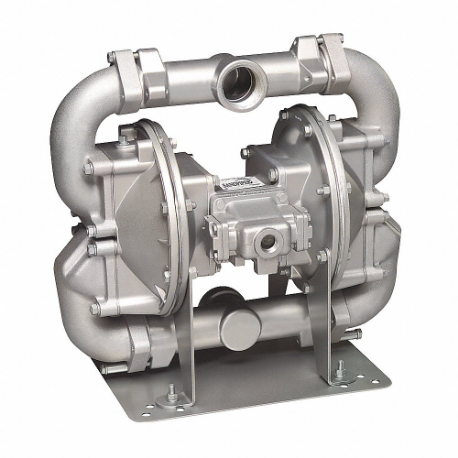

SANDPIPER HDF2,DN6II. Flap Valve Pump, Metallic, Bottom Discharge, 140 Gpm, 168 Lbs.
Get it by Friday, Aug 21
€4,359.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flap Valve Pump |
| Check Valve Seat | Flap Valve |
| Check Valve Type | Flap |
| Diaphragm Material | Neoprene |
| Displacement Per Stroke | 0.47 gal. |
| Elastomer Material | Neoprene |
| Height | 20" |
| Inlet Connection Type | NPT |
| Inlet Size | 2" |
| Inlet Type | NPT |
| Item | 865608 |
| Length | 22" |
| Max. Air Inlet Pressure | 125 psi |
| Max. Flow Rate | 140 GPM , 208 GPM |
| Max. Solids Size | 1.8 |
| Non Wetted Material | Cast Iron |
| Outlet Connection Type | NPT |
| Outlet Size | 2" |
| Outlet Type | NPT |
| Product Datasheet | sandpiper-hdf2-dv6s-.pdf |
| Pump Type | HDF2 Pump |
| Solids Handling | 2" |
| Wetted Material | Cast Iron |
| Width | 14" |
Shipping Info:
| Ship weight (kg) | 74.25 |
| Ship height (cm) | 50.47 |
| Ship length (cm) | 54.97 |
| Ship width (cm) | 34.44 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Flow Rate | Wetted Material | Non Wetted Material | Outlet Size | Outlet Connection Type | Inlet Connection Type | Diaphragm Material | Max. Solids Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HDF2 DP6A. | 140 GPM | Aluminum | Aluminum | - | - | - | Santoprene | - | €5,394.89 | |
 |
HDF3M DS2II. | 260 GPM | Cast Iron | Cast Iron | - | - | - | Santoprene | - | €13,912.12 | |
 |
HDF1 DB2A. | 70 GPM | Aluminum | Aluminum | - | - | - | Buna N | - | €3,576.20 | |
|
HDF2 DP6I. | 140 GPM | Cast Iron | Aluminum | - | - | - | Santoprene | - | €6,062.45 | |
 |
HDF2 DV6S. | 140 GPM | Stainless Steel | Aluminum | - | - | - | Viton | - | €16,803.96 | |
|
HDF2 DB6A. | 140 GPM | Aluminum | Aluminum | - | - | - | Buna N | - | €5,680.88 | |
|
HDF2 DB6I. | 140 GPM | Cast Iron | Aluminum | - | - | - | Buna N | - | €6,268.73 |
