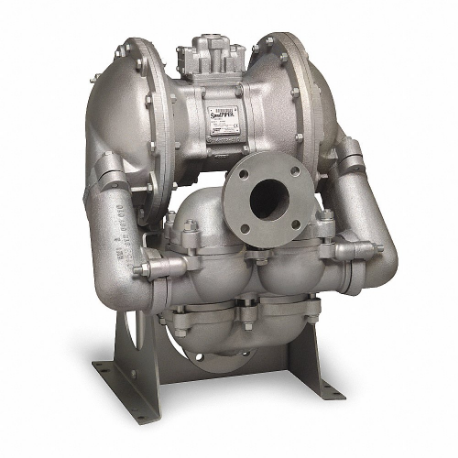

SANDPIPER HDB3,DGN4SS. Ball Valve Pump, Metallic, Bottom Discharge, 480 Lbs., 27.34 X 31.07 X 26.06 Inch Size
Get it by Wednesday, Apr 8
5.00% off
€41,418.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve Pump |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Intake Connection Size | 3/4" |
| Air Intake Pressure (maximum) | 100 psi |
| Body Material | Stainless Steel |
| Check Seat Material | PTFE |
| Check Valve Type | Ball Valve |
| Connection Size | 3" |
| Connection Style | Flange |
| Connection Type | NPT |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Flow Rate (maximum) | 260 GPM |
| Flow Rate @ 10 Psi | 60 GPM |
| Flow Rate @ 100 Psi | 100 GPM |
| Flow Rate @ 15 Psi | 75 GPM |
| Flow Rate @ 20 Psi | 160 GPM |
| Flow Rate @ 30 Psi | 100 GPM |
| Flow Rate @ 40 Psi | 140 GPM |
| Flow Rate @ 50 Psi | 75 GPM |
| Flow Rate @ 60 Psi | 125 GPM |
| Flow Rate @ 70 Psi | 75 GPM |
| Flow Rate @ 80 Psi | 100 GPM |
| Flow Rate @ 90 Psi | 55 GPM |
| Fluid Intake Connection | 3" Npt |
| Fluid Outlet Connection | 3" Npt |
| Grade | Grade 316 |
| Height | 31" |
| Housing Material | Stainless Steel |
| Inlet Size | 3/4" |
| Inlet Type | NPT |
| Inlet/outlet Size | 3" |
| Length | 27" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Single Port |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Dia. Solids | 7/8" |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Rate | 260 GPM |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 22/25" |
| Media Discharge Connection Size | 3" |
| Media Intake Connection Size | 3" |
| Min. Media Temp. | -40°F |
| Non-wetted Material | Cast Iron |
| Operating Pressure (maximum) | 100 psi |
| Operation Type | Air Operated |
| Overall Height | 31.3" |
| Overall Length | 24 3/5" |
| Overall Width | 26" |
| Power Source | Air |
| Product Datasheet | sandpiper-hdb3-dgn4ss-.pdf |
| Pump Operation Type | Air |
| Rated Air Pressure | 100 psi |
| Self-priming Dry | 20 ft. |
| Self-priming Wet | 25 ft. |
| Series | HDB3 Series |
| Series Family | Hdb3 |
| Solid Diameter (maximum) | 22/25" |
| Solids Handling | 7/8" |
| Valve Material | PTFE |
| Valve Type | Ball |
| Wetted Material | Stainless Steel |
| Width | 26" |
Shipping Info:
| Ship weight (kg) | 216 |
| Ship height (cm) | 78.92 |
| Ship length (cm) | 69.44 |
| Ship width (cm) | 66.19 |
| Country of Origin | US |
