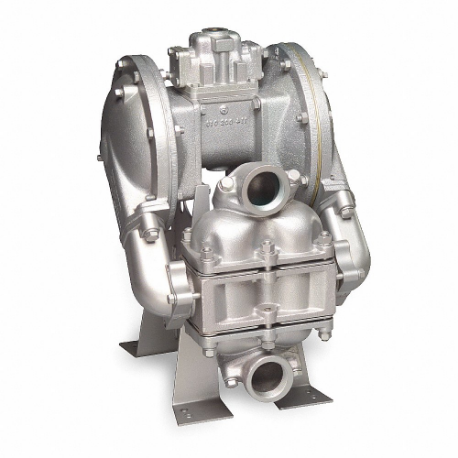

SANDPIPER HDB2,DN4CI. Ball Valve Pump, Heavy Duty, 120 Lbs., 17.22 X 23.32 X 15.63 Inch Size
Get it by Tuesday, Sep 1
€3,822.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve Pump |
| Check Valve Seat | Stainless Steel |
| Check Valve Type | Ball |
| Diaphragm Material | Neoprene |
| Displacement Per Stroke | 0.46 gal. |
| Elastomer Material | Neoprene |
| Height | 23" |
| Inlet Connection Type | NPT |
| Inlet Size | 2 |
| Item | 865582 |
| Length | 17" |
| Max. Air Inlet Pressure | 125 psi |
| Max. Flow Rate | 0.46 GPM , 135 GPM |
| Max. Solids Size | 0.38 |
| Non Wetted Material | Aluminum |
| Outlet Connection Type | NPT |
| Outlet Size | 2 |
| Porting Position | Bottom Discharge |
| Product Datasheet | sandpiper-hdb2-ds4ci-.pdf |
| Pump Type | HDB2 Pump |
| Solids Handling | 3/8" |
| Wetted Material | Cast Iron |
| Width | 16" |
Shipping Info:
| Ship weight (kg) | 54 |
| Ship height (cm) | 59.23 |
| Ship length (cm) | 43.74 |
| Ship width (cm) | 39.7 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Wetted Material | Non Wetted Material | Max. Solids Size | Max. Media Temp. | Height | Solids Handling | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HDB2 DGN4CI. | 0.46 GPM | PTFE | Cast Iron | Aluminum | - | 220°F | 23" | 3/8" | €7,507.39 | |
 |
HDB2 DS4CI. | 0.46 GPM | Santoprene | Cast Iron | Aluminum | - | 275°F | 23" | 3/8" | €5,950.45 | |
 |

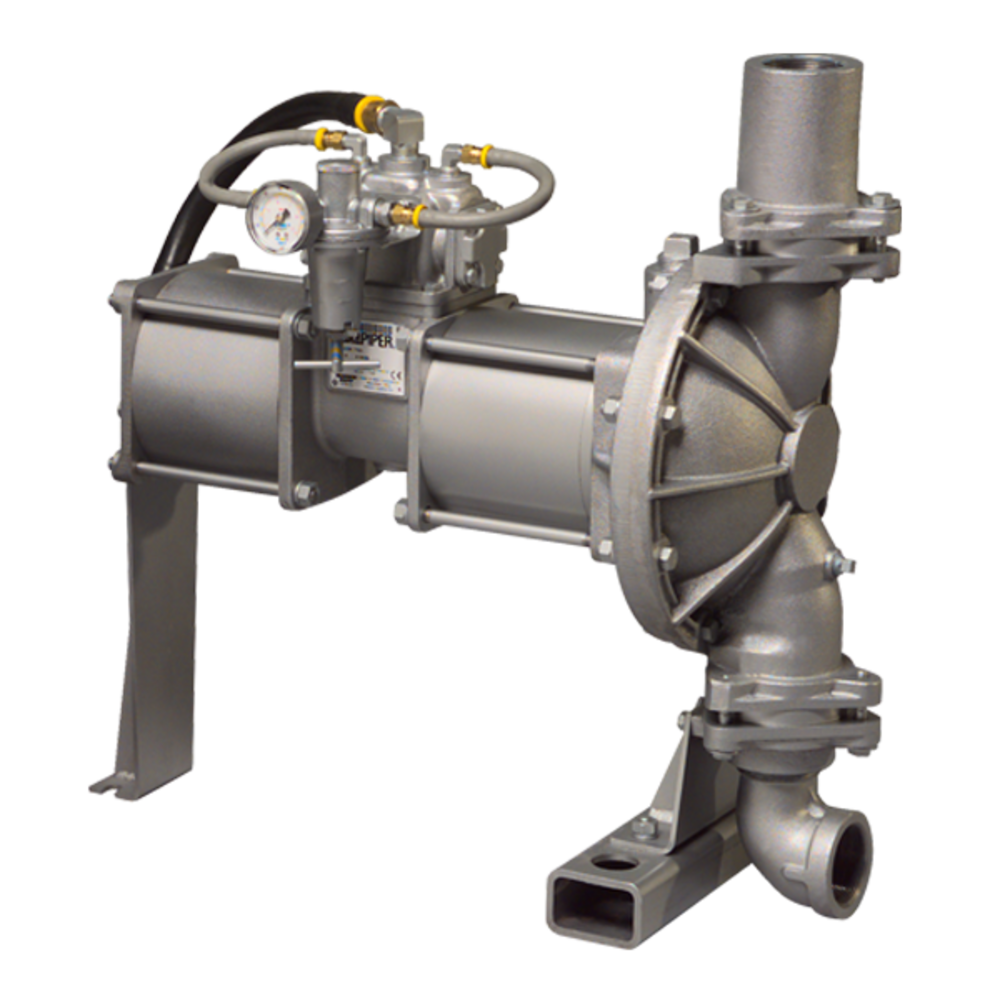

GH2M,TGB1I. | 74 GPM | PTFE, Nitrile, Buna | Cast Iron | Aluminum | 0.25 | - | 25" | 1/4" | €10,135.07 | |
|
HDB2,DB4A. | 135 GPM | Nitrile, Buna N | Aluminum | Aluminum | 0.38 | - | 23" | 3/8" | €3,394.38 | |
|
HDB2,DB4CI. | 135 GPM | Nitrile, Buna N | Cast Iron | Aluminum | 0.38 | - | 23" | 3/8" | €3,822.62 | |
|
HDB2,DC4CI. | 135 GPM | FKM | Cast Iron | Aluminum | 0.38 | - | 23" | 3/8" | €4,543.86 | |
|
HDB2,DGN4A. | 135 GPM | Neoprene, PTFE | Aluminum | Aluminum | 0.38 | - | 23" | 3/8" | €4,115.63 |
