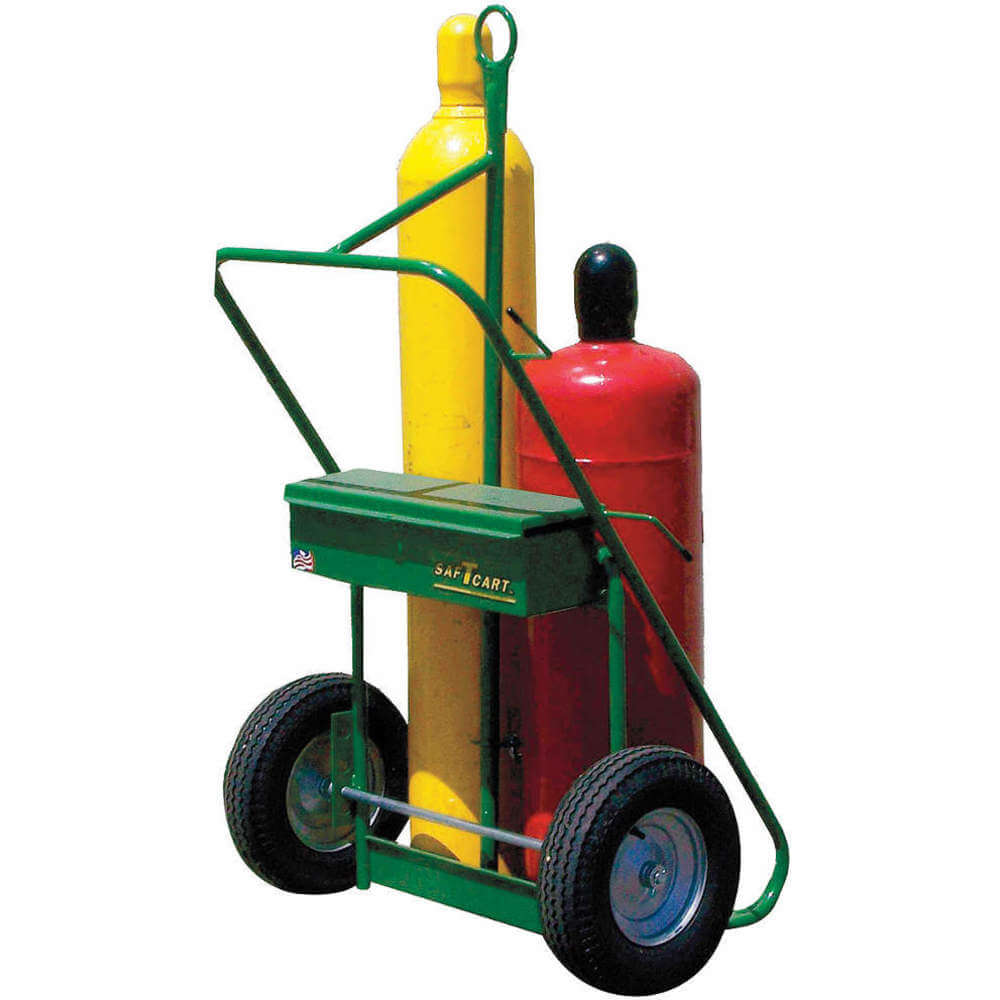

SAFTCART 552-16 Cylinder Hand Truck, 780 lb, Side by Side, 2 Cylinder, 24 Inch Width x 13 Inch Depth Nose Plate
Get it by Friday, Jul 3
€892.50 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Cylinder Truck |
| Assembled | Yes |
| Axle Dia. | 3/4" |
| Axle Mounted Wheel Bearings | Ball Bearing |
| Axle Mounted Wheel Width | 4" |
| Axle-mounted Wheel Dia. | 16" |
| Axle-mounted Wheel Type | Pneumatic |
| Axle-mounted Wheel/tread Material | Rubber |
| Base Plate Dimensions | 13" x 24" |
| Base Plate Dimensions | 13 x 24" |
| Brake Type | No Caster Brake |
| Caster Wheel/configuration | (2) Axle-Mounted |
| Caster/wheel Mounting Location | 2-Wheel |
| Color | Green |
| Compatible With Product Type | Welding Cylinders And Torches |
| Cylinder Capacity | 2 |
| Cylinder Height | 62" |
| Cylinder Orientation | Side By Side |
| Deck Height | 1/2" |
| Depth | 13" |
| Features | Perfect For Large Construction And Industrial Sites |
| Finish | Powder Coating |
| For Max. Cylinder Dia. | 12 1/2" |
| For Surface Type | Concrete, Grass, Wood |
| Frame Finish | Powder Coating |
| Frame Material | Steel |
| Frame Type | Rounded Back |
| Handle Height | 46" |
| Handle Type | Continuous Frame Flow Back |
| Height | 62" |
| Hub Position | Offset |
| Included | Steel Band To Cylinder, Lockable Toolbox |
| Included Firewall | No |
| Included Foot Assist | Without Foot Assist |
| Included Lever Pushoff | Without Lever Pushoff |
| Included Lift Ring | With Lift Ring |
| Included Stair Climber | Without Stair Climber |
| Lifting Ring Inside Dia. | 3" |
| Load Capacity | 780 lbs. |
| Material | Steel |
| Max. Tank Dia. Acetylene | 12 1/2" |
| Max. Tank Dia. Acetylene | 12-1/2" |
| Max. Tank Dia. Oxygen | 9 1/2" |
| Max. Tank Dia. Oxygen | 9-1/2" |
| Non-marking Axle-mounted Wheels | No |
| Nose Plate Depth | 13" |
| Nose Plate Material | Steel |
| Nose Plate Profile | Standard |
| Nose Plate Thickness | 3/32" |
| Nose Plate Type | Solid Straight |
| Nose Plate Width | 24" |
| Nose Plate Wxd | 13" x 24" |
| Overall Depth | 12 1/2" |
| Overall H X W X D | 62" x 35" x 12.5" |
| Overall Height | 62" |
| Overall Height-cylinder Lowered | 62" |
| Overall Height-cylinder Raised | 62" |
| Overall Width | 35" |
| Securing Mechanism | Perma Clamp |
| Securing Mechanism Height | 26" |
| Tool Tray Height | 5" |
| Tool Tray Height | 31" |
| Tool Tray Width | 24" |
| Tool Tray Width | 22 1/2" |
| Type | Standard |
| Wheel Bearings | Ball , Ball Bearing |
| Wheel Dia. | 16" |
| Wheel Type | Pneumatic |
| Wheel Width | 4" |
| Width | 35" |
Shipping Info:
| Ship weight (kg) | 39.15 |
| Ship height (cm) | 153.67 |
| Ship length (cm) | 90.17 |
| Ship width (cm) | 66.04 |
| HS code | 8716805090 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Overall Width | Overall Depth | Load Capacity | Handle Type | Wheel Type | Wheel Bearings | Max. Tank Dia. Oxygen | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
810-6 | 42" | 22" | 8" | 200 lbs. | Continuous | Semi-Pneumatic | Ball | 7 3/4" | €149.58 | |
 |
935-8S | 45" | 21" | 6 1/2" | 250 lbs. | T Shape | Semi-Pneumatic | Ball | 8 1/2" | €238.74 | |
 |
820-10 | 45" | 30" | 6 1/2" | 400 lbs. | Continuous Frame Flow Back | Semi-Pneumatic | Ball | 7 3/4" | €231.54 | |
 |
860-14 | 42" | 21" | 6 1/2" | 400 lbs. | Continuous Frame Flow Back | Semi-Pneumatic | Ball | 9 1/2" | €380.20 | |
 |
861-16 | 42" | 27" | 9 1/2" | 780 lbs. | Continuous Frame Flow Back | Pneumatic | Ball | 9 1/2" | €496.68 | |
 |
863-20 | 42" | 31" | 6 1/2" | 780 lbs. | Continuous Frame Flow Back | Steel | Plain | 9 1/2" | €550.88 | |
 |
600-10 | 50" | 18" | 6 1/2" | 400 lbs. | Continuous Frame Flow Back | Semi-Pneumatic | Ball | 9 1/2" | €398.48 |
