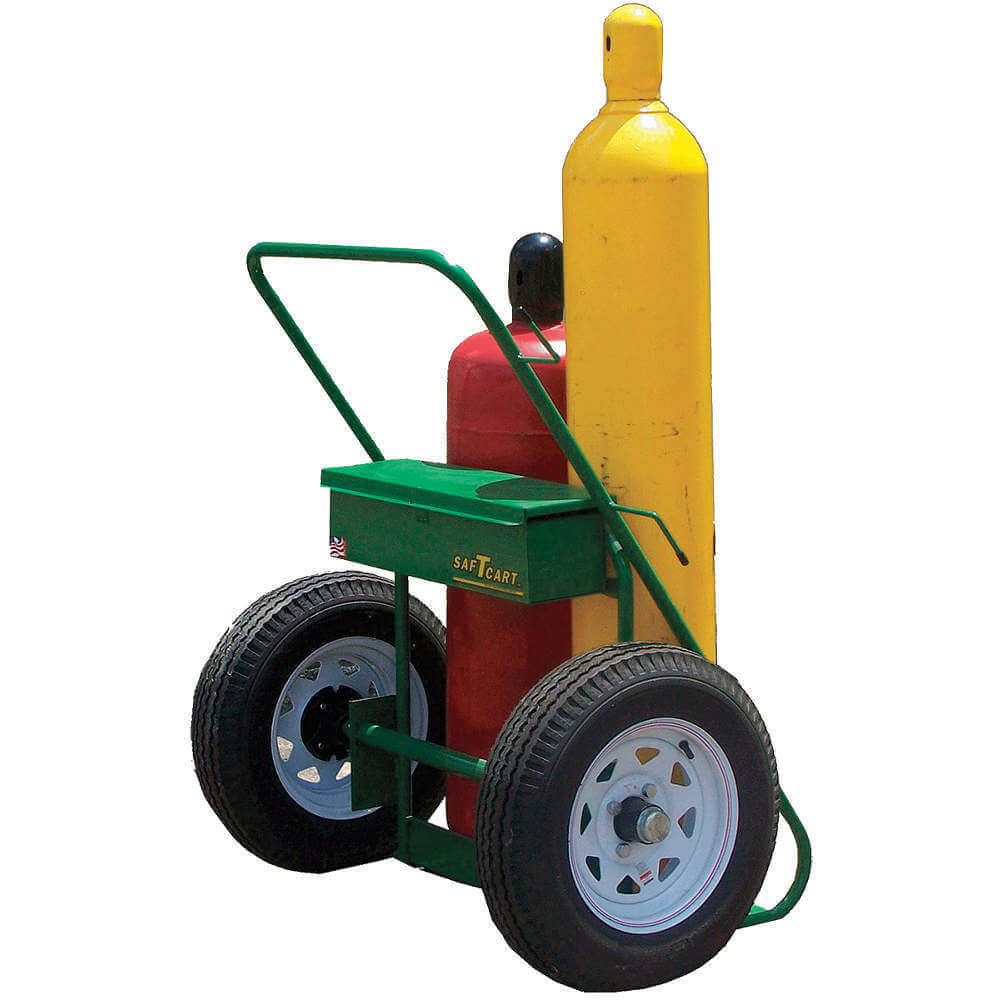

SAFTCART 504-30 Welding Cylinder Truck 2 Cylinder 1680 Lb.
Get it by Wednesday, Dec 24
10.00% off
€1,769.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Welding Cylinder Truck |
| Assembled | Yes |
| Axle-mounted Wheel Dia. | 30" |
| Axle-mounted Wheel Type | Pneumatic |
| Axle-mounted Wheel Width | 5 1/4" |
| Axle-mounted Wheel/tread Material | Rubber |
| Base Plate Dimensions | 13 x 24" |
| Base Plate Dimensions | 13" x 24" |
| Brake Type | No Caster Brake |
| Caster/wheel Configuration | (2) Axle-Mounted |
| Caster/wheel Mounting Location | 2-Wheel |
| Color | Green |
| Compatible With Product Type | Welding Cylinders And Torches |
| Cylinder Capacity | 2 |
| Cylinder Height | 46" |
| Cylinder Orientation | Side By Side |
| Deck Height | 1/2" |
| Depth | 13" |
| Features | A Lockable Toolbox |
| Finish | Powder Coated |
| For Maximum Cylinder Diameter | 12 1/2" |
| For Surface Type | Concrete, Grass, Wood |
| Frame Finish | Powder Coated |
| Frame Material | Steel |
| Frame Type | Rounded Back |
| Handle Height | 46" |
| Handle Type | Continuous Frame Flow Back |
| Height | 46" |
| Hub Position | Offset |
| Includes | Steel Band To Cylinder, Lockable Toolbox |
| Includes Firewall | No |
| Includes Foot Assist | Without Foot Assist |
| Includes Lever Pushoff | Without Lever Pushoff |
| Includes Lift Ring | Without Lift Ring |
| Includes Stair Climber | Without Stair Climber |
| Load Capacity | 1680 lbs. |
| Material | Steel |
| Max. Tank Dia. Acetylene | 12-1/2" |
| Max. Tank Dia. Acetylene | 12 1/2" |
| Max. Tank Dia. Oxygen | 9-1/2" |
| Max. Tank Dia. Oxygen | 9 1/2" |
| Non-marking Axle-mounted Wheels | No |
| Nose Plate Depth | 13" |
| Nose Plate Material | Steel |
| Nose Plate Profile | Standard |
| Nose Plate Thickness | 3/32" |
| Nose Plate Type | Solid Straight |
| Nose Plate Width | 24" |
| Nose Plate Wxd | 13" x 24" |
| Overall Depth | 12 1/2" |
| Overall Height | 46" |
| Overall Height - Cylinder Lowered | 46" |
| Overall Height - Cylinder Raised | 62" |
| Overall Hxwxd | 46" x 40" x 12.5" |
| Overall Width | 40" |
| Securing Mechanism | Perma Clamp |
| Securing Mechanism Height | 26" |
| Tool Tray Height | 5" |
| Tool Tray Height | 31" |
| Tool Tray Width | 24" |
| Tool Tray Width | 22 1/2" |
| Type | Standard |
| Weight | 117 lbs. |
| Wheel Bearings | Sealed |
| Wheel Dia. | 30" |
| Wheel Type | Auto Tire |
| Wheel Width | 6" |
| Width | 40" |
Shipping Info:
| Ship weight (kg) | 52.2 |
| Ship height (cm) | 132.08 |
| Ship length (cm) | 121.92 |
| Ship width (cm) | 101.6 |
| HS code | 8716805090 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Overall Width | Overall Depth | Load Capacity | Handle Type | Wheel Type | Wheel Bearings | Max. Tank Dia. Oxygen | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
810-6 | 42" | 22" | 8" | 200 lbs. | Continuous | Semi Pneumatic | Ball | 7 3/4" | €170.44 | |
 |
935-8S | 45" | 21" | 6 1/2" | 250 lbs. | T Shape | Semi Pneumatic | Ball | 8 1/2" | €298.07 | |
 |
820-10 | 45" | 30" | 6 1/2" | 400 lbs. | Continuous Frame Flow Back | Semi Pneumatic | Ball | 7 3/4" | €253.26 | |
 |
860-14 | 42" | 21" | 6 1/2" | 400 lbs. | Continuous Frame Flow Back | Semi Pneumatic | Ball | 9 1/2" | €475.05 | |
 |
861-16 | 42" | 27" | 9 1/2" | 780 lbs. | Continuous Frame Flow Back | Pneumatic | Ball | 9 1/2" | €560.60 | |
 |
863-20 | 42" | 31" | 6 1/2" | 780 lbs. | Continuous Frame Flow Back | Steel | Plain | 9 1/2" | €687.76 | |
 |
600-10 | 50" | 18" | 6 1/2" | 400 lbs. | Continuous Frame Flow Back | Semi Pneumatic | Ball | 9 1/2" | €497.48 |
