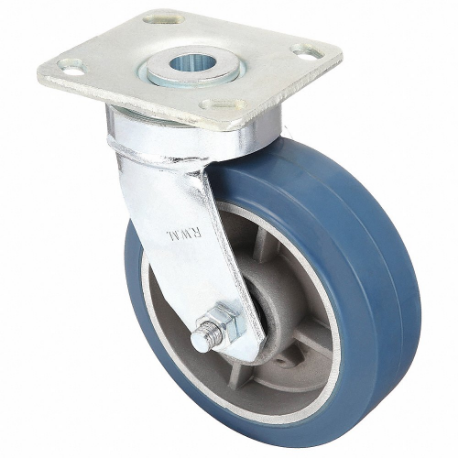

RWM 48-RAB-0820-S-EHT Plate Caster, 8 Inch Dia, 9 1/2 Inch Height, Swivel Caster
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€159.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Dollies, Waste Disposal Trucks, Floor Trucks, And Shop Carts |
| Brake Type | No Brake Included |
| Caster Brake Included | No |
| Caster Brake Type | No Brake |
| Caster Core Material | Aluminum |
| Caster Features | Maintenance Free |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Plate Hole Pattern | B |
| Caster Shape | Standard |
| Caster Sub-type | Swivel |
| Caster Temp. Range Available | Yes |
| Caster Type | Swivel |
| Compatible Wheel Manufacturer Model Number | RAB-0820-08 |
| Core Color | Silver |
| Duty Rating | Medium Duty |
| Extended Lead | No |
| Features | MainteNaNce Free |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Includes | Complete Caster |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2.625" x 3" |
| Load Capacity | 750 lbs. |
| Load Rating | 750 lbs. |
| Load Rating Range | 300 lbs. to 999 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 9 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4" x 4.5" |
| Non-marking | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 3" x 3.625" |
| Plate Caster Bolt Hole Pattern | B |
| Replacement Wheel | Mfr. No. RAB-0820-08 |
| Standards | Ansi Icwm |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball, Single Ball |
| Thread Guards | No |
| Tread Material, Wheel Material | Rubber |
| Tread Shape | Standard |
| Wheel Bearing Type | Ball |
| Wheel Color | Blue |
| Wheel Core Material | Aluminum |
| Wheel Diameter | 8" |
| Wheel Hardness Rating | 75 Shore A |
| Wheel Width | 2" |
| Wheel/tread Color | Blue |
| Wheel/tread Hardness | 75 Shore A |
| Wheel/tread Hardness Rating | Soft |
Shipping Info:
| Ship weight (kg) | 4.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Caster Brake Type | Wheel Bearing Type | Load Rating | Mounting Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

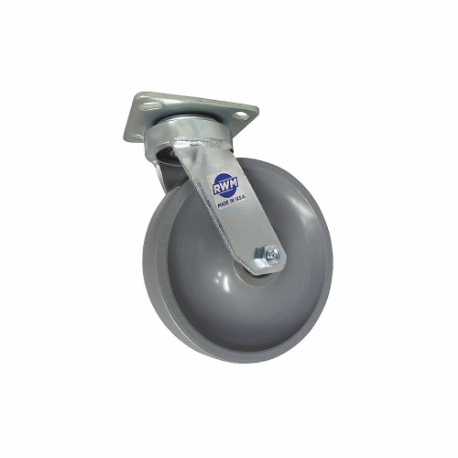

48-SWB-0520-R | Rigid | B | 2 5/8" x 3" | 3" x 3 5/8" | No Brake Included | Precision Ball | 500 lbs. | 6 1/2" | €52.97 | |
 |

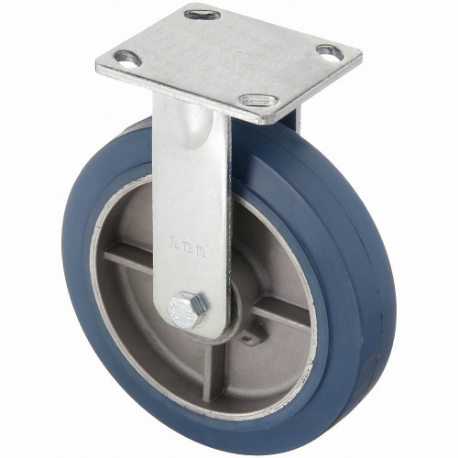

48-RAB-0620-R-EHT | Rigid | B | 2 5/8" x 3" | 3" x 3 5/8" | No Brake Included | Precision Ball | 615 lbs. | 7 1/2" | €89.31 | |
 |

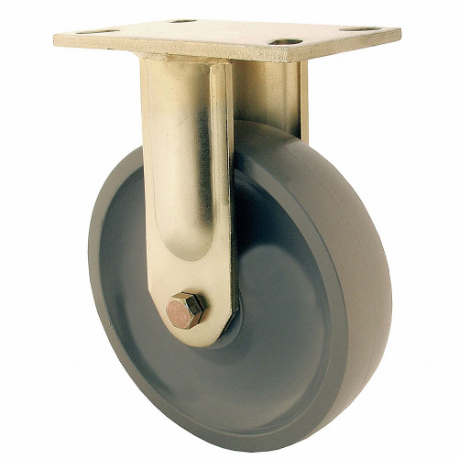

68-GTB-0820-R | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | No Brake Included | Precision Ball | 1800 lbs. | 10 1/8" | €208.65 | |
 |

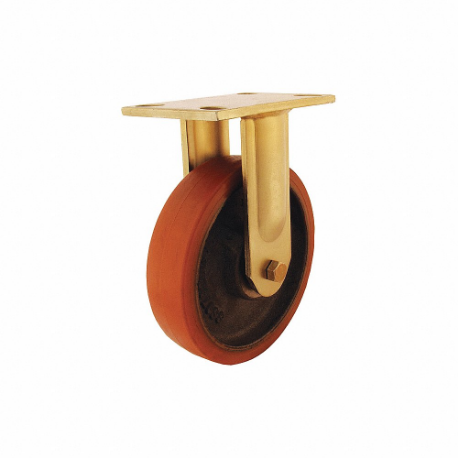

68-UIB-0820-R-INF | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | No Brake Included | Precision Ball | 2000 lbs. | 10 1/8" | €298.39 | |
 |
68-UAB-0821-R-92A | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | No Brake Included | Precision Ball | 1500 lbs. | 10 1/8" | €202.42 | |
 |

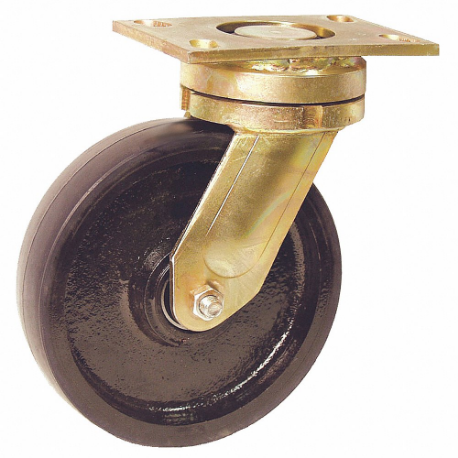

68-GTB-0820-S | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | No Brake Included | Precision Ball | 1800 lbs. | 10 1/8" | €357.63 | |
 |

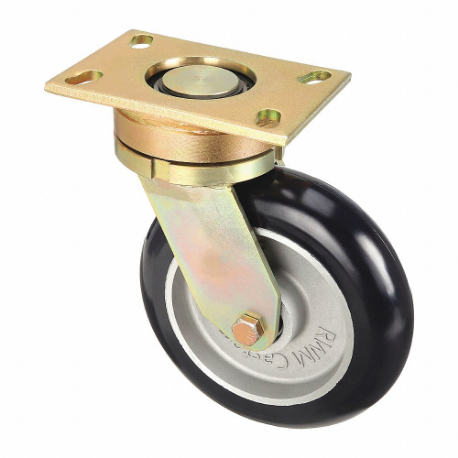

68-UAB-0821-S-92A | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | No Brake Included | Precision Ball | 1500 lbs. | 10 1/8" | €370.07 |
