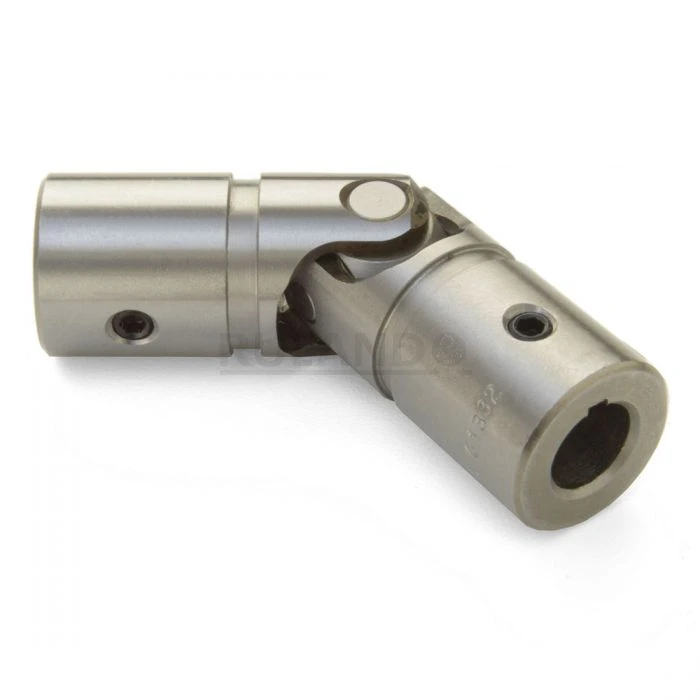

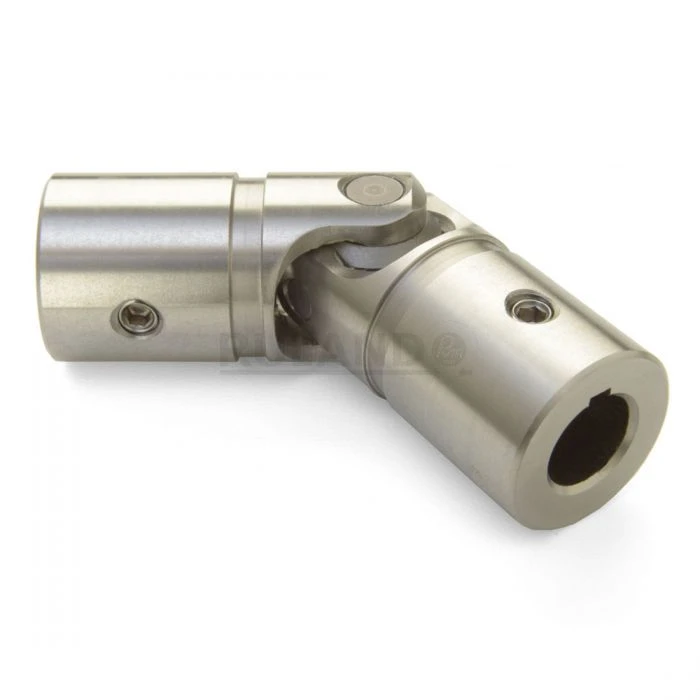

RULAND MANUFACTURING USSK12-3/8 -8MM-SS 3/8 x 8mm Single Universal Joint, Friction Bearing, SS, Set Screw With Keyway, 0.745 Inch OD, 2.688 Inch Lg.
Item: DK6YQGModel: USSK12-3/8 -8MM-SS
7 In Stock
3/8"
8 mm
3/8"
Stainless Steel
2.688"
3/8"
Ships within 2 days via
€530.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Universal Joint |
| B1 Maximum Shaft Penetration | 0.95" |
| B2 Max Shaft Penetration | 0.95" |
| Bore (b1) | 0.375" |
| Bore Tolerance | -0" to +0.001" |
| Broached Set Screw | #10-32 |
| Hub Depth (lh) | 0.95" |
| Joint Outer Diameter (od) | 0.745" |
| Keyway (k1) Size | 3/32" |
| Keyway (k2) | 2 mm |
| Length (l) | 2.688" |
| Matching Boot Cover | Uboot12/19-Ni-Kit |
| Material Specification | Yokes: 303 Stainless Steel |
| Max Operating Angle | 45° |
| Peak Torque | 875 lbs.-in. |
| Rated Torque | 175 lbs.-in. |
| Recommended Lubricant | Lubriplate No. 1200-2 |
| Screw Finish | Bright |
| Small Bore (b2) | 8 mm |
| Yoke Length (ly) | 1.344" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship length (cm) | 6.83 |
| Country of Origin | US |
Product Variants
| Model | Rated Torque | Bore Tolerance | Price | |
|---|---|---|---|---|
| USSK12-3/8 -6MM-SS | 175 lbs.-in. | -0" to +0.001" | €530.02 | |
| USSK12-3/8 -6MM-F | 250 lbs.-in. | -0" to +0.001" | €420.35 | |
| USSK12-3/8 -7MM-F | 250 lbs.-in. | -0" to +0.001" | €400.55 | |
| USSK12-3/8 -8MM-F | 250 lbs.-in. | -0" to +0.001" | €420.35 | |
| USSK12-3/8 -7MM-SS | 175 lbs.-in. | -0" to +0.001" | €530.02 | |
| USSK12-3/8 -9MM-SS | 175 lbs.-in. | -0" to +0.001" | €530.02 | |
| USSK12-3/8 -9MM-F | 250 lbs.-in. | -0" to +0.001" | €420.35 |
