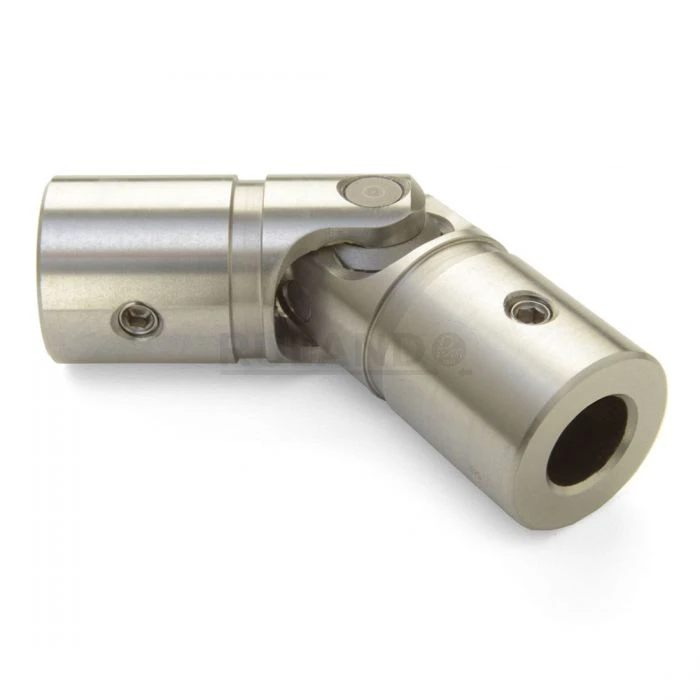

RULAND MANUFACTURING USS6-4MM-4MM-SS 4mm x 4mm Single Universal Joint, Friction Bearing, SS, Set Screw, 9.4mm OD, 44.5mm Lg.
Item: DK6YPEModel: USS6-4MM-4MM-SS
7 In Stock
4 mm
4 mm
Stainless Steel
44.5 mm
4 mm
Ships within 2 days via
€399.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Universal Joint |
| B1 Maximum Shaft Penetration | 17 mm |
| B2 Max Shaft Penetration | 17 mm |
| Bore (b1) | 4 mm |
| Bore Tolerance | -0 mm to +0.025 mm |
| Broached Set Screw | #2-56 |
| Hub Depth (lh) | 17 mm |
| Joint Outer Diameter (od) | 9.4 mm |
| Length (l) | 44.5 mm |
| Matching Boot Cover | Uboot6/10-Ni-Kit |
| Material Specification | Yokes: 303 Stainless Steel |
| Max Operating Angle | 45° |
| Peak Torque | 8.5 N-m |
| Rated Torque | 1.7 N-m |
| Recommended Lubricant | Lubriplate No. 1200-2 |
| Screw Finish | Bright |
| Small Bore (b2) | 4 mm |
| Yoke Length (ly) | 22.2 mm |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship length (cm) | 4.45 |
| Country of Origin | US |
Product Variants
| Model | Rated Torque | Bore Tolerance | Screw Material | Price | |
|---|---|---|---|---|---|
| USS10-6MM-6MM-F | 15.3 N-m | -0 mm to +0.025 mm | - | €296.98 | |
| USS10-6MM-6MM-SS | 10.7 N-m | -0 mm to +0.025 mm | - | €339.63 | |
| USS10-7MM-6MM-F | 15.3 N-m | -0 mm to +0.025 mm | - | €371.62 | |
| USS10-7MM-6MM-SS | 10.7 N-m | -0 mm to +0.025 mm | - | €494.98 | |
| USS10-7MM-7MM-SS | 10.7 N-m | -0 mm to +0.025 mm | - | €339.63 | |
| USS10-7MM-7MM-F | 15.3 N-m | -0 mm to +0.025 mm | - | €296.98 | |
| USS12-6MM-6MM-F | 28.2 N-m | -0 mm to +0.025 mm | - | €312.22 |
