RULAND MANUFACTURING TSP-16-8-SS-LH Threaded Shaft Collar, 2 Piece, Threaded, Clamp On, 1 Inch-8 Bore Thread Size
Item: CT9MXTModel: TSP-16-8-SS-LHCross Ref: 805HD4
7 In Stock
Ships within 2 days via
5.00% off
€113.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Thread Size | 1"-8 |
| Bore Type | Threaded |
| Clearance Dia. | 2.03" |
| Collar Construction | Two Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Diameter | 1 3/4" |
| Collar Width | 1/2" |
| Construction | Two Piece |
| For Shaft Dia. | 1" |
| For Shaft Diameter | 1" |
| Included Screws | (2) Clamp Screw |
| Max. Operating Temp. | 350°F |
| Min. Operating Temp. | -40°F |
| Outside Dia. | 1 3/4" |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 17/25" |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | 18-8 300 Series |
| Screw Seating Torque | 110 lbs.-in. |
| Screw Thread Size | 1/4"-65 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Thread Direction | Left Hand |
| Thread Type | Left Hand |
| Width Tolerance | -0.01" to +0.003" |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 1.5 |
| Ship length (cm) | 4 |
| Ship width (cm) | 3.99 |
| Country of Origin | US |
Product Variants
| Model | Collar Material | Outside Dia. | Screw Material | Clearance Dia. | Collar Width | For Shaft Dia. | Screw Location From Center | Screw Seating Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TSP-4-20-SS-LH | Stainless Steel | 5/8" | Stainless Steel | 0.77" | 9/32" | 1/4" | 0.21" | 8 lbs.-in. | €54.78 | |
| TSP-2-32-SS-LH | Stainless Steel | 5/8" | Stainless Steel | 0.77" | 9/32" | 0.188" | 0.21" | 8 lbs.-in. | €56.10 | |
| TSP-3-32-SS-LH | Stainless Steel | 5/8" | Stainless Steel | 0.77" | 9/32" | 0.188" | 0.21" | 8 lbs.-in. | €56.10 | |
| TSP-3-24-SS-LH | Stainless Steel | 5/8" | Stainless Steel | 0.77" | 9/32" | 0.188" | 0.21" | 8 lbs.-in. | €56.10 | |
| TSP-4-28-SS-LH | Stainless Steel | 5/8" | Stainless Steel | 0.77" | 9/32" | 1/4" | 0.21" | 8 lbs.-in. | €54.78 | |

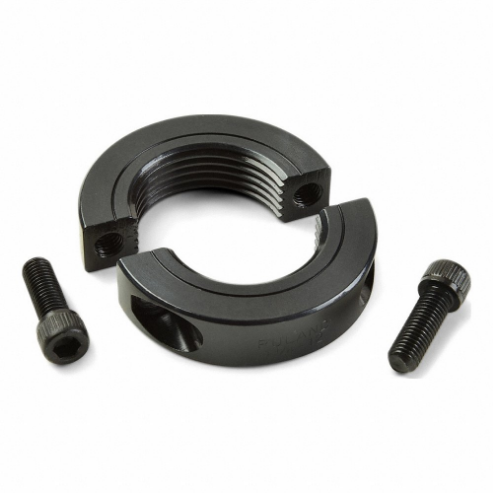

| TSP-4-28-F-LH | Carbon Steel | 5/8" | Alloy Steel | 0.77" | 9/32" | 1/4" | 0.21" | 15 lbs.-in. | €27.16 | |
| TSP-4-20-F-LH | Carbon Steel | 5/8" | Alloy Steel | 0.77" | 9/32" | 1/4" | 0.21" | 15 lbs.-in. | €28.27 |
