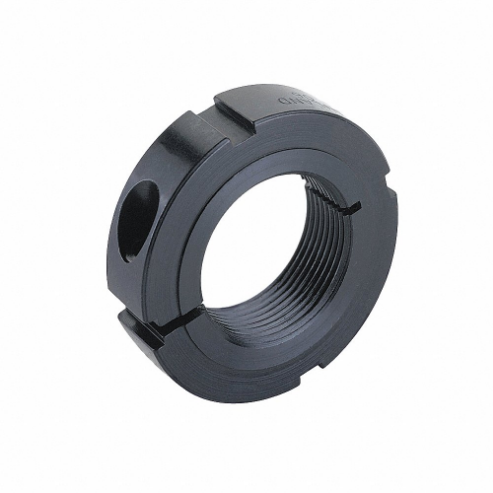

RULAND MANUFACTURING TCN-01-F N-01 Bearing Locknut, Black Oxide Steel, One-Piece Clamp Style, 1 1/8 Inch OD, 0.344 Inch Wd.
Item: AF9YDAModel: TCN-01-FCross Ref: 30VT74
7 In Stock
Ships within 2 days via
5.00% off
€18.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bearing Face Maximum Tir | 0.0005" |
| Bore Dia. | 0.469" |
| Bore Thread Size | 0.469"-32 |
| Bore Type | Threaded Bore |
| Collar Style | Bearing Locknut |
| Dimension Type | Standard |
| Face Diameter | 23/32" |
| Finish | Black Oxide |
| Grade | Grade 1215 |
| Industry Standard Size | N01 |
| Material | Lead Free Steel |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Temperature | -40°F |
| Number Of Pieces | 1 |
| Nut Construction | 1-Piece Clamp-On |
| Nut Locking Type | Clamping Socket Cap Screw |
| Nut Material | Carbon Steel |
| Nut Material Finish | Black Oxide |
| Nut Material Grade | Grade 1215 |
| Nut Outside Diameter | 1 3/8" |
| Nut Width | 11/32" |
| Operating Temp. Range | -40°F to +350°F |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 0.38" |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque | 2.1 N-m |
| Screw Thread Size | M3 x 8 |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Thread Spacing | Fine |
| Width | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 1.02 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 0.86 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Bore Dia. | Outside Dia. | Screw Location From Center | Screw Seating Torque | Bore Thread Size | Collar Style | Material | Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TCN-00-F | 0.406" | 0.938" | 0.31" | 2.1 N-m | 0.391"-32 | Bearing Locknut | Lead Free Steel | Black Oxide | €19.10 | |
| TCN-02-F | 0.578" | 1.312" | 0.45" | 4.6 N-m | 0.586"-32 | Bearing Locknut | Lead Free Steel | Black Oxide | €19.86 | |
| TCN-03-F | 0.664" | - | 0.5" | 9.5 N-m | 0.664"-32 | Bearing Locknut | Lead Free Steel | Black Oxide | €22.11 | |
| TCN-04-F | 0.781" | 1 5/8" | 0.57" | 9.5 N-m | 0.781"-32 | Bearing Locknut | Lead Free Steel | Black Oxide | €28.25 | |
| TCN-05-F | 0.953" | 1 7/8" | 0.68" | 9.5 N-m | 0.969"-32 | Bearing Locknut | Lead Free Steel | Black Oxide | €33.52 | |
| TCN-06-F | 1.172" | 2" | 0.77" | 9.5 N-m | 1.173"-18 | Bearing Locknut | Lead Free Steel | Black Oxide | €36.84 | |
| TCN-07-F | - | 2 1/4" | 0.88" | 9.5 N-m | 1.376"-18 | Bearing Locknut | Lead Free Steel | Black Oxide | €42.18 |
