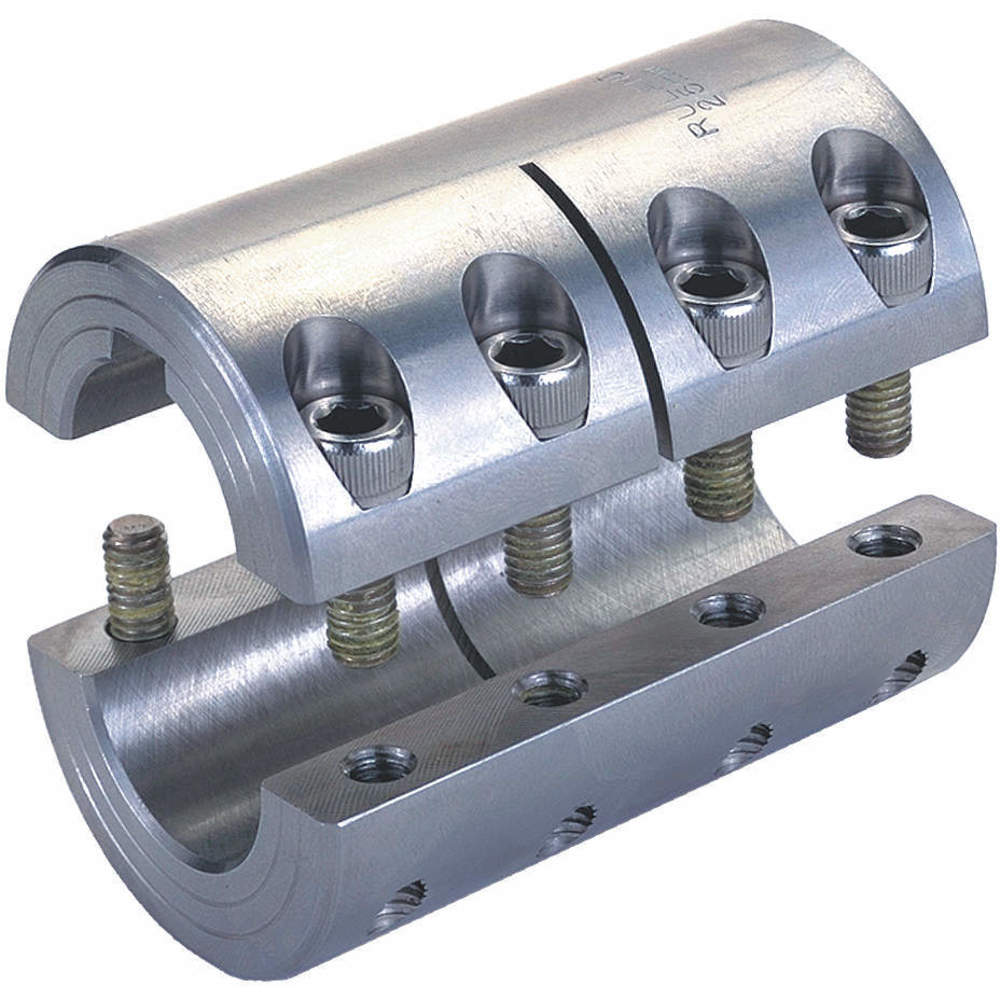

RULAND MANUFACTURING SPC-19-16-SS 1-3/16 x 1 Inch Rigid Coupling, 303 SS, Two-Piece Clamp Style With Keyway, 2 1/16 Inch OD, 3 1/4 Inch Lg.
Item: AF9WZPModel: SPC-19-16-SSCross Ref: 30VK13
7 In Stock
1 3/16"
1"
Stainless Steel
1 3/16"
Ships within 2 days via
10.00% off
€932.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rigid Shaft Coupling |
| Bore Diameter 1 | 1 3/16" |
| Bore Diameter 2 | 1" |
| Bore Tolerance | +0.0005" to +0.002" |
| Bore Type | Round Keyed |
| Clearance Dia. | 2.242" |
| Clearance Diameter | 2.24" |
| Coupling Construction | Two-Piece |
| Coupling Material | Stainless Steel |
| Coupling Material Finish | Bright |
| Coupling Material Grade | Grade 303 |
| Coupling Outside Diameter | 2 1/16" |
| Different Bore Sizes | Yes |
| Fastener Tightening Torque | 110 lbs.-in. |
| Features | Precision Honed Bores, Vibration Resistant Screws |
| Grade | Grade 303 |
| Included Screws | (8) Clamp Screws |
| Keyway Depth 1 | 1/8" |
| Keyway Depth 2 | 1/8" |
| Keyway Width | 1/4" x 1/4" |
| Keyway Width 1 | 1/4" |
| Keyway Width 2 | 1/4" |
| Material | Stainless Steel |
| Max. Rpm | 4000 RPM |
| Max. Torque | 1200 lbs.-in. |
| Maximum Bore Diameter | 1 3/16" |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Temperature | -40°F |
| Number Of Locking Screws | 8 |
| Outside Dia. | 2.062" |
| Overall Length | 3 1/4" |
| Rated Torque | 1200 lbs.-in. |
| Recommended Gap | 0.094" |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 0.807" |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | 18-8 300 Series |
| Screw Thread Size | 1/4"-28 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Type | Two Piece Clamp, With Keyway |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.93 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 10.16 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Clearance Dia. | Bore Diameter 1 | Bore Diameter 2 | Coupling Outside Diameter | Coupling Material | Overall Length | Screw Material | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SPC-32-32-SS | 3.717" | 2" | 2" | 3 3/8" | Stainless Steel | 4 7/8" | Stainless Steel | 8200 lbs.-in. | €3,316.77 | |
| SPC-6-4-F | 1.033" | 3/8" | 1/4" | 7/8" | Carbon Steel | 1 3/8" | Alloy Steel | 450 lbs.-in. | €261.63 | |
| SPC-6-4-SS | 1.033" | 3/8" | 1/4" | 7/8" | Stainless Steel | 1 3/8" | Stainless Steel | 240 lbs.-in. | €385.34 | |
| SPC-10-10-F | 1.514" | 5/8" | 5/8" | 1 5/16" | Carbon Steel | 2" | Alloy Steel | 1600 lbs.-in. | €168.89 | |
| SPC-10-10-SS | 1.514" | 5/8" | 5/8" | 1 5/16" | Stainless Steel | 2" | Stainless Steel | 950 lbs.-in. | €338.75 | |
| SPC-10-8-F | 1.514" | 5/8" | 1/2" | 1 5/16" | Carbon Steel | 2" | Alloy Steel | 1600 lbs.-in. | €272.01 | |
| SPC-10-8-SS | 1.514" | 5/8" | 1/2" | 1 5/16" | Stainless Steel | 2" | Stainless Steel | 950 lbs.-in. | €453.76 |
