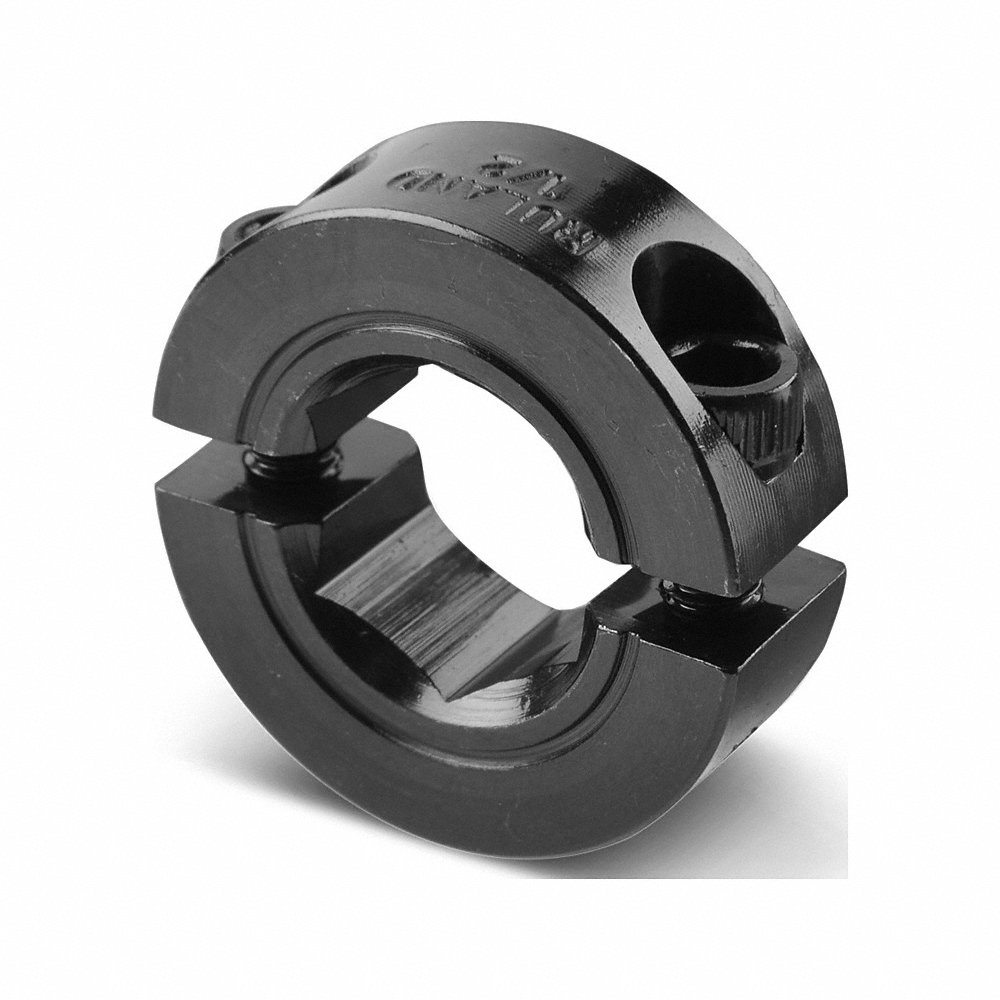

RULAND MANUFACTURING SP-6HX-F 3/8 Inch Hex Bore Shaft Collar, Black Oxide Steel, Two-Piece Clamp Style, 7/8 Inch OD, 0.343 Inch Wd.
Item: DK6FEDModel: SP-6HX-FCross Ref: 805FT3
7 In Stock
Ships within 2 days via
5.00% off
€41.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore (b1) | 0.375" |
| Bore Tolerance | +0.0005" to +0.002" |
| Clearance Diameter (c) Max | 1.027" |
| Finish Specification | Hot Process Black Oxide, Impregnated With Naphthenic Oil, Centrifugally Dried |
| Forged Clamp Screw | #6-32 |
| Hex Wrench Size | 7/64" |
| Material Specification | 1215 Carbon Steel Bar |
| Number Of Screws | 2 EA |
| Outer Diameter | 7/8" |
| Recommended Gap | 0.063" |
| Recommended Shaft Tolerance | -0.0005" to 0" |
| Screw Finish | Black Oxide |
| Screw Location (r) | 0.313" |
| Screw Material | Alloy Steel |
| Seating Torque | 28 lbs.-in. |
| Temperature | -40°F to 350°F |
| Width (w) | 0.343" |
| Width Tolerance | -0.01" to +0.003" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
