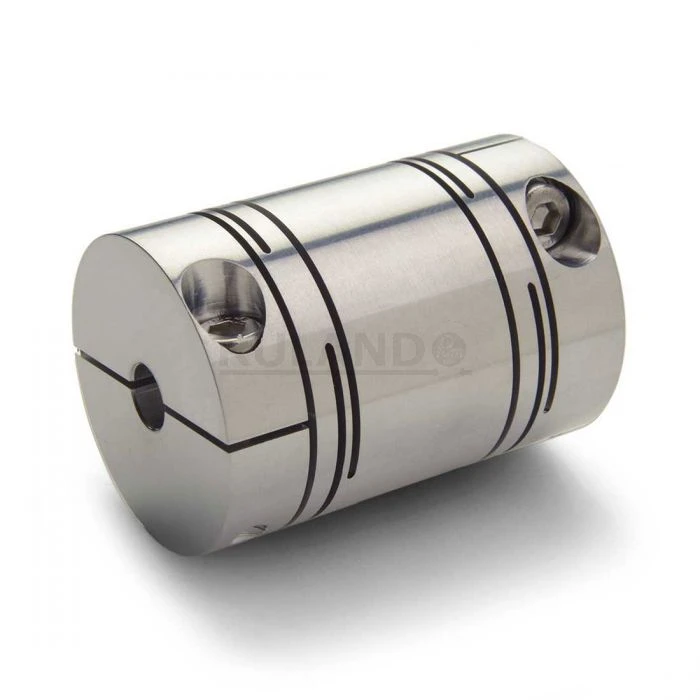

RULAND MANUFACTURING RLC13-9MM-1/4 -A 9mm x 0.250 Inch Long Slit Coupling, Aluminum, Clamp Style, 0.787 Inch OD, 1.024 Inch Lg.
Item: DK6TVWModel: RLC13-9MM-1/4 -A
7 In Stock
9 mm x 1/4"
Ships within 2 days via
€139.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Angular Misalignment | 3° |
| Axial Motion | 0.02" |
| B1 Maximum Shaft Penetration | 0.339" |
| B2 Max Shaft Penetration | 0.339" |
| Balanced Design | Yes |
| Bore (b1) | 9 mm |
| Bore Tolerance | -0" to +0.001" |
| Cap Screw | M2.5 |
| Clearance Diameter (c) Max | 0.858" |
| Dynamic Torque Non-reversing | 12.8 lbs.-in. |
| Dynamic Torque Reversing | 8.4 lbs.-in. |
| Finish Specification | Surtec 650 |
| Full Bearing Support Required | Yes |
| Hex Wrench Size | 2 mm |
| Length (l) | 1.024" |
| Material Specification | 7075-T651 Extruded And Drawn Aluminum Bar |
| Max. Speed | 7500 RPM |
| Moment Of Inertia | 0.0033087 lbs.-sq. in. |
| Number Of Screws | 2 |
| Outer Diameter | 0.787" |
| Parallel Misalignment | 0.001" |
| Peak Torque | 21.7 lbs.-in. |
| Screw Finish | Bright |
| Screw Material | Stainless Steel |
| Seating Torque | 0.73 N-m |
| Small Bore (b2) | 0.25" |
| Temperature | -110°F to 175°F |
| Torsional Stiffness | 20.4 lbs.-in./deg. |
| Zero-backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2 |
| Ship length (cm) | 2.6 |
| Ship width (cm) | 2 |
| Country of Origin | IE |
Product Variants
| Model | Torsional Stiffness | Axial Motion | Parallel Misalignment | Bore Dia. 1 | Bore Dia. 2 | Coupling Outside Dia. | Overall Length | Angular Misalignment | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RLC10-1/4 -3MM-A | 12.4 lbs.-in./deg. | 0.016" | 0.008" | 1/4" | 3 mm | 5/8" | 0.922" | 2.5° | €201.95 | |
| RLC13-1/4 -4MM-A | 20.4 lbs.-in./deg. | 0.02" | 0.01" | 1/4" | 4 mm | 0.781" | 1.031" | 3° | €204.57 | |
| RLC10-1/4 -4MM-A | 12.4 lbs.-in./deg. | 0.016" | 0.008" | 1/4" | 4 mm | 5/8" | 59/64" | 2.5° | €183.56 | |
| RLC13-1/4 -5MM-A | 20.4 lbs.-in./deg. | - | 0.01" | 1/4" | 5 mm | 0.781" | 1 1/32" | 3° | €230.09 | |
| RLC10-1/4 -5MM-A | 12.4 lbs.-in./deg. | 0.016" | 0.008" | 1/4" | 5 mm | 5/8" | 59/64" | 2.5° | €206.45 | |
| RLC13-1/4 -6MM-A | 20.4 lbs.-in./deg. | - | 0.01" | 1/4" | 6 mm | 0.781" | 1 1/32" | 3° | €204.57 | |
| RLC16-1/4 -6MM-A | 34.5 lbs.-in./deg. | 0.028" | 0.016" | 1/4" | 6 mm | 0.984" | 1 11/32" | 3° | €196.33 |
