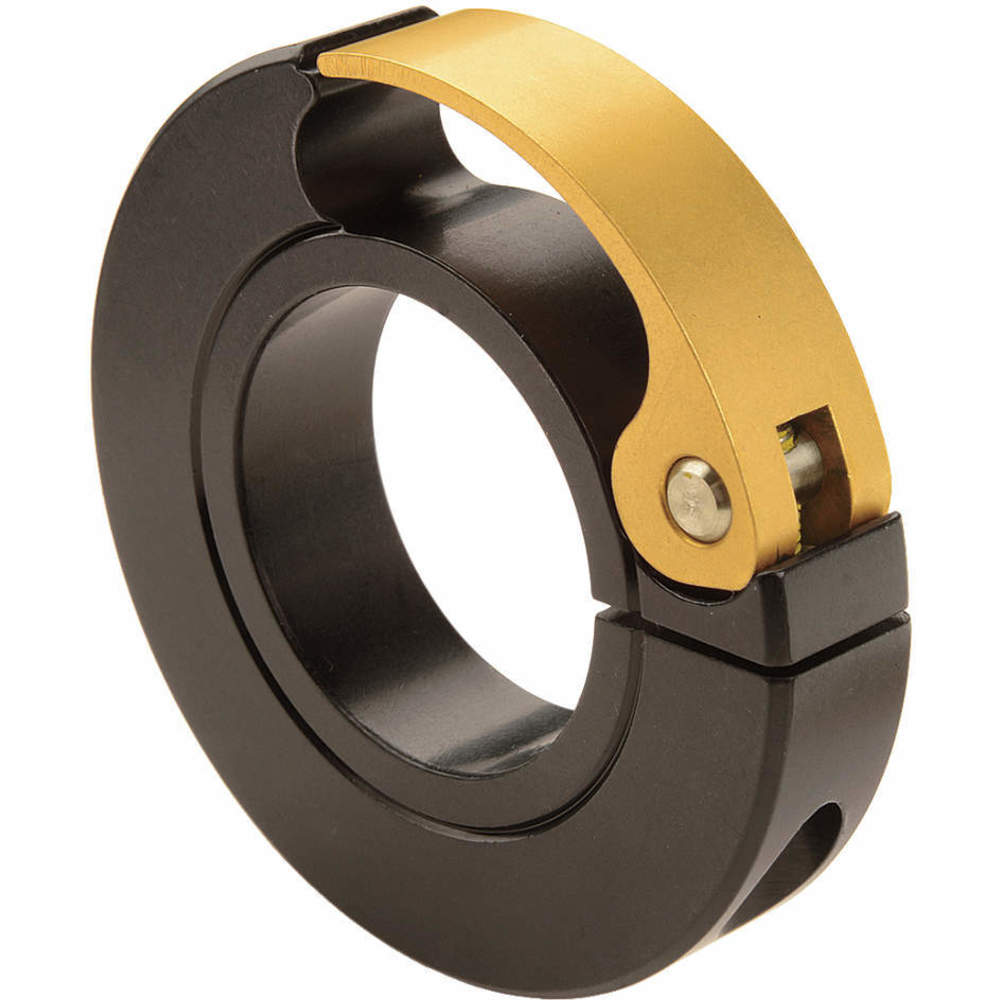

RULAND MANUFACTURING QCL-22-A 1 3/8 Inch Quick Clamping Shaft Collar, Aluminum, Quick Release, 2.953 Inch OD, 0.591 Inch Wd.
Item: AE3GWVModel: QCL-22-ACross Ref: 5DFH8
7 In Stock
Ships within 2 days via
10.00% off
€118.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Diameter | 1 3/8" |
| Bore Tolerance | +0.0005" to +0.002" |
| Bore Type | Round |
| Center To Lever Top | 1.47" |
| Clearance Dia. | 3" |
| Collar Construction | 1-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 6061 |
| Collar Outside Diameter | 2 15/16" |
| Collar Style | Clamp, Quick |
| Collar Width | 19/32" |
| Dimension Type | Standard |
| Finish | Anodized |
| For Shaft Diameter | 1 3/8" |
| Grade | Grade 2024 |
| Handle Color | Gold |
| Handle Material | Aluminum |
| Handle Material Finish | Anodized |
| Included Screws | (1) Hex Socket Cap Screw |
| Inside Dia. | 1 3/8" |
| Material | Aluminum |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | -40°F |
| Number Of Pieces | 1 |
| Operating Temp. Range | -40°F to +200°F |
| Outside Dia. | 75 mm |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 304 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Type | Quick Clamp |
| Width | 15 mm |
| Width Tolerance | -0.01" to +0.003" |
| Withstand Temp. | 200°F |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 1.5 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Bore Dia. | Outside Dia. | Collar Width | Bore Tolerance | Included Screws | Handle Material Finish | Collar Outside Diameter | For Shaft Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QCL-6-A | 3/8" | 38 mm | 13/32" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 1 1/2" | 3/8" | €70.70 | |
| QCL-8-A | 1/2" | 38 mm | 13/32" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 1 1/2" | 1/2" | €70.70 | |
| QCL-10-A | 5/8" | 38 mm | 13/32" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 1 1/2" | 5/8" | €70.70 | |
| QCL-12-A | 3/4" | 50 mm | 1/2" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 2" | 3/4" | €83.89 | |
| QCL-16-A | 1" | 50 mm | 1/2" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 2" | 1" | €86.60 | |
| QCL-18-A | 1 1/8" | 50 mm | 1/2" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 2" | 1 1/8" | €82.50 | |
| QCL-20-A | - | 75 mm | 19/32" | +0.0005" to +0.002" | (1) Hex Socket Cap Screw | Anodized | 2 15/16" | 1 1/4" | €131.53 |
