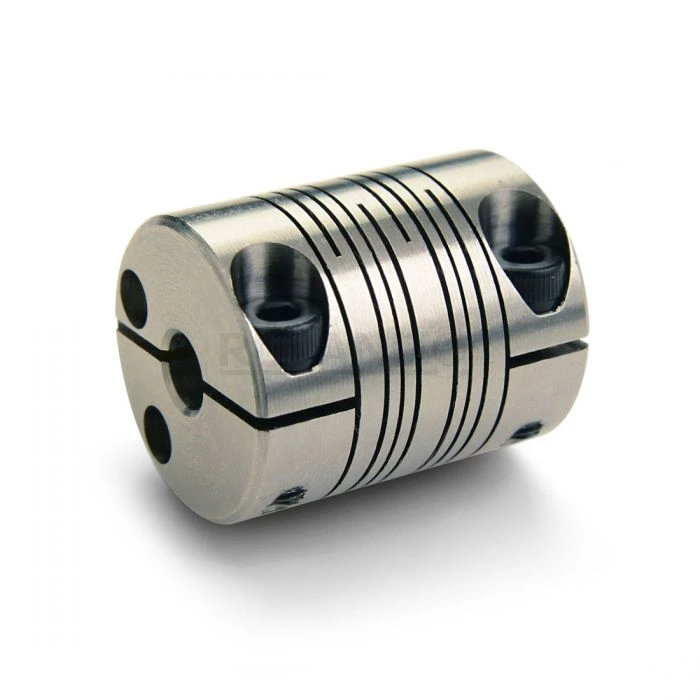

RULAND MANUFACTURING MWC30-9-8-SS 9mm x 8mm Four Beam Coupling, SS, Clamp Style, 30.0mm OD, 38.0mm Lg.
Item: DK6KQQModel: MWC30-9-8-SS
7 In Stock
9 mm x 8 mm
Stainless Steel
Ships within 2 days via
€219.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Angular Misalignment | 3° |
| Axial Motion | 0.25 mm |
| B1 Max Shaft Penetration | 18.2 mm |
| B2 Max Shaft Penetration | 18.2 mm |
| Balanced Design | Yes |
| Bore (b1) | 9 mm |
| Bore Tolerance | -0 mm to +0.025 mm |
| Cap Screw | M4 |
| Dynamic Torque Non-reversing | 5.20 N-m |
| Dynamic Torque Reversing | 2.6 N-m |
| Finish Specification | Bright, No Plating |
| Full Bearing Support Required | Yes |
| Hex Wrench Size | 3 mm |
| Length (l) | 38 mm |
| Material Specification | Type 303 Austenitic, Non-Magnetic Bar |
| Max. Speed | 6000 RPM |
| Moment Of Inertia | 20.920 x 10 |
| Number Of Screws | 2 EA |
| Outer Diameter | 30.0 mm |
| Parallel Misalignment | 0.38 mm |
| Recommended Hex Key | Metric Hex Keys |
| Recommended Shaft Tolerance | -0.013 mm to 0 mm |
| Screw Finish | Black Oxide |
| Screw Material | Alloy Steel |
| Seating Torque | 4.6 N-m |
| Small Bore (b2) | 8 mm |
| Static Torque | 10.4 N-m |
| Temperature | -40°F to 350°F |
| Torque Wrench | TW:BT-1R-1/4-41.0 |
| Torsional Stiffness | 916 N-m/deg. |
| Zero-backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 3 |
| Ship length (cm) | 3.8 |
| Ship width (cm) | 3 |
| Country of Origin | US |
Product Variants
| Model | Torsional Stiffness | Axial Motion | Parallel Misalignment | Overall Length | Different Bore Sizes | Coupling Material | Rated Torque | Moment Of Inertia | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MWC25-10-6-A | 0.57 N-m/deg. | 0.25 mm | 0.38 mm | 30 mm | Yes | Aluminum | 3.1 N-m | 0.000002955 kgf/sq. m | €105.59 | |
| MWC25-10-6-SS | 1.2 N-m/deg. | 0.25 mm | 0.38 mm | 30 mm | Yes | Stainless Steel | 4.6 N-m | 0.000007871 kgf/sq. m | €260.50 | |
| MWC25-10-7-A | 0.57 N-m/deg. | 0.25 mm | 0.38 mm | 30 mm | Yes | Aluminum | 3.1 N-m | 0.000002955 kgf/sq. m | €105.50 | |
| MWC25-10-7-SS | 1.2 N-m/deg. | 0.25 mm | 0.38 mm | 30 mm | Yes | Stainless Steel | 4.6 N-m | 0.000007871 kgf/sq. m | €262.29 | |
| MWC25-10-8-A | 0.57 N-m/deg. | 0.25 mm | 0.38 mm | 30 mm | Yes | Aluminum | 3.1 N-m | 0.000002955 kgf/sq. m | €105.59 | |
| MWC15-3-3-A | 0.23 N-m/deg. | 0.12 mm | 0.2 mm | 22 mm | No | Aluminum | 0.85 N-m | 0.000000293 kgf/sq. m | €87.78 | |
| MWC15-3-3-SS | 0.45 N-m/deg. | 0.12 mm | 0.2 mm | 22 mm | No | Stainless Steel | 1.3 N-m | 0.000000731 kgf/sq. m | €207.73 |
