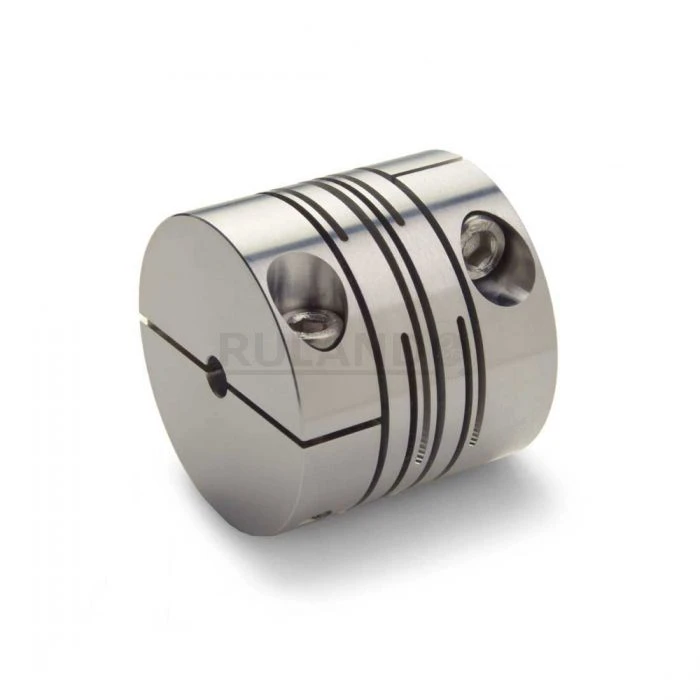

RULAND MANUFACTURING MRSC16-7-4-A 7 mm x 4 mm Short Slit Coupling, Aluminum, Clamp Style, 16.0mm OD, 19.8mm Lg.
Item: DK6TRTModel: MRSC16-7-4-A
7 In Stock
4 mm x 7 mm
Ships within 2 days via
€126.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Angular Misalignment | 2.5° |
| Axial Motion | 0.4 mm |
| B1 Max Shaft Penetration | 7.9 mm |
| B2 Max Shaft Penetration | 7.9 mm |
| Balanced Design | Yes |
| Bore (b1) | 7 mm |
| Bore Tolerance | 0 mm to 0.02 mm |
| Cap Screw | M2 |
| Clearance Diameter (c) Max | 18 mm |
| Dynamic Torque Non-reversing | 0.85 N-m |
| Dynamic Torque Reversing | 0.55 N-m |
| Finish Specification | Surtec 650 |
| Full Bearing Support Required | Yes |
| Hex Wrench Size | 1.5 mm |
| Length (l) | 19.8 mm |
| Material Specification | 7075-T651 Extruded And Drawn Aluminum Bar |
| Max. Speed | 10000 RPM |
| Moment Of Inertia | 0.000982 lbs.-sq. in. |
| Number Of Screws | 2 |
| Outer Diameter (od) | 16 mm |
| Parallel Misalignment | 0.1 mm |
| Peak Torque | 1.25 N-m |
| Screw Finish | Bright |
| Screw Material | Stainless Steel |
| Seating Torque | 0.36 N-m |
| Small Bore (b2) | 4 mm |
| Temperature | -110°F to 175°F |
| Torsional Stiffness | 1.2 N-m/deg. |
| Zero-backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.6 |
| Ship length (cm) | 1.98 |
| Ship width (cm) | 1.6 |
| Country of Origin | IE |
Product Variants
| Model | Axial Motion | Parallel Misalignment | Torsional Stiffness | Bore Dia. 1 | Bore Dia. 2 | Coupling Outside Dia. | Overall Length | Different Bore Sizes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MRSC20-10-10-A | 0.5 mm | 0.12 mm | 1.9 N-m/deg. | 10 mm | 10 mm | 20 mm | 21.5 mm | No | €208.04 | |
| MRSC25-10-10-A | 0.7 mm | 0.4 mm | 3.1 N-m/deg. | 10 mm | 10 mm | 25 mm | 25.8 mm | No | €190.47 | |
| MRSC20-10-4-A | 0.5 mm | 0.12 mm | 1.9 N-m/deg. | 10 mm | 4 mm | 20 mm | 21.5 mm | Yes | €203.42 | |
| MRSC20-10-5-A | 0.5 mm | 0.12 mm | 1.9 N-m/deg. | 10 mm | 5 mm | 20 mm | 21.5 mm | Yes | €184.97 | |
| MRSC25-10-5-A | 0.7 mm | 0.4 mm | 3.1 N-m/deg. | 10 mm | 5 mm | 25 mm | 25.8 mm | Yes | €235.55 | |
| MRSC20-10-6-A | 0.5 mm | 0.12 mm | 1.9 N-m/deg. | 10 mm | 6 mm | 20 mm | 21.5 mm | - | €184.97 | |
| MRSC25-10-6-A | 0.7 mm | 0.4 mm | 3.1 N-m/deg. | 10 mm | 6 mm | 25 mm | 25.8 mm | Yes | €190.47 |
