RULAND MANUFACTURING FHT-MCL-12E-AN 3/4 Inch Face Mount Shaft Collar with Tapped Hole, Anodized Aluminum, One-Piece Clamp Style, 40mm OD, 15mm Wd.
Item: CT9JMYModel: FHT-MCL-12E-ANCross Ref: 805NW1
7 In Stock
Ships within 2 days via
10.00% off
€68.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 3/4" |
| Bore Tolerance | 0.0005" to 0.002" |
| Bore Type | Round |
| Clearance Dia. | 47.4 mm |
| Collar Construction | 1-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Anodized |
| Collar Material Grade | Grade 2024 |
| Collar Outside Diameter | 40 mm |
| Collar Width | 15 mm |
| Component Mount Type | Face Mount Holes |
| Construction | One Piece |
| For Shaft Dia. | 3/4" |
| For Shaft Diameter | 3/4" |
| For Shaft Type | Round |
| Grade | Grade 2024 |
| Included Screws | Clamp Screw |
| Max. Operating Temp. | 93°C |
| Minimum Operating Temperature | -40°C |
| Mount Hole Thread Size | M6 |
| Outside Dia. | 40 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 14.73 mm |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Seating Torque | 9.6 N-m |
| Screw Thread Size | M6 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Metric With Inch Bore |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 4 |
| Ship length (cm) | 1.5 |
| Ship width (cm) | 1.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Collar Material | Outside Dia. | Collar Material Finish | For Shaft Dia. | Screw Location From Center | Screw Material Finish | Mount Hole Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

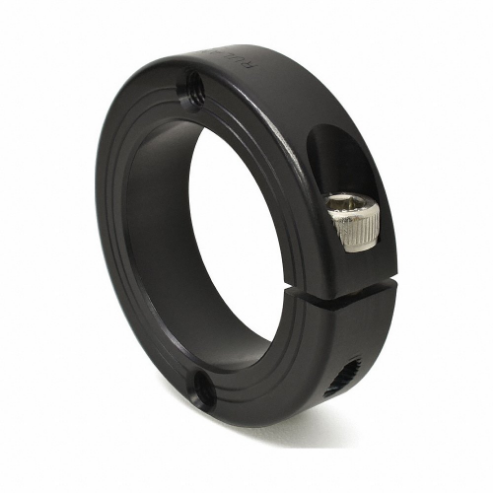

FHT-MCL-24E-AN | 1 1/2" | Aluminum | 60 mm | Anodized | 1 1/2" | 24.99 mm | Bright | M6 | €132.19 | |
 |

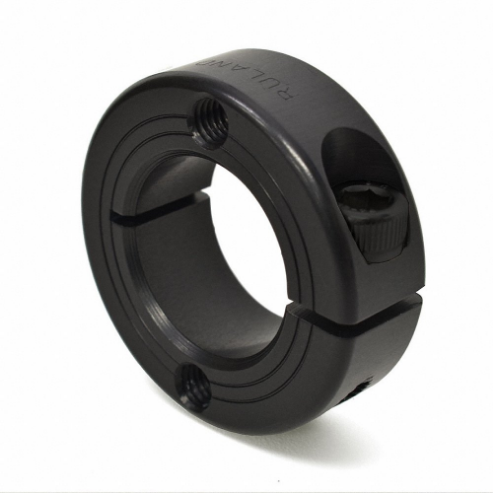

FHT-MCL-24E-F | 1 1/2" | Carbon Steel | 60 mm | Black Oxide | 1 1/2" | 24.99 mm | Black Oxide | M6 | €57.94 | |
|

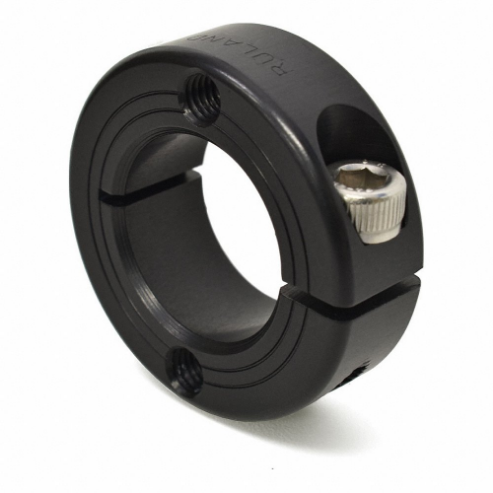

FHT-MCL-20E-AN | 1 1/4" | Aluminum | 54 mm | Anodized | 1 1/4" | 21.49 mm | Bright | M6 | €110.92 | |
|
FHT-MCL-20E-F | 1 1/4" | Carbon Steel | 54 mm | Black Oxide | 1 1/4" | 21.49 mm | Black Oxide | M6 | €44.84 | |
 |

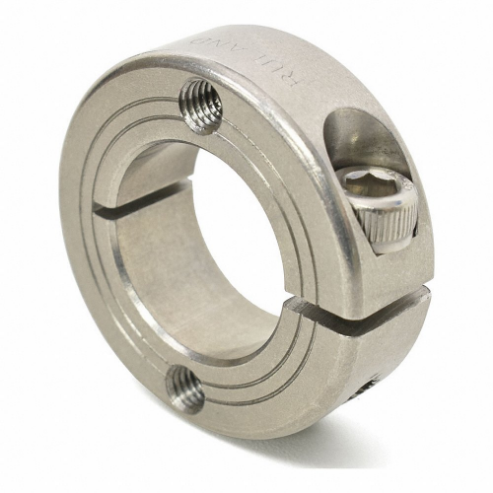

FHT-MCL-20E-SS | 1 1/4" | Stainless Steel | 54 mm | Bright | 1 1/4" | 21.49 mm | Bright | M6 | €108.66 | |
|
FHT-MCL-18E-AN | 1 1/8" | Aluminum | 48 mm | Anodized | 1 1/8" | 19 mm | Bright | M6 | €108.51 | |
|
FHT-MCL-18E-F | 1 1/8" | Carbon Steel | 48 mm | Black Oxide | 1 1/8" | 19 mm | Black Oxide | M6 | €46.43 |
