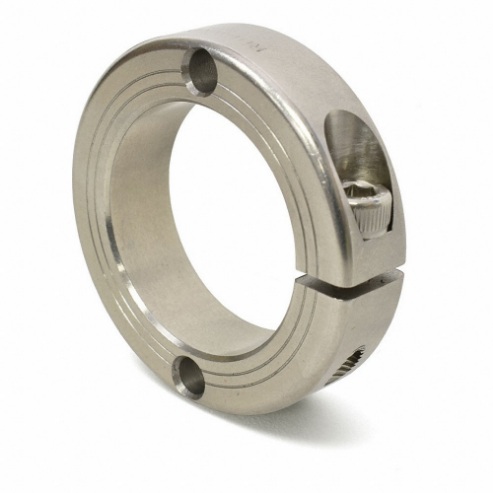

RULAND MANUFACTURING FHD-MCL-48-SS 48mm Face Mount Shaft Collar with Drilled Hole, 303 SS, One-Piece Clamp Style, 78mm OD, 19mm Wd.
Item: CT9JTMModel: FHD-MCL-48-SSCross Ref: 805NT8
7 In Stock
Ships within 2 days via
10.00% off
€371.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 48 mm |
| Bore Tolerance | 0.012 mm to 0.5 mm |
| Bore Type | Round |
| Clearance Dia. | 84.7 mm |
| Collar Construction | 1-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Diameter | 78 mm |
| Collar Width | 19 mm |
| Component Mount Type | Face Mount Holes |
| Construction | One Piece |
| For Shaft Dia. | 48 mm |
| For Shaft Diameter | 48 mm |
| For Shaft Type | Round |
| Included Screws | Clamp Screw |
| Max. Operating Temp. | 176°C |
| Minimum Operating Temperature | -40°C |
| Mount Hole Size | 8.73 mm |
| Outside Dia. | 78 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Length | 25 mm |
| Screw Location From Center | 32 mm |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Seating Torque | 23 N-m |
| Screw Thread Size | M8 x 25 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 7.8 |
| Ship length (cm) | 1.9 |
| Ship width (cm) | 1.9 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Collar Material | Outside Dia. | Screw Material | For Shaft Dia. | Screw Location From Center | Bore Tolerance | Mount Hole Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FHD-MCL-10-AN | 10 mm | Aluminum | 24 mm | Stainless Steel | 10 mm | 8.51 mm | 0.012 mm to 0.5 mm | 3.26 mm | €64.02 | |
 |
FHD-MCL-10-F | 10 mm | Carbon Steel | - | Alloy Steel | 10 mm | 8.51 mm | 0.012 mm to 0.05 mm | 3.26 mm | €24.46 | |
 |
FHD-MCL-10-SS | 10 mm | Stainless Steel | - | Stainless Steel | 10 mm | 8.51 mm | 0.012 mm to 0.5 mm | 3.26 mm | €49.93 | |
|
FHD-MCL-11-AN | 11 mm | Aluminum | 28 mm | Stainless Steel | 11 mm | 10.01 mm | 0.012 mm to 0.5 mm | 4.31 mm | €65.48 | |
|
FHD-MCL-11-F | 11 mm | Carbon Steel | 28 mm | Alloy Steel | 11 mm | 10.01 mm | 0.012 mm to 0.5 mm | 4.31 mm | €25.84 | |
|
FHD-MCL-12-AN | 12 mm | Aluminum | 28 mm | Stainless Steel | 12 mm | 10.01 mm | 0.012 mm to 0.5 mm | 4.31 mm | €65.48 | |
|
FHD-MCL-12-F | 12 mm | Carbon Steel | 28 mm | Alloy Steel | 12 mm | 10.01 mm | 0.012 mm to 0.5 mm | 4.31 mm | €25.84 |
