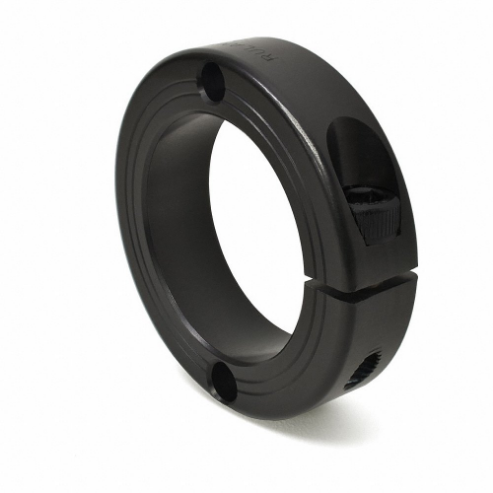

RULAND MANUFACTURING FHD-MCL-28-F 28mm Face Mount Shaft Collar with Drilled Hole, Black Oxide Steel, One-Piece Clamp Style, 48mm OD, 15mm Wd.
Item: CT9JMPModel: FHD-MCL-28-FCross Ref: 805NN1
7 In Stock
Ships within 2 days via
10.00% off
€39.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 28 mm |
| Bore Tolerance | 0.012 mm to 0.5 mm |
| Bore Type | Round |
| Clearance Dia. | 54.7 mm |
| Collar Construction | 1-Piece |
| Collar Material | Carbon Steel |
| Collar Material Finish | Black Oxide |
| Collar Material Grade | 1215 |
| Collar Outside Diameter | 48 mm |
| Collar Width | 15 mm |
| Component Mount Type | Face Mount Holes |
| Construction | One Piece |
| For Shaft Dia. | 28 mm |
| For Shaft Diameter | 28 mm |
| For Shaft Type | Round |
| Included Screws | Clamp Screw |
| Max. Operating Temp. | 176°C |
| Minimum Operating Temperature | -40°C |
| Mount Hole Size | 6.35 mm |
| Outside Dia. | 48 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Length | 16 mm |
| Screw Location From Center | 19 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque | 16 N-m |
| Screw Thread Size | M6 x 16 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| System Of Measurement | Metric |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 4.8 |
| Ship length (cm) | 1.5 |
| Ship width (cm) | 1.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Collar Material | Outside Dia. | Screw Material | For Shaft Dia. | Screw Location From Center | Bore Tolerance | Mount Hole Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
FHD-MCL-10-AN | 10 mm | Aluminum | 24 mm | Stainless Steel | 10 mm | 8.51 mm | 0.012 mm to 0.5 mm | 3.26 mm | €64.02 | |
 |
FHD-MCL-10-F | 10 mm | Carbon Steel | - | Alloy Steel | 10 mm | 8.51 mm | 0.012 mm to 0.05 mm | 3.26 mm | €24.46 | |
 |
FHD-MCL-10-SS | 10 mm | Stainless Steel | - | Stainless Steel | 10 mm | 8.51 mm | 0.012 mm to 0.5 mm | 3.26 mm | €49.93 | |
|
FHD-MCL-11-AN | 11 mm | Aluminum | 28 mm | Stainless Steel | 11 mm | 10.01 mm | 0.012 mm to 0.5 mm | 4.31 mm | €65.48 | |
|
FHD-MCL-11-F | 11 mm | Carbon Steel | 28 mm | Alloy Steel | 11 mm | 10.01 mm | 0.012 mm to 0.5 mm | 4.31 mm | €25.84 | |
|
FHD-MCL-12-AN | 12 mm | Aluminum | 28 mm | Stainless Steel | 12 mm | 10.01 mm | 0.012 mm to 0.5 mm | 4.31 mm | €65.48 | |
|
FHD-MCL-12-F | 12 mm | Carbon Steel | 28 mm | Alloy Steel | 12 mm | 10.01 mm | 0.012 mm to 0.5 mm | 4.31 mm | €25.84 |
