RULAND MANUFACTURING FHD-MCL-12E-SS 3/4 Inch Face Mount Shaft Collar with Drilled Hole, 303 SS, One-Piece Clamp Style, 40mm OD, 15mm Wd.
Item: CT9JNFModel: FHD-MCL-12E-SSCross Ref: 805NE8
7 In Stock
Ships within 2 days via
10.00% off
€69.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shaft Collar |
| Bore Dia. | 3/4" |
| Bore Tolerance | 0.0005" to 0.002" |
| Bore Type | Round |
| Clearance Dia. | 47.4 mm |
| Collar Construction | 1-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Diameter | 40 mm |
| Collar Width | 15 mm |
| Component Mount Type | Face Mount Holes |
| Construction | One Piece |
| For Shaft Dia. | 3/4" |
| For Shaft Diameter | 3/4" |
| Included Screws | Clamp Screw |
| Max. Operating Temp. | 176°C |
| Min. Operating Temp. | -40°C |
| Mount Hole Size | 6.35 mm |
| Outside Dia. | 40 mm |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 14.73 mm |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Thread Size | M6 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Metric With Inch Bore |
| Width Tolerance | -0.254 mm to +0.076 mm |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 4 |
| Ship length (cm) | 1.5 |
| Ship width (cm) | 1.5 |
| Country of Origin | US |
Product Variants
| Product | Model | Collar Material | Outside Dia. | Bore Dia. | Screw Material | Clearance Dia. | For Shaft Dia. | Screw Location From Center | Screw Material Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

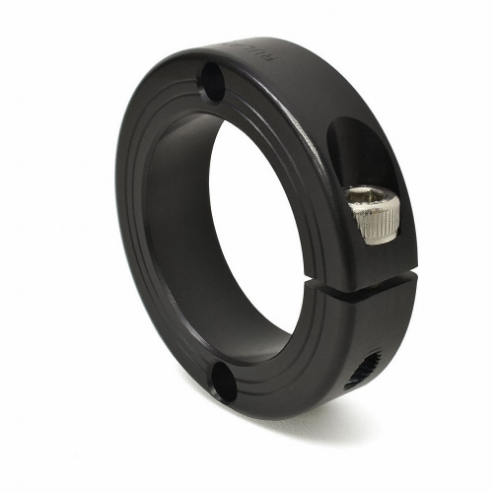

FHD-MCL-24E-AN | Aluminum | 60 mm | 1 1/2" | Stainless Steel | 65.6 mm | 1 1/2" | 24.99 mm | Bright | €129.83 | |
 |

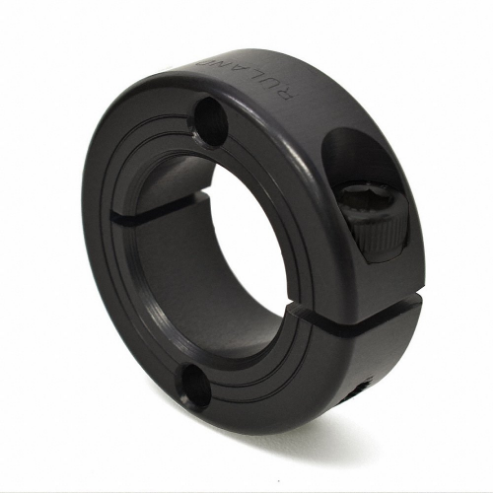

FHD-MCL-24E-F | Carbon Steel | 60 mm | 1 1/2" | Alloy Steel | 65.6 mm | 1 1/2" | 24.99 mm | Black Oxide | €56.90 | |
|

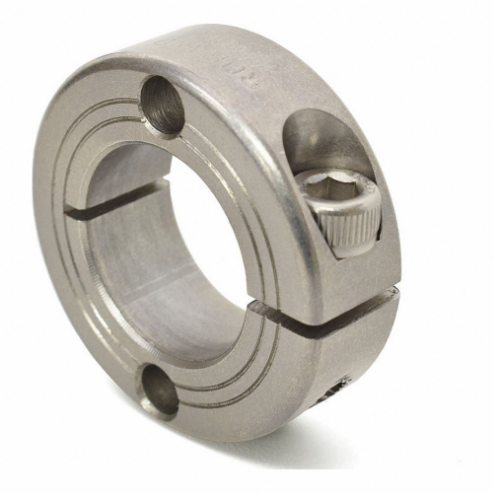

FHD-MCL-24E-SS | Stainless Steel | 60 mm | 1 1/2" | Stainless Steel | 65.6 mm | 1 1/2" | 24.99 mm | Bright | €167.55 | |
 |

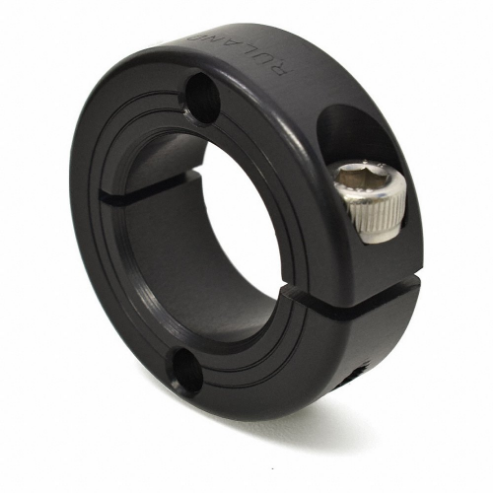

FHD-MCL-20E-AN | - | 54 mm | - | Stainless Steel | 59.2 mm | 1 1/4" | 21.49 mm | Bright | €108.94 | |
|
FHD-MCL-20E-SS | Stainless Steel | 54 mm | 1 1/4" | Stainless Steel | 59.2 mm | 1 1/4" | 21.49 mm | Bright | €106.73 | |
|
FHD-MCL-18E-F | Carbon Steel | 48 mm | 1 1/8" | Alloy Steel | 54.7 mm | 1 1/8" | 19 mm | Black Oxide | €45.58 | |
|
FHD-MCL-18E-SS | Stainless Steel | 48 mm | 1 1/8" | Stainless Steel | 54.7 mm | 1 1/8" | 19 mm | Bright | €107.91 |
