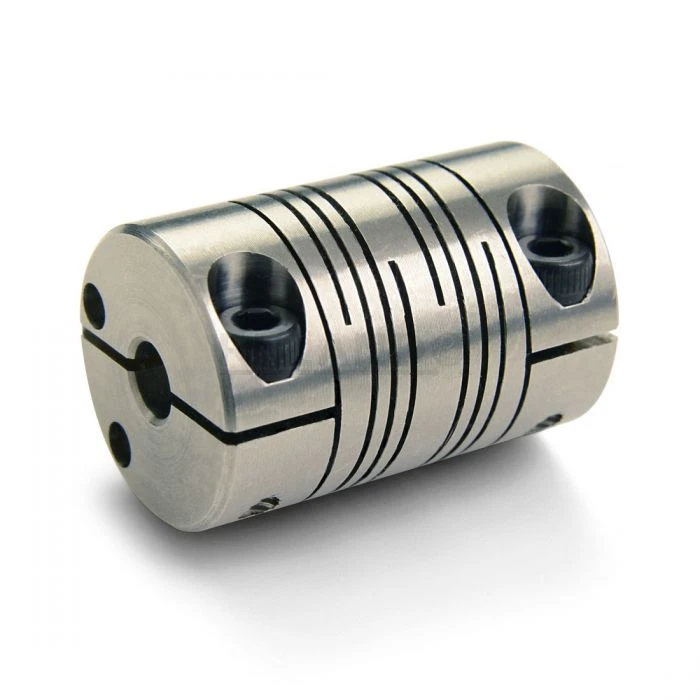

RULAND MANUFACTURING FCMR38-19-13-SS 19mm x 13mm Six Beam Coupling, SS, Clamp Style, 38.1mm OD, 57.2mm Lg.
Item: DK6KKJModel: FCMR38-19-13-SS
7 In Stock
19 mm x 13 mm
Stainless Steel
Ships within 2 days via
€374.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Angular Misalignment | 3° |
| Axial Motion | 0.38 mm |
| B1 Max Shaft Penetration | 27.3 mm |
| B2 Max Shaft Penetration | 27.3 mm |
| Balanced Design | Yes |
| Bore (b1) | 19 mm |
| Bore Tolerance | -0 mm to +0.025 mm |
| Cap Screw | M6 |
| Clearance Diameter (c) Max | 41.71 mm |
| Dynamic Torque Non-reversing | 8.21 N-m |
| Dynamic Torque Reversing | 4.11 N-m |
| Finish Specification | Bright, No Plating |
| Full Bearing Support Required | Yes |
| Hex Wrench Size | 5 mm |
| Length (l) | 57.2 mm |
| Material Specification | Type 303 Austenitic, Non-Magnetic Bar |
| Max. Speed | 6000 RPM |
| Moment Of Inertia | 83.407 x 10 |
| Number Of Screws | 2 EA |
| Nypatch Anti-vibration Hardware | Yes |
| Outer Diameter (od) | 38.1 mm |
| Parallel Misalignment | 0.76 mm |
| Recommended Hex Key | Metric Hex Keys |
| Recommended Shaft Tolerance | -0.013 mm to 0 mm |
| Screw Finish | Black Oxide |
| Screw Material | Alloy Steel |
| Seating Torque | 16 N-m |
| Small Bore (b2) | 13 mm |
| Static Torque | 16.42 N-m |
| Temperature | -40°F to 350°F |
| Torque Wrench | TW:BT-4C-3/8-140 |
| Torsional Stiffness | 20000 N-m/deg. |
| Zero-backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.33 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
Product Variants
| Model | Torsional Stiffness | Axial Motion | Parallel Misalignment | Overall Length | Different Bore Sizes | Coupling Material | Rated Torque | Moment Of Inertia | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| FCMR16-5-5-A | 0.31 N-m/deg. | 0.13 mm | 0.2 mm | 25.4 mm | No | Aluminum | 1.47 N-m | 0.00000038 kgf/sq. m | €95.56 | |
| FCMR16-5-5-SS | 1.28 N-m/deg. | 0.13 mm | 0.2 mm | 25.4 mm | No | Stainless Steel | 2.04 N-m | 0.000001097 kgf/sq. m | €236.85 | |
| FCMR16-6-5-A | 0.31 N-m/deg. | 0.13 mm | 0.2 mm | 25.4 mm | Yes | Aluminum | 1.47 N-m | 0.00000038 kgf/sq. m | €95.56 | |
| FCMR16-6-5-SS | 1.28 N-m/deg. | 0.13 mm | 0.2 mm | 25.4 mm | Yes | Stainless Steel | 2.04 N-m | 0.000001097 kgf/sq. m | €236.85 | |
| FCMR16-6-6-A | 0.31 N-m/deg. | 0.13 mm | 0.2 mm | 25.4 mm | No | Aluminum | 1.47 N-m | 0.00000038 kgf/sq. m | €95.56 | |
| FCMR16-6-6-SS | 1.28 N-m/deg. | 0.13 mm | 0.2 mm | 25.4 mm | No | Stainless Steel | 2.04 N-m | 0.000001097 kgf/sq. m | €236.85 | |
| FCMR19-5-5-SS | 1.43 N-m/deg. | 0.13 mm | 0.2 mm | 31.8 mm | No | Stainless Steel | 4.64 N-m | 0.000002964 kgf/sq. m | €223.31 |
