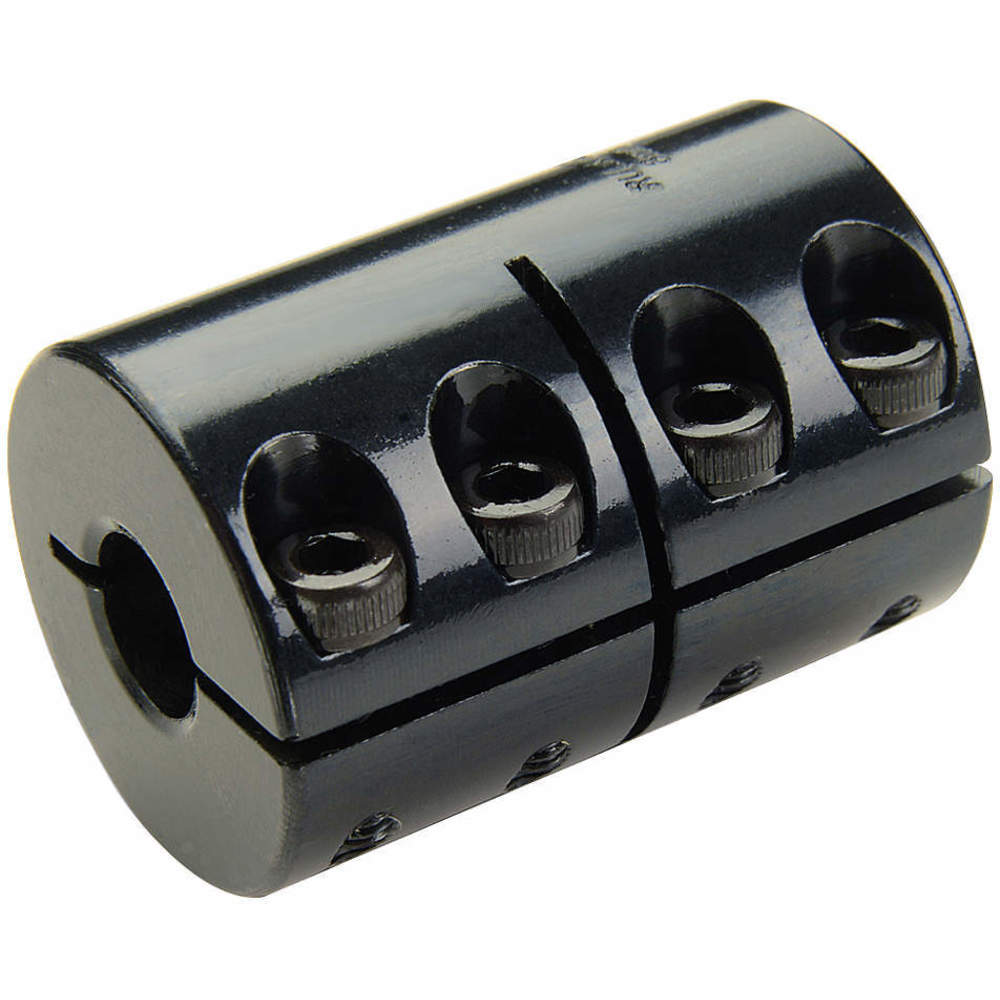

RULAND MANUFACTURING CLX-19-16-F 1-3/16 x 1 Inch Rigid Coupling, Black Oxide Steel, One-Piece Clamp Style, 2 1/16 Inch OD, 3 1/4 Inch Lg.
Item: AF9WVGModel: CLX-19-16-FCross Ref: 30VJ12
7 In Stock
1 3/16"
1"
Alloy Steel
1 3/16"
1 3/16"
Ships within 2 days via
10.00% off
€216.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rigid Shaft Coupling |
| Bore Diameter 1 | 1 3/16" |
| Bore Diameter 2 | 1" |
| Bore Tolerance | +0.0005" to +0.002" |
| Bore Type | Round |
| Clearance Dia. | 2.242" |
| Clearance Diameter | 2.24" |
| Coupling Construction | One-Piece |
| Coupling Material | Carbon Steel |
| Coupling Material Finish | Black Oxide |
| Coupling Material Grade | Grade 1215 |
| Coupling Outside Diameter | 2 1/16" |
| Different Bore Sizes | Yes |
| Fastener Tightening Torque | 170 lbs.-in. |
| Features | Precision Honed Bores, Vibration Resistant Screws |
| Grade | Grade 1215 |
| Included Screws | (4) Clamp Screws |
| Material | Lead Free Steel |
| Max. Rpm | 4000 RPM |
| Maximum Bore Diameter | 1 3/16" |
| Maximum Operating Temperature | 350°F |
| Minimum Operating Temperature | -40°F |
| Number Of Locking Screws | 4 |
| Outside Dia. | 2.062" |
| Overall Length | 3 1/4" |
| Rated Torque | 5000 lbs.-in. |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 0.807" |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Thread Size | 1/4"-28 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Type | One Piece Clamp |
| Zero Backlash | Yes |
Shipping Info:
| Ship weight (kg) | 0.94 |
| Ship height (cm) | 5.33 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 10.16 |
| HS code | 8483608000 |
| Country of Origin | US |
Product Variants
| Model | Clearance Dia. | Overall Length | Bore Diameter 1 | Bore Diameter 2 | Coupling Outside Diameter | Coupling Material | Screw Material | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CLX-5-5-F | 1.033" | 1 3/8" | 5/16" | 5/16" | 5/8" | Carbon Steel | Alloy Steel | Grade 1215 | €73.57 | |
| CLX-10-10-SS | 1.514" | 2" | 5/8" | 5/8" | 1 5/16" | Stainless Steel | Stainless Steel | Grade 303 | €201.41 | |
| CLX-10-8-F | 1.514" | 2" | 5/8" | 1/2" | 1 5/16" | Carbon Steel | Alloy Steel | Grade 1215 | €118.73 | |
| CLX-10-8-SS | 1.514" | 2" | 5/8" | 1/2" | 1 5/16" | Stainless Steel | Stainless Steel | Grade 303 | €232.31 | |
| CLX-12-10-F | 1.842" | 2 1/4" | 3/4" | 5/8" | 1 1/2" | Carbon Steel | Alloy Steel | Grade 1215 | €135.79 | |
| CLX-12-10-SS | 1.842" | 2 1/4" | 3/4" | 5/8" | 1 1/2" | Stainless Steel | Stainless Steel | Grade 303 | €271.49 | |
| CLX-12-12-F | 1.842" | 2 1/4" | 3/4" | 3/4" | 1 1/2" | Carbon Steel | Alloy Steel | Grade 1215 | €108.18 |
