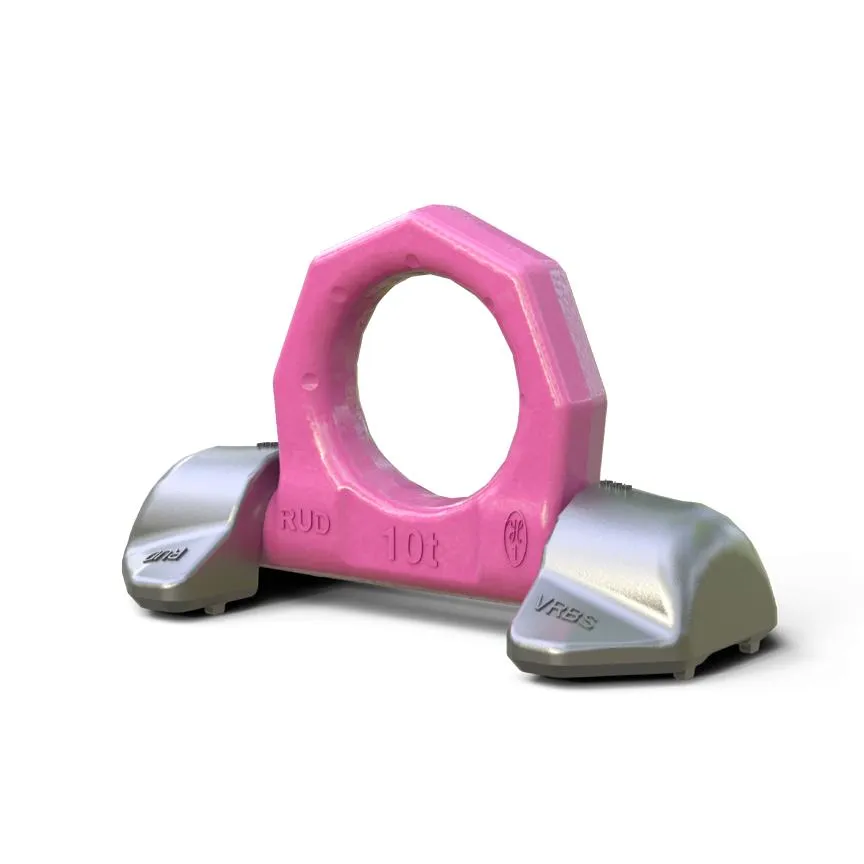

RUD CHAIN 7992490 VRBS-10t Load Ring, 10T Nominal Size, 95 mm Pitch, Load Capacity 22040 Lbs., Steel
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€390.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hoist Ring |
| Bail Dia. | 7/8" |
| Bail Dia. | 2-9/16" |
| Bail Inside Length | 2 5/8" |
| Bail Inside Width | 2 5/8" |
| Bail Thickness | 7/8" |
| Color | Pink |
| Finish | Powder Coated |
| Hoist Ring Type | Pivot |
| Load Capacity | 22040 lbs. |
| Material | Steel |
| Max. Operating Temp. | 752°F |
| Mfr. Series | VRBS Series |
| Min. Operating Temp. | -4°F |
| Mount Type | Weld On |
| Mounting Style | Weld On |
| Nominal Wll (kg) | 10000 Kg |
| Operation | Lifting |
| Overall Length | 7 3/4" |
| Overall Width | 4" |
| Pivot | 180 Degrees |
| Pivot | 180° |
| Pivot Angle | 180° |
| Product Datasheet | rud-chain-7992490.pdf |
| Standards | Din En Iso 12100 T1, Din En Iso 12100 T2, En 1677 |
| Swivel Angle | 0° |
| System Of Measurement | Imperial |
| Thread Size | Not Applicable |
| Working Load Limit | 22040 lbs. |
Shipping Info:
| Ship weight (kg) | 2.6 |
| Ship height (cm) | 16 |
| Ship length (cm) | 22 |
| Ship width (cm) | 37.31 |
| HS code | 8431310060 |
| Country of Origin | DE |
Documentation:
Product Variants
| Model | Material | Thread Size | System Of Measurement | Pivot | Swivel Angle | Finish | Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 7992488 | Steel | Not Applicable | Imperial | 180° | 0° | Powder Coated | 8820 lbs. | €165.45 | |
| 7992489 | Steel | Not Applicable | Imperial | - | 0° | Powder Coated | 14770 lbs. | €274.69 | |
| 7992491 | Steel | Not Applicable | - | 180° | 0° | Powder Coated | 35270 lbs. | €781.17 | |
| 60267 | - | - | - | - | - | - | - | €662.03 |
