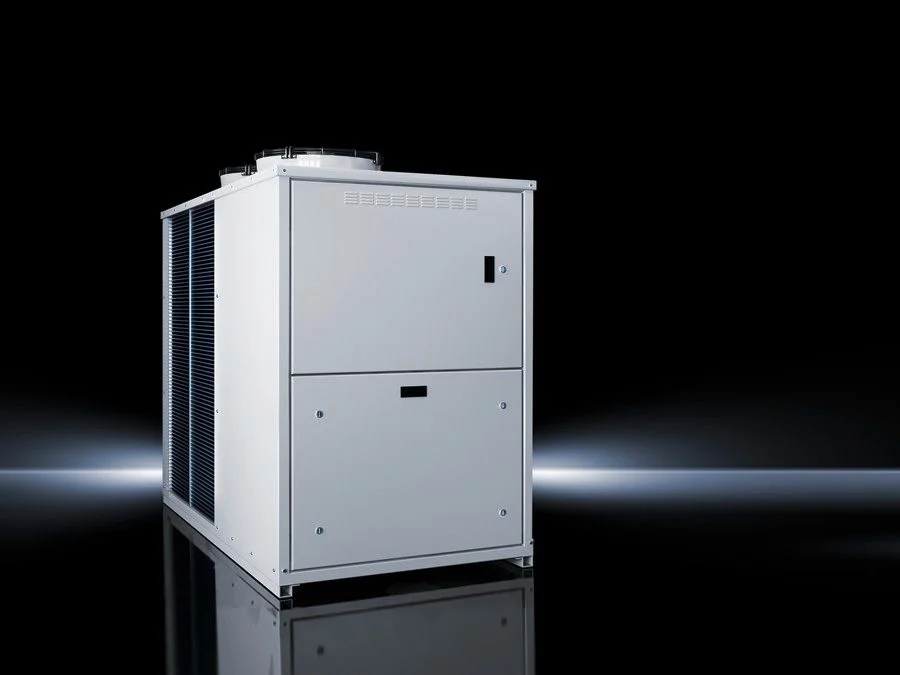

RITTAL SK 3232711 Chillers For It Cooling, 81891 Btu/H 400 V, 50 Hz, 810 X 1542 X 1800 Mm
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Chiller |
| Air Throughput (unimpeded Air Flow) | 6403.7 CFM @ 50 Hz |
| Applications | Especially For It Cooling Applications, Such As Lcp Crac |
| Color | RAL 7035 |
| Cooling Output (footnote) | Cooling Output Makes Allowance For 35% Glycol |
| Cooling Output Tw15 Tu35/50 Hz | 24 kW |
| Depth | 70.9" |
| Height | 60.7" |
| Max. Rated Amps | 25A @ 50 Hz |
| Monitoring | Monitoring Of All System Relevant Parameters, Such As Water Inlet, Refrigerant And Pump Parameters And Alarms, As Well As Optional Cooling Capacities And Energy Efficiency, Direct Connection Of The Unit Via Snmp/Modbus Using Ethernet, Integration Into Rizone |
| No. Of Cooling Circuits | 1 |
| Operating Temp. Range | -20°C to +43°C |
| Operating Temp. Range Of Cooling Medium | 5°C to 15°C |
| Operating Weight | 463 Kg |
| Options | Free Cooling May Be Integrated From 15 Kw. Please Follow The Instructions Buffer Store For Separate Siting Emergency Cooling With Mains Water Infeed |
| Permissible Operating Pressure (p. Max.) | 28 Bar |
| Pump Capacity (at 2.5 Bar/50 Hz) | 60 LPM |
| Pump Pressure | 2.5 Bar |
| Rated Operating Voltage | 400V @ 50 Hz |
| Rated Power Pel | 9.7 kW @ 50 Hz |
| Tank Insulation | 10 mm Condensate Insulation |
| Tank Material | Steel |
| Tank Volume | 48L |
| Water Connections | G 1 1/2" Internal Thread |
| Width | 31.9" |
Shipping Info:
| Ship height (cm) | 154.18 |
| Ship length (cm) | 180.09 |
| Ship width (cm) | 81.03 |
