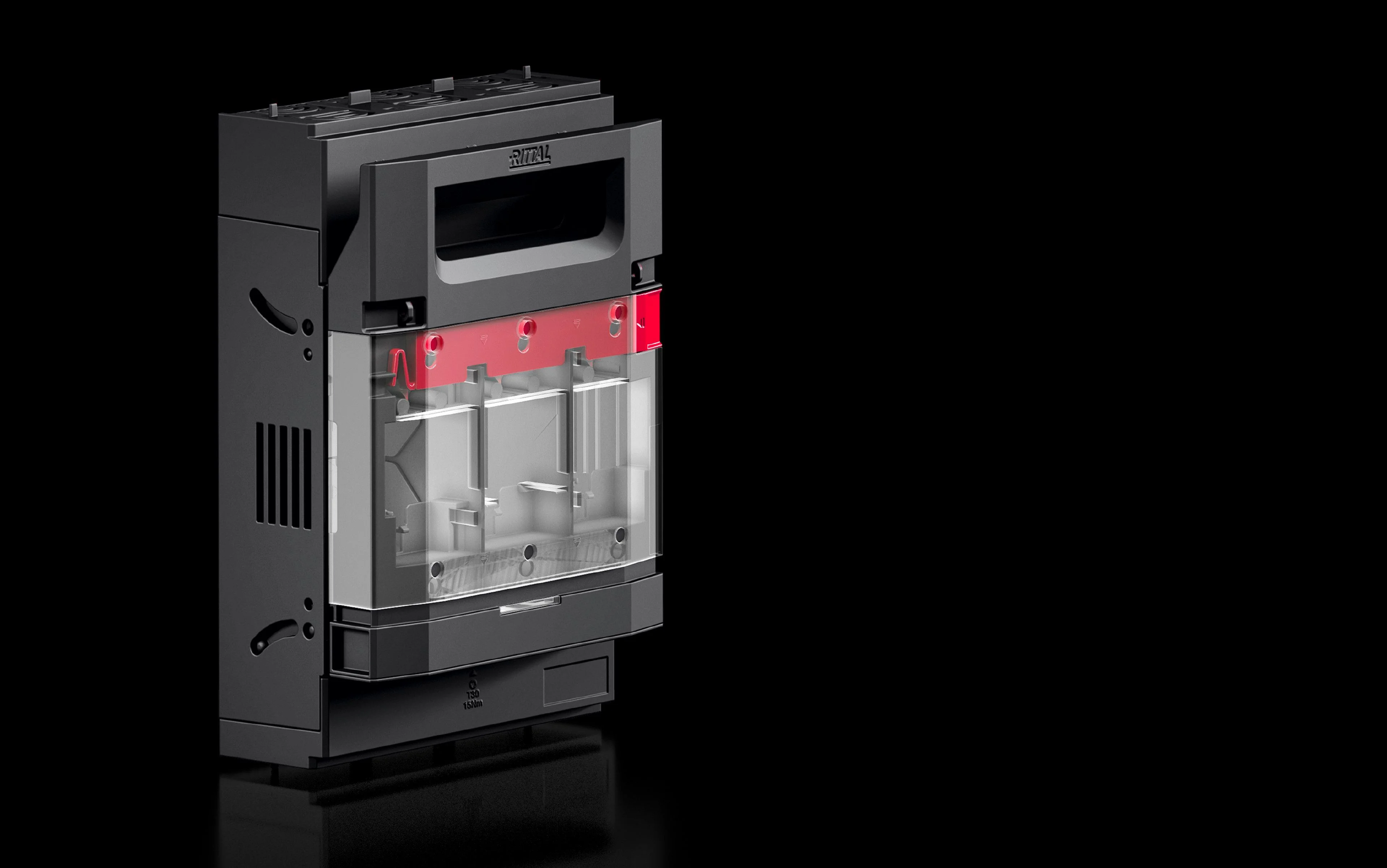

RITTAL RX 9363210 Fuse-Switch-Disconnector Size 2, 400 A, 3-Pole, M10 Screw, Mounting Plate Assembly
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Switch Disconnector |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 9005, RAL 35745 |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 1.32 Kg |
| Depth | 5.07" |
| Fire Load | 44 MJ/sq. mm |
| For Mounting Plate Assembly | Yes |
| For Nh Size | 2 |
| Height | 11 4/5" |
| Material | Polyamide (Pa 6) Fire Behavior Corresponding To UL 94 Contact Tracks: Electrolytic Copper, Silver-Plated |
| Max. Power Loss | 71 W |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +35°C |
| Rated Insulation Voltage | 1000 kV |
| Rated Operating Voltage | 690V AC |
| Screw Size | M10 |
| Storage Temp. | -25°C to +70°C |
| Width | 8.21" |
Shipping Info:
| Ship weight (kg) | 3.42 |
| Ship height (cm) | 29.97 |
| Ship length (cm) | 12.88 |
| Ship width (cm) | 20.85 |
