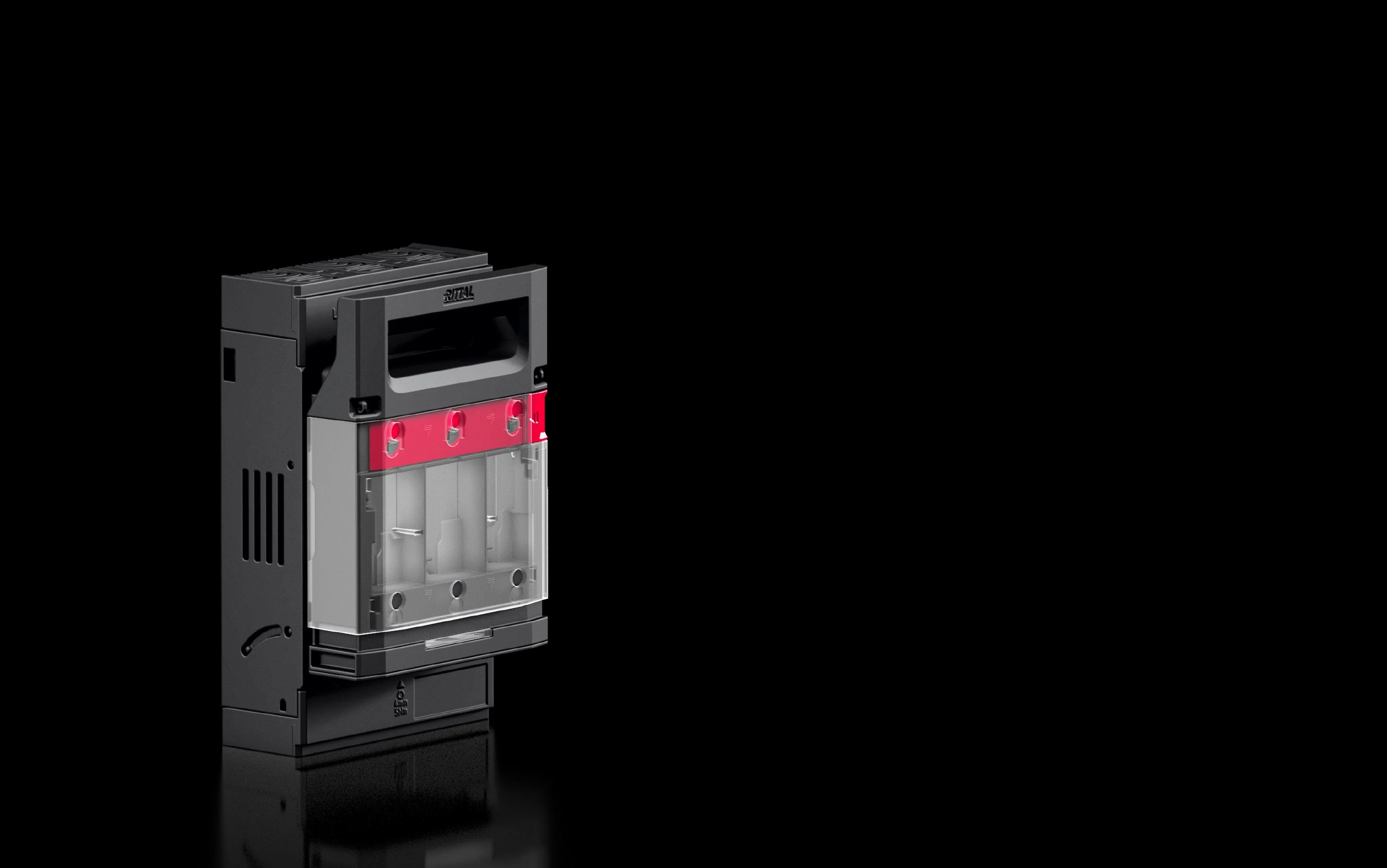

RITTAL RX 9363030 Fuse-Switch-Disconnector Size 00, 160 A, 3-Pole, Box Terminal, Mounting Plate Assembly
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Switch Disconnector |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 9005, RAL 35745 |
| Connection For Round Conductor | 1.5 sq. mm x 16 sq. mm |
| Connection Of Round Conductors, Fine Wire With Wire End Ferrule | 1.5 sq. mm to 95 sq. mm |
| Connection Of Round Conductors, Fine Wire Without Wire End Ferrule | 1.5 sq. mm to 95 sq. mm |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 0.268 Kg |
| Depth | 3.39" |
| Fire Load | 11.56 MJ/sq. m |
| For Mounting Plate Assembly | Yes |
| For Nh Size | 0 |
| Height | 7 16/25" |
| Material | Polyamide (Pa 6) Fire Behavior Corresponding To UL 94 Contact Tracks: Electrolytic Copper, Silver-Plated |
| Max. Heat Loss Per Fuse Insert | 12 W |
| Max. Power Loss | 16 W |
| Max. Rated Amps | 160A |
| Max. Rated Operating Current | 160A |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +35°C |
| Rated Insulation Voltage | 1000 kV |
| Rated Operating Voltage | 690V AC |
| Round Conductor Cross Section | 1.5 sq. mm to 16 sq. mm |
| Storage Temp. | -25°C to +70°C |
| Type Of Connection (electrical) | Box Terminal |
| Width | 4.17" |
Shipping Info:
| Ship weight (kg) | 0.82 |
| Ship height (cm) | 19.41 |
| Ship length (cm) | 8.61 |
| Ship width (cm) | 10.59 |
