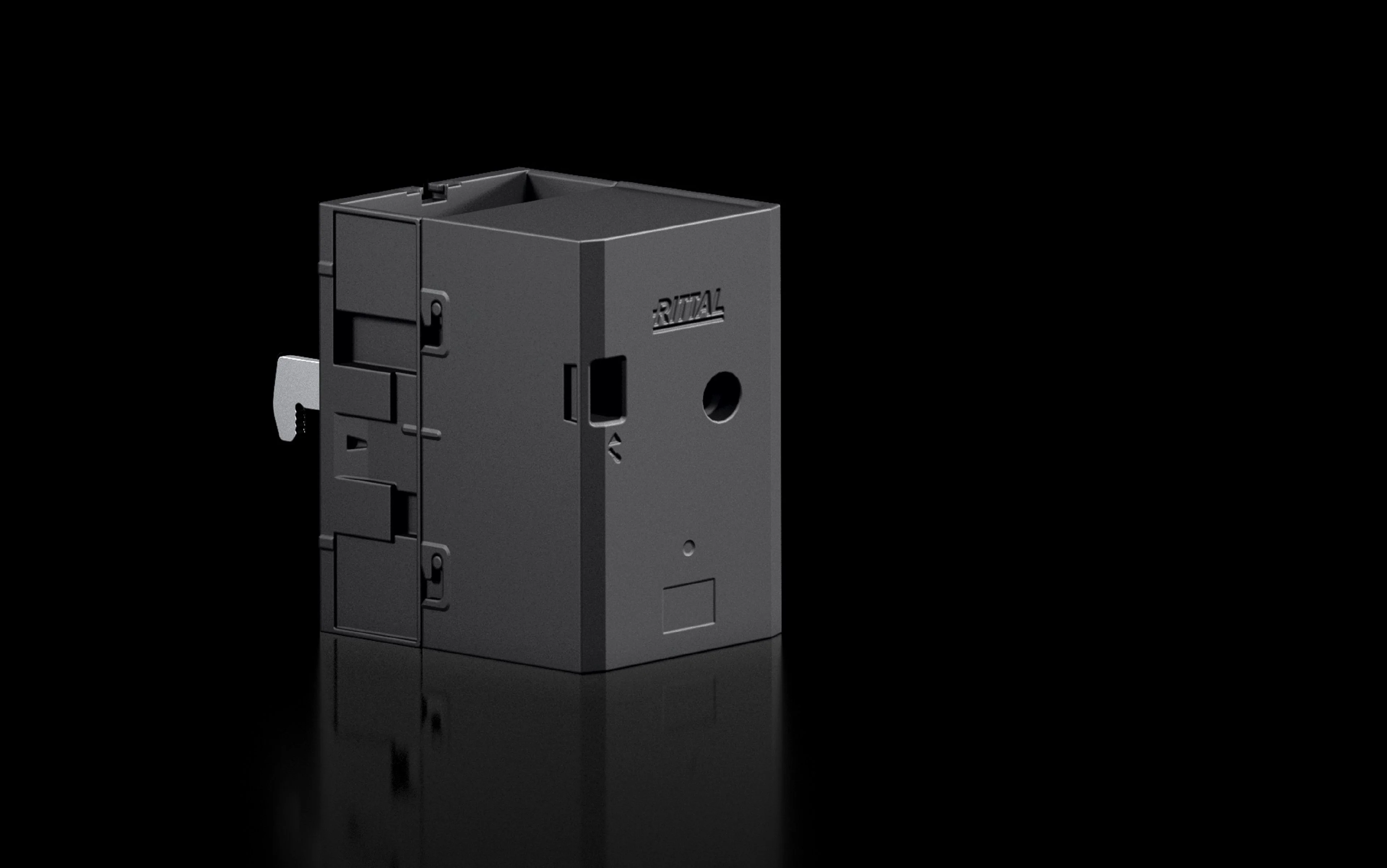

RITTAL RX 9361300 Connection Adapter 1-Pole, 72X120 Mm, Clamping Area 50X10 Mm
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Ambient Humidity (non Condensing) | 10% to 90% |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 9005 |
| Connection For Round Conductor | 50 sq. mm x 10 sq. mm |
| Contamination Level | 3 |
| Depth | 4.62" |
| Electrical Ul Ratings (sccr) | 52.5 Ka-600v, Rms, Unprotected, 100 Ka-480v, Circuit Breaker Max. 800 A, Divq/7100 Ka-600v, Fuse Class L Max. 2000 A, Jddz/7 |
| For Bar Systems With Center To Center Spacing | 60 mm |
| Grade | Grade PA6 |
| Height | 4.7" |
| Material | Polyamide |
| Max. Operating Air Humidity | 90% |
| Max. Rated Amps | 1500A |
| No. Of Connections | 2 |
| No. Of Poles | 1 |
| Operating Temp. Range | -5°C to +55°C |
| Rated Amps Laminated Copper Busbar | 1500A |
| Rated Amps Laminated Copper Busbar (ul) | 1380A |
| Rated Impulse Withstand Voltage Uimp | 12 kV |
| Rated Insulation Voltage | 1000V |
| Rated Voltage | 600/1000/1500V |
| Storage Temp. | -25°C to +75°C |
| Suitable For Busbar System | RiLineX', 'RiLine60 |
| Suitable For Busbars | 15 mm X 10 mm, 20 mm X 10 mm, 30 mm X 10 mm |
| Width | 2.85" |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 11.94 |
| Ship length (cm) | 11.73 |
| Ship width (cm) | 7.24 |
