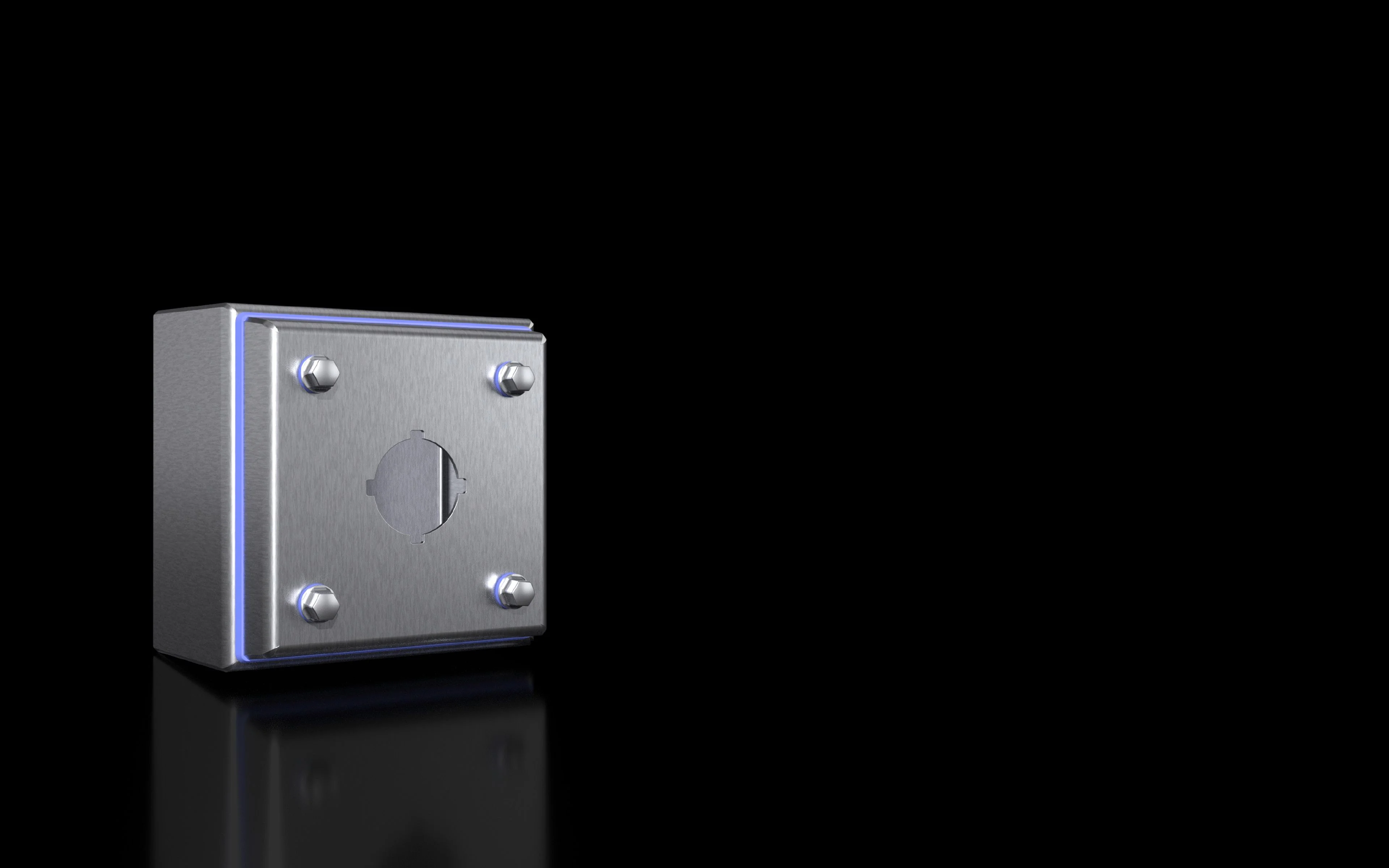

RITTAL HD 1681630 Push-Button Enclosure, 100X100X90 Mm, Stainless Steel, 1.4301, 1 Button Cutout, Ø 30.5 Mm
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Base Grade | Grade AISI 316L |
| Base Material | Stainless Steel |
| Breakout Dia. | 30.5 mm |
| Depth | 90 mm |
| Front Height | 100 mm |
| Front Width | 100 mm |
| Hole Pattern | 60 mm |
| Lock | Lock Version: Hygiene-Compliant Quick-Release Hexagon Fasteners NO. Of Locks: 4 |
| Material | Housing And Cover: Stainless Steel 1.4301 (Aisi 304), 1.5 Mm Screw Plug: Stainless Steel Seal: Silicone, Compliant With Fda Guideline 21 Cfr 177.2600 |
| No. Of Breakout | 1 |
| Rear Height | 122 mm |
| Rear Width | 122 mm |
| Surface Finish | Housing And Cover: Brushed, Grain 400, Peak To Valley Height Less than 0.8 µm Seal: Blue, Dyed (Ral 5010) |
| Type Rating According To Ul 50e | Type 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13 |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 10 |
| Ship length (cm) | 8.99 |
| Ship width (cm) | 10 |
