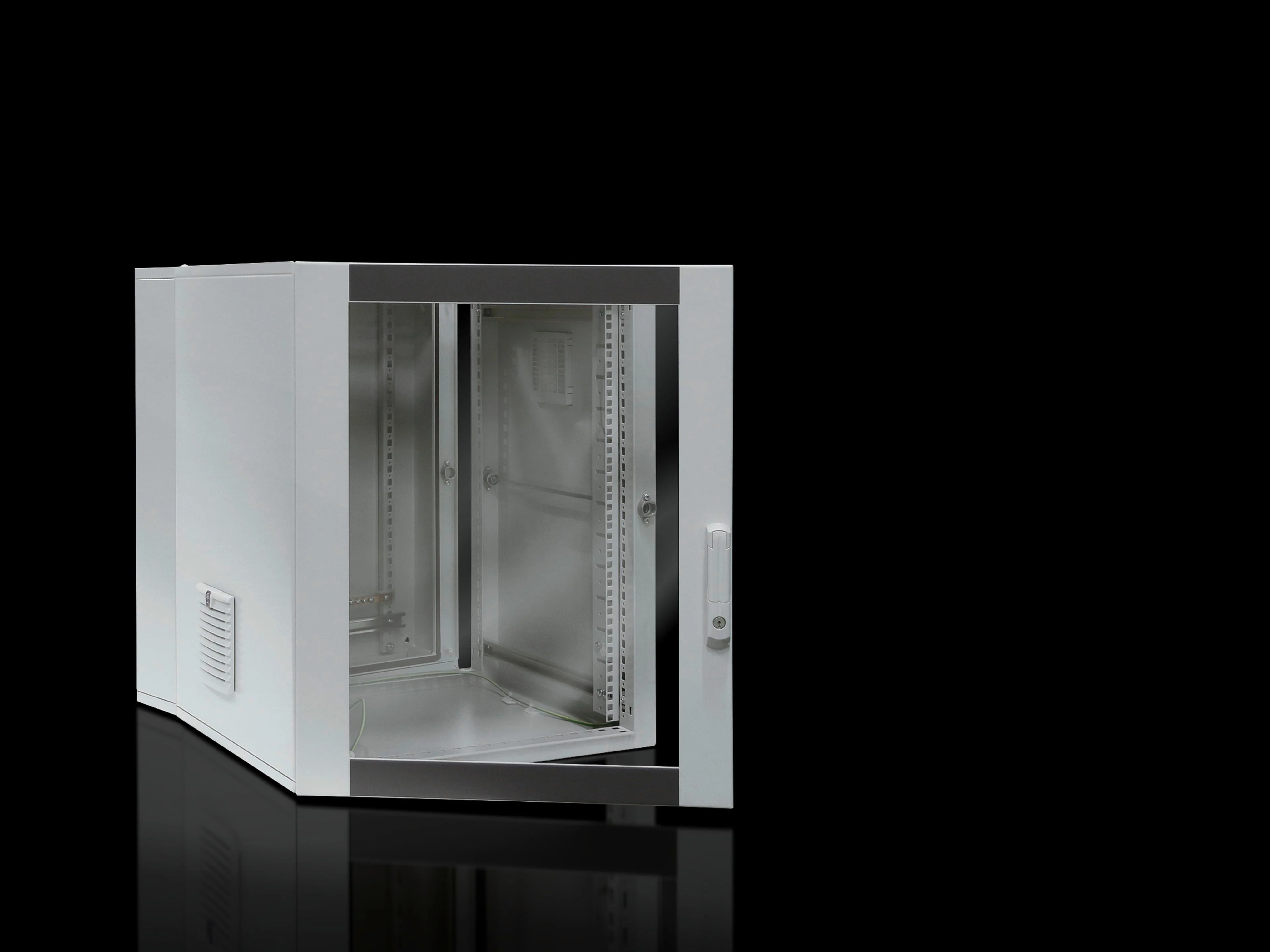

RITTAL DK 7715735 Wall-Mounted Enclosure, 3-Part, 600X746X573 Mm, 15 He, Pre-Mounted, Ip 54 With Closed Flange Plate At Top And Bottom
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Base Material | Carbon Steel |
| Clearance Height | 683 mm |
| Clearance Width | 502 mm |
| Depth | 22 3/5" |
| Depth Hinged Part | 416 mm |
| Depth Of Wall Section | 135 mm |
| General Color | RAL 7035 |
| Height | 29 2/5" |
| Height Units | 15 U |
| Installation Depth | 520 mm |
| Load Capacity Of Hinged Part (static) | 750N |
| Material | Wall And Hinged Part: Carbon Steel, 1.5 Mm Viewing Window: Single-Pane Safety Glass, 3 Mm |
| Surface Finish | Powder Coated |
| Viewing Door Color | Slate Gray |
| Wall And Hinge Color | Ral 7035 |
| Width | 23 3/5" |
Shipping Info:
| Ship weight (kg) | 44.55 |
| Ship height (cm) | 74.68 |
| Ship length (cm) | 57.4 |
| Ship width (cm) | 59.94 |
