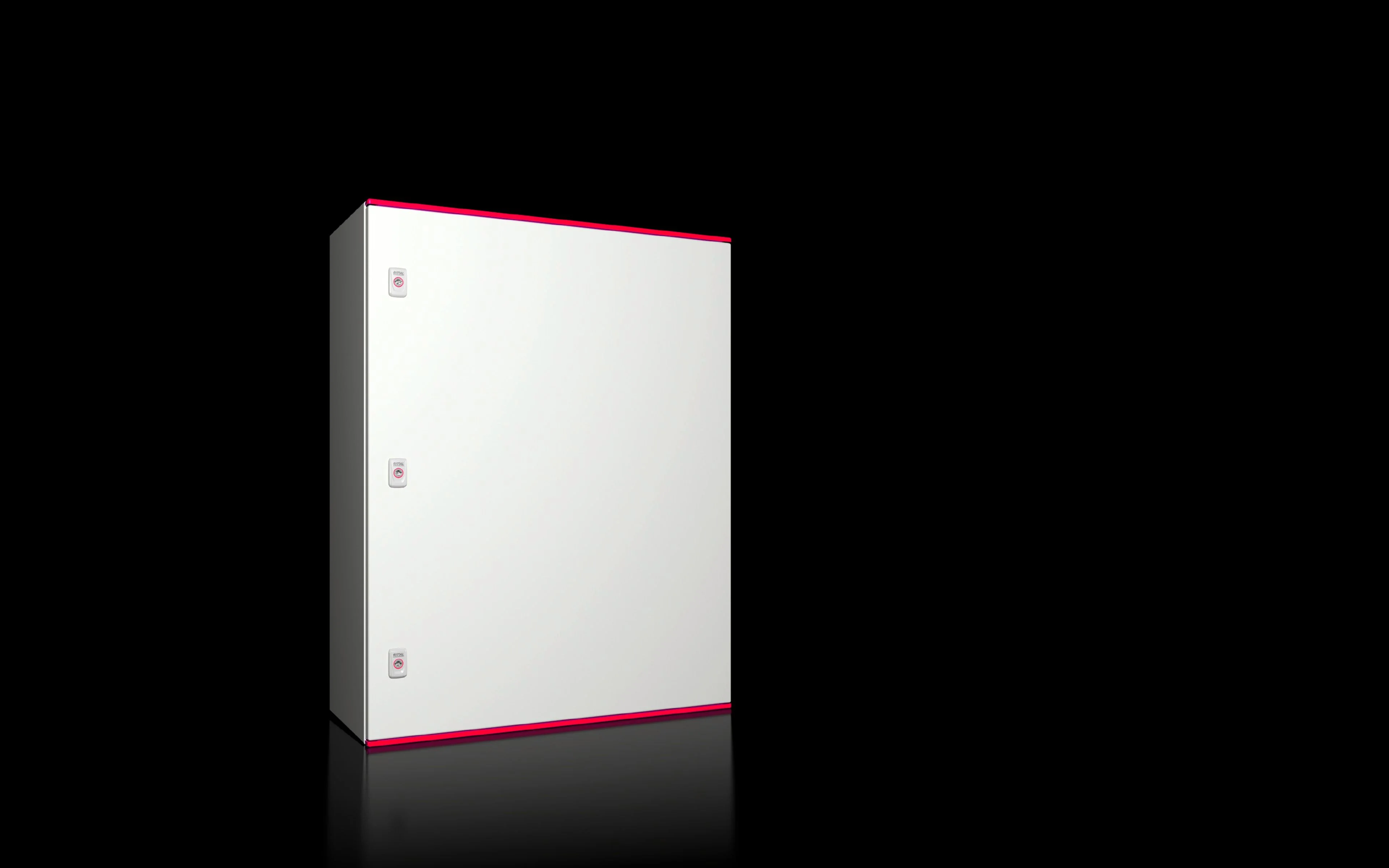

RITTAL AX 1480000 Plastic Enclosure, 800 X 1000 X 300 Mm, Without Viewing Window, Carbon Steel
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Base Material | Plastic |
| Color | Similar to RAL 7035 |
| Depth | 11 4/5" |
| Door Opening Angle | 130° |
| Height | 39 2/5" |
| Housing And Door Finish | Dyed Plastic With NO After Treatment |
| Material | Housing And Door: Fiberglass-Reinforced Unsaturated Polyester Door: All-Round Foamed-In Pu Seal Mounting Plate: Carbon Steel Fire Protection Corresponding To UL 94-V0 Halogen-Free |
| Mounting Panel Finish | Zinc Plated |
| Mounting Plate Height | 925 mm |
| Mounting Plate Thickness | 3 mm |
| Mounting Plate Width | 705 mm |
| Mounting Tip | Interior Installation Screws Are Required To Secure Components Inside The Enclosure, Components In The 25 mm Pitch Pattern Can Be Secured With The Universal Bracket, E.G. System Chassis |
| No. Of Locks | 3 |
| Type Rating According To Ul 50e | Type 1, Type 3R, Type 3RX, Type 4, Type 4X, Type 12 |
| Width | 31 1/2" |
Shipping Info:
| Ship weight (kg) | 38.29 |
| Ship height (cm) | 100.08 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 80.01 |
