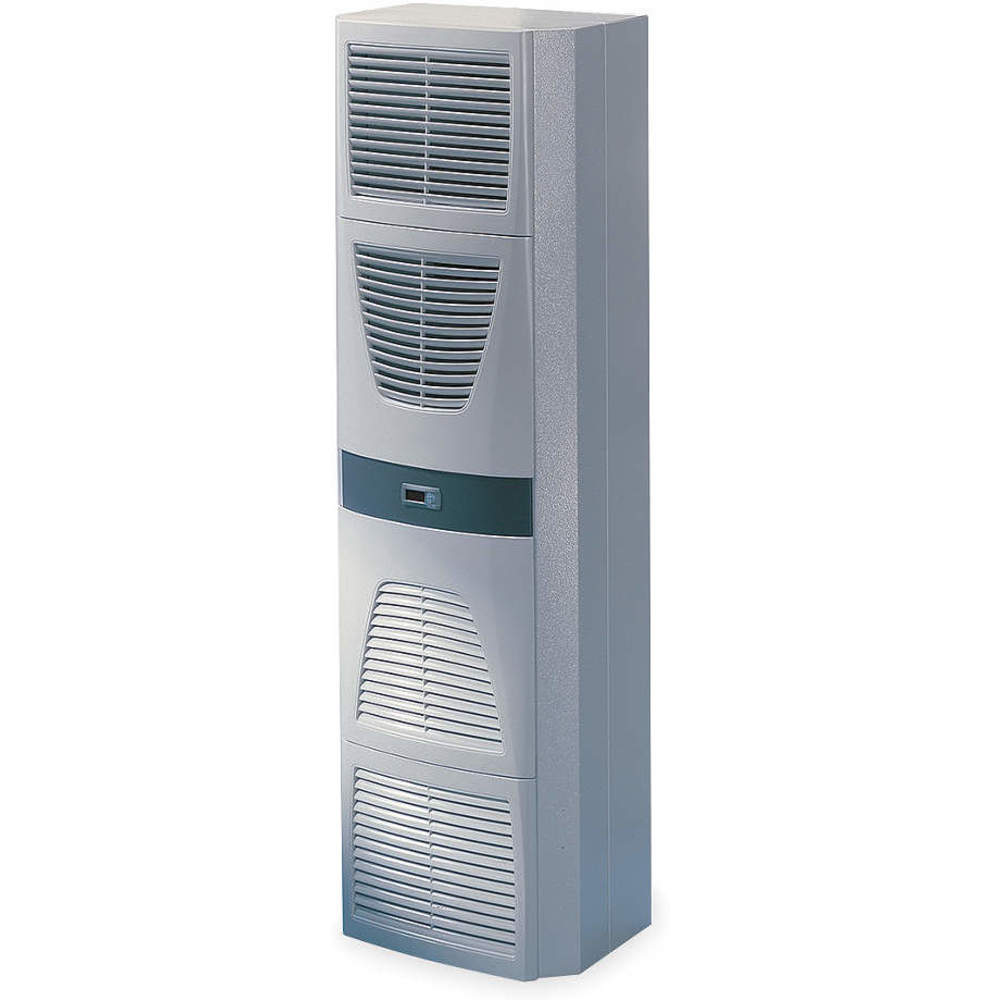

RITTAL 3329500 Enclosure Air Conditioner Btuh 9392 230 V
Get it by Monday, Dec 22
10.00% off
€7,597.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure Air Conditioner |
| Btuh | 9392 btuH |
| Control Type | Comfort Controller |
| Cooling Capacity | 9392 btuH |
| Cooling Method | Refrigerant |
| Cooling Setpoint - Maximum | 131°F |
| Cooling Setpoint - Minimum | 68°F |
| Current | 7.9/9.3A |
| Depth | 11" |
| Environment | Indoor Dust Tight |
| Height | 62" |
| Housing Color | Slate Gray |
| Housing Material | Sheet Steel |
| Hz | 50/60 Hz |
| Includes | Assembly Parts, Condenser With Hydrophobic Rinano Coating, Drilling Template |
| Maximum Cooling Capacity | 9247 btuh |
| Mounting | Wall |
| Mounting Type | Wall Mount |
| Nema Enclosure Rating | 12 |
| Nema Enclosure Type | NEMA 12 |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | 50°F |
| Operating Voltage | 230V |
| Operation Mode | Cooling Only |
| Overall Depth | 11.61" |
| Overall Height | 62.21" |
| Overall Width | 15 3/4" |
| Phase | Single |
| Power Consumption | 2.55 kW |
| Product Type | Cooling Unit |
| Refrigerant Type | R134A |
| Type | Wall Mount |
| Width | 16" |
| Wiring Method | Fully Wired |
Shipping Info:
| Ship weight (kg) | 286.65 |
| Ship height (cm) | 172.72 |
| Ship length (cm) | 69.85 |
| Ship width (cm) | 46.99 |
| HS code | 8415820105 |
| Country of Origin | DE |
Product Variants
| Product | Model | Cooling Capacity | Nema Enclosure Type | Housing Material | Phase | Depth | Mounting | Type | Btuh | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3302110 | 1093 btuH | NEMA 12 | Sheet Steel | Single | 6" | Wall | Wall Mount | 1093 btuH | €3,025.14 | |
|
3302100 | 1093 btuH | NEMA 12 | Sheet Steel | Single | 6" | Wall | Wall Mount | 1093 btuH | €2,830.55 | |
 |
3303510 | 2083 btuH | NEMA 12 | Sheet Steel | Single | 8" | Wall | Wall Mount | 2083 btuH | €3,953.49 | |
|
3303500 | 2083 btuH | NEMA 12 | Sheet Steel | Single | 8" | Wall | Wall Mount | 2083 btuH | €4,124.39 | |
 |
3361510 | 2664 btuH | NEMA 12 | Sheet Steel | Single | 11" | Wall | Wall Mount | 2664 btuH | €5,170.91 | |
|
3361500 | 2664 btuH | NEMA 12 | Sheet Steel | Single | 11" | Wall | Wall Mount | 2664 btuH | €5,170.91 | |
 |
3304510 | 3620 btuH | NEMA 12 | Sheet Steel | Single | 10" | Wall | Wall Mount | 3620 btuH | €4,690.01 |
